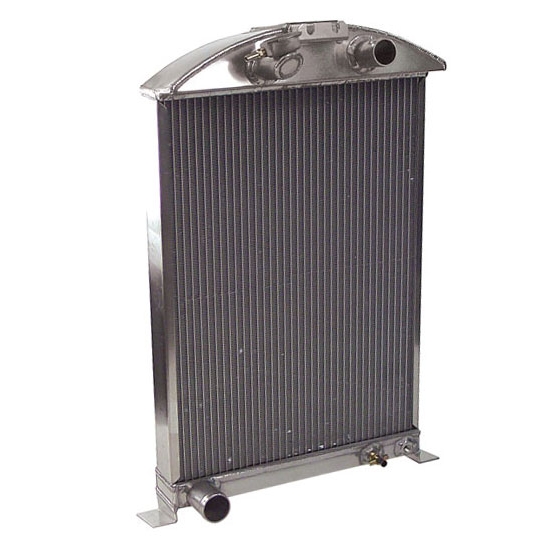

AFCO 1933-34 Ford Car Aluminum Radiator, Ford Engine

Name: AFCO 1933-34 Ford Car Aluminum Radiator, Ford Engine
Brand: AFCO
SKU: 10681146

Write a Review

Ask a Question

Finish:

Select a finish

Fan/shroud Finish:

Select a fan/shroud finish

Trans Cooler:

Select a trans cooler

Starting from

Factory Shipped

This item is currently not available

Shop all AFCO Direct Fit Aluminum Radiators

Product Summary

Single Pass Radiator Style, Aluminum, 2 Row Quantity

See more details

Key Specs

MFG. Part #	Select Fan/shroud Finish, Finish and Trans Cooler
Radiator Style	Single Pass
Radiator Flow Direction	Downflow
Material Type	Aluminum
Inlet Location	Upper passenger side

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Details

When it comes to the cooling performance of these radiators, they are second to none. AFCO Aluminum radiators allow your car to remain at a constant temperature, which means that power delivery is more consistent. The uniformity of an all-aluminum construction radiator allows for the best pound for pound heat transfer characteristics.

100% Aluminum construction (no epoxy)
Furnace brazed core
Tanks are made of .080” 3003 aluminum for strength and durability
TIG welded by skilled craftsmen
Factory pressure-tested
Filler necks feature screw-in bleed – won't crack or leak with age

NOTE: Due to the modified nature of these vehicles, some radiators will require a minimum of drilling, etc. to mount.

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

When selecting Finish and Fan Shroud Finish, here are the abbreviations:

Finish

S = Satin
B = Black
P = Polished

Fan Shroud Finish

NA = No Fan and Shroud
SS = Single Fan, Satin
SP = Single Fan, Polished
SB = Single Fan, Black

Charts

Instructions (PDF)

Guides & Documents

Radiators Installation Instructions (10681146)

Warranty Information

Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

CA Prop 65

Specifications

KEY SPECS
MFG. Part #	Select Fan/shroud Finish, Finish and Trans Cooler to see
Brand	AFCO
Radiator Style	Single Pass
Radiator Flow Direction	Downflow
Material Type	Aluminum
Inlet Location	Upper passenger side
Outlet Location	Lower driver side
Row Quantity	2
Tube Size	1.00"
Overall Width Range	17.00" to 17.99"
Overall Width	17"
Overall Height Range	29.00" to 29.99"
Overall Height	Select Fan/shroud Finish, Finish and Trans Cooler to see
Overall Thickness	5.56"
Core Width Range	17.00" to 17.99"
Core Width	17"
Core Height Range	Select Fan/shroud Finish, Finish and Trans Cooler to see
Core Height	Select Fan/shroud Finish, Finish and Trans Cooler to see
Core Thickness	2.25"
Finish	Select Fan/shroud Finish, Finish and Trans Cooler to see
Cooling Fan	Select Fan/shroud Finish, Finish and Trans Cooler to see
Transmission Cooler	Select Fan/shroud Finish, Finish and Trans Cooler to see
Shroud Included	Select Fan/shroud Finish, Finish and Trans Cooler to see
Inlet Size	Select Fan/shroud Finish, Finish and Trans Cooler to see

GENERAL
Sold in Quantity	Each
Amperage	17.7 amps
Shroud finish	Select Fan/shroud Finish, Finish and Trans Cooler to see
Color	Black
Fan Included	Select Fan/shroud Finish, Finish and Trans Cooler to see
Fan Diameter	16 Inch
CFM	2170 CFM
Blade Material	Plastic
Shroud Color	Select Fan/shroud Finish, Finish and Trans Cooler to see
CFM Range	2,100-2,199 CFM
