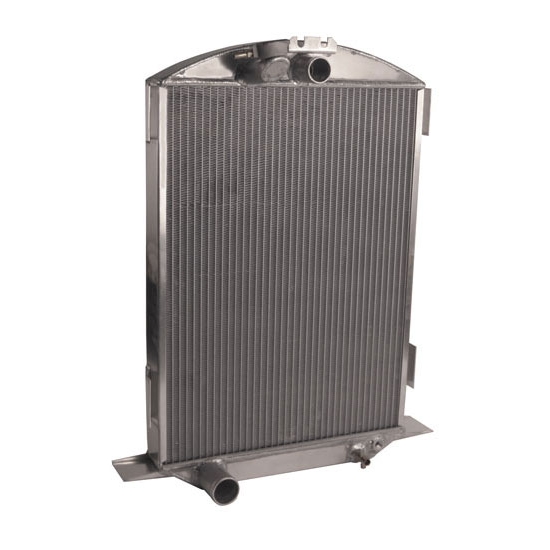

When it comes to the cooling performance of these radiators, they are second to none. AFCO Aluminum radiators allow your car to remain at a constant temperature, which means that power delivery is more consistent. The uniformity of an all-aluminum construction radiator allows for the best pound for pound heat transfer characteristics.

Grille shell mounting tabs are 16” center to center and each tab is 3” tall (this allows for various shell manufacturers dimensions)
Width @ Mounting Tabs: 17-7/8” (side to side)
Base mount flanges are 21 ¾” side to side
100% Aluminum construction (no epoxy)
Furnace brazed core
Tanks are made of .080” 3003 aluminum for strength and durability
TIG welded by skilled craftsmen
Factory pressure-tested
Filler necks feature screw-in bleed – won't crack or leak with age

NOTE: Due to the modified nature of these vehicles, some radiators will require a minimum of drilling, etc. to mount.

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

When selecting Finish and Fan Shroud Finish, here are the abbreviations:

Finish

S = Satin
B = Black
P = Polished

Fan Shroud Finish

NA = No Fan and Shroud
SS = Single Fan, Satin
SP = Single Fan, Polished
SB = Single Fan, Black
DS = Dual Fan, Satin
DP = Dual Fan, Polished
DB = Dual Fan, BlackWhen selecting Finish and Fan Shroud Finish, here are the abbreviations:

Finish

S = Satin
B = Black
P = Polished

Fan Shroud Finish

NA = No Fan and Shroud
SS = Single Fan, Satin
SP = Single Fan, Polished
SB = Single Fan, Black
DS = Dual Fan, Satin
DP = Dual Fan, Polished
DB = Dual Fan, Black

Charts

1932 Ford Aluminum Radiator Installation Instructions (PDF)

Specs

Guides & Documents

Radiators Installation Instructions (10681145)

Single Pass, Double Pass, Triple Pass Radiators; What’s The Difference?

How To Choose A Radiator For Your Car

Warranty Information

Click for details

Speedway Motors cannot facilitate the return of defective Afco products as they have requested to handle these directly with the consumer. For defective product support and Return Authorization, please contact Afco at +1 (800)-632-2320.

CA Prop 65

Specifications

KEY SPECS
MFG. Part #	Select Trans Cooler, Fan/shroud Finish and Finish to see
Brand	AFCO
Radiator Style	Single Pass
Radiator Flow Direction	Downflow
Material Type	Aluminum
Inlet Location	Center
Outlet Location	Lower driver side
Row Quantity	Select Trans Cooler, Fan/shroud Finish and Finish to see
Tube Size	1.00"
Overall Width Range	16.00" to 16.99"
Overall Width	16.88"
Overall Height Range	27.00" to 27.99"
Overall Height	27"
Overall Thickness	Select Trans Cooler, Fan/shroud Finish and Finish to see
Core Width Range	16.00" to 16.99"
Core Width	16.5"
Core Height Range	22.00" to 22.99"
Core Height	22.25"
Core Thickness	2.25"
Finish	Select Trans Cooler, Fan/shroud Finish and Finish to see
Cooling Fan	Select Trans Cooler, Fan/shroud Finish and Finish to see
Transmission Cooler	Select Trans Cooler, Fan/shroud Finish and Finish to see
Shroud Included	Select Trans Cooler, Fan/shroud Finish and Finish to see
Inlet Size	Select Trans Cooler, Fan/shroud Finish and Finish to see

GENERAL
Filler Neck Height	2.38"
Amperage	17.7 amps
Shroud finish	Select Trans Cooler, Fan/shroud Finish and Finish to see
Color	Black
Fan Included	Select Trans Cooler, Fan/shroud Finish and Finish to see
Fan Diameter	16 Inch
CFM	2170 CFM
Blade Material	Plastic
Shroud Color	Select Trans Cooler, Fan/shroud Finish and Finish to see
CFM Range	2,100-2,199 CFM
Notes	Select Trans Cooler, Fan/shroud Finish and Finish to see
Sold in Quantity	Each
