Key Specs

Radiator StyleSingle Pass
Radiator Flow DirectionDownflow
Material TypeAluminum
Inlet LocationCenter
Outlet LocationLower passenger side

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

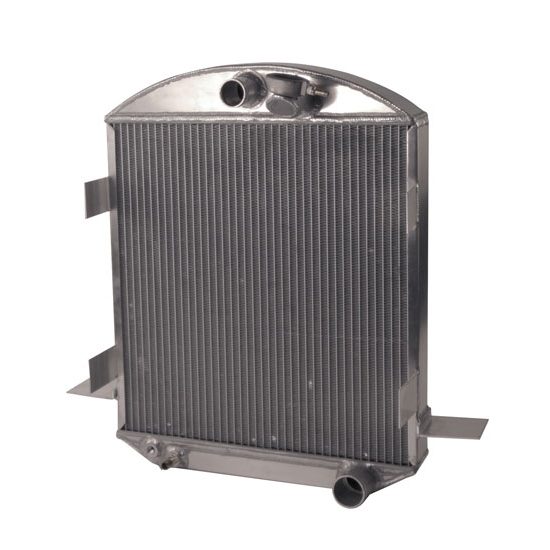

When it comes to the cooling performance of these radiators, they are second to none. AFCO Aluminum radiators allow your car to remain at a constant temperature, which means that power delivery is more consistent. The uniformity of an all-aluminum construction radiator allows for the best pound for pound heat transfer characteristics.

  • Grille shell mounting tabs are 16” center to center and each tab is 3” tall (this allows for various shell manufacturers dimensions)
  • Width @ Mounting Tabs:  17-7/8” (side to side)
  • Base mount flanges are 21 ¾” side to side
  • Fill neck is on passenger side
  • 100% Aluminum construction (no epoxy)
  • Furnace brazed core
  • Tanks are made of .080” 3003 aluminum for strength and durability
  • TIG welded by skilled craftsmen in the USA
  • Factory pressure-tested
  • Filler necks feature screw-in bleed – won't crack or leak with age

NOTE: Due to the modified nature of these vehicles, some radiators will require a minimum of drilling, etc. to mount.

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance

When selecting Finish and Fan Shroud Finish, here are the abbreviations:

Finish

S = Satin
B = Black
P = Polished

Fan Shroud Finish

NA = No Fan and Shroud
SS = Single Fan, Satin
SP = Single Fan, Polished
SB = Single Fan, Black
DS = Dual Fan, Satin
DP = Dual Fan, Polished
DB = Dual Fan, BlackWhen selecting Finish and Fan Shroud Finish, here are the abbreviations:

Finish

S = Satin
B = Black
P = Polished

Fan Shroud Finish

NA = No Fan and Shroud
SS = Single Fan, Satin
SP = Single Fan, Polished
SB = Single Fan, Black
DS = Dual Fan, Satin
DP = Dual Fan, Polished
DB = Dual Fan, Black

Charts

Specs


Specifications

KEY SPECS
MFG. Part #
BrandAFCO
Radiator StyleSingle Pass
Radiator Flow DirectionDownflow
Material TypeAluminum
Inlet LocationCenter
Outlet LocationLower passenger side
Row Quantity2
Tube Size1.00"
Overall Width Range17.00" to 17.99"
Overall Width17.68"
Overall Height Range23.00" to 23.99"
Overall Height23"
Overall Thickness
Core Width Range17.00" to 17.99"
Core Width17.25"
Core Height Range18.00" to 18.99"
Core Height18"
Core Thickness2.25"
Finish
Cooling Fan
Transmission CoolerNo
Shroud Included
Fan Diameter16 Inch
CFM2170 CFM
CFM Range2,100-2,199 CFM
GENERAL
Filler Neck Height2.5"
Inlet Size1.50
Amperage17.7 amps
Shroud finish
ColorBlack
Fan Included
Blade MaterialPlastic
Shroud ColorBlack
Notes1/4" NPT fitting for drain plug. 3.00" wide mounting tabs on both sides. 3.00" deep mounting tabs on both sides.
Sold in QuantityEach
