Product Summary

Universal Fit, 2.88" Overall Height, O-Rings Included

    See more details

    Key Specs

    MFG. Part #150630
    BrandAccel
    Injector Plug StyleEV1/Jetronic/Minitimer
    See more specs

    Need To Know

    Quick and Easy Returns

    Return Policy

    Accel 150630 Details

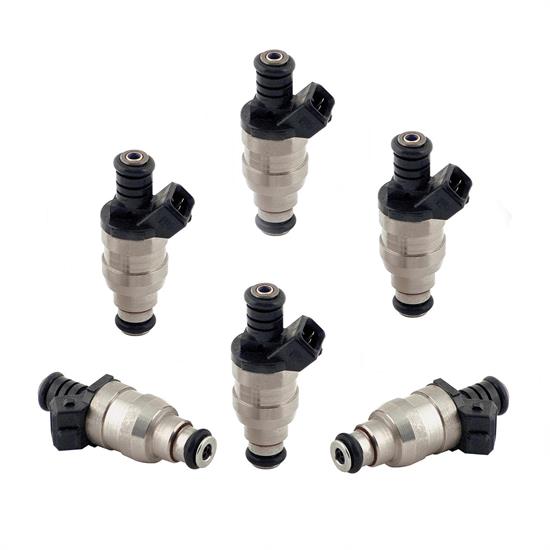

    These ACCEL high impedance fuel injectors have a flow rate of 30 lb/hr and are EV1 Minitimer style.

    • Provides precise control of fuel delivery & atomization for increased power, improved throttle response, & better fuel economy
    • All new units; not modified stock units or remanufactured from used cores
    • New low-mass disc design ensures accurate metering control even at ultra-low & high duty cycles

    Charts

    CARB Warning

    For race/ off road use or for use on pre-1966 vehicles.

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

    Accel 150630 Specifications

    KEY SPECS
    MFG. Part #150630
    BrandAccel
    Injector Plug StyleEV1/Jetronic/Minitimer
    GENERAL
    Overall Height2.88"
    Outside Diameter0.943"
    Wiring Harness IncludedNo
    Fuel Rail O-Ring Outside Diameter0.574"
    Manifold O-Ring Outside Diameter0.573"
    Seat to Seat Height2.27"
    Driver Type12V saturated circuit
    Injector ImpedenceHigh
    Injector Impedance - Ohms14.5 ohms
    Injector Advertised Flow Rate30 lbs./hr.
    GTIN Code743047800249
    Sold in QuantitySet
    O-Rings IncludedYes

    Questions & Answers

    Fitment

    • 231 Buick Odd Fire V6

    • 231 Buick Odd Fire V6

    • Buick 231

    • Buick 231

    • 231 Buick Odd Fire V6

    • 231 Buick Odd Fire V6

    • Buick 231

    • Buick 231

    • 231 Buick Odd Fire V6

    • 231 Buick Odd Fire V6

    • Buick 231

    • Buick 231

    • Buick 231

    • 231 Buick Odd Fire V6

    • 231 Buick Odd Fire V6

    • Buick 231

    • Buick 231

    • 231 Buick Odd Fire V6

    • 231 Buick Odd Fire V6

    • Buick 231

    • Buick 231

    • Gen 1 LB1 90-Degree Chevy

    • Gen 1 LB1 90-Degree Chevy

    • Gen 1 LB1 90-Degree Chevy

    • Gen 1 LB1 90-Degree Chevy

    • Gen 1 LB1 90-Degree Chevy

    • Gen 1 LB1 90-Degree Chevy

    • Gen 1 LB1 90-Degree Chevy

    • Gen 1 LB1 90-Degree Chevy

    • Gen 1 LB1 90-Degree Chevy

    • GM LA1 3.4

    • Gen 1 LB1 90-Degree Chevy

    • Gen 1 LB1 90-Degree Chevy

    • GM LQ1 3.4

    • Gen 1 LB1 90-Degree Chevy

    • GM LQ1 3.4

    • GM LA1 3.4

    • Ford 3.8 Essex V6

    • Ford 3.8 Essex V6

    • Ford 3.8 Essex V6

    • Ford 3.8 Essex V6

    • Ford 3.8 Essex V6

    • Ford 3.8 Essex V6

    • Gen 1 LB1 90-Degree Chevy

    • Gen 1 LB1 90-Degree Chevy

    • Gen 1 LB1 90-Degree Chevy

    • Gen 1 LB1 90-Degree Chevy

    • Gen 1 LB1 90-Degree Chevy

    • Ford 3.8 Essex V6

    • Ford 3.8 Essex V6

    • Ford 3.8 Essex V6

    • Ford 3.8 Essex V6

    • 231 Buick Odd Fire V6
