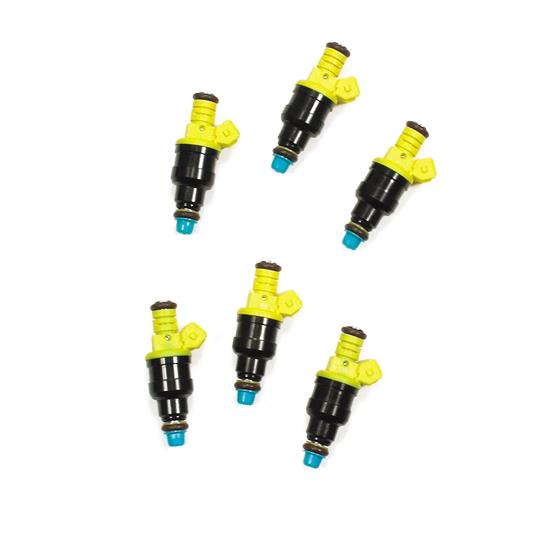

ACCEL 150615 Fuel Injectors, 15 lb/hr, High Impedance, 6 Pack
$499.95
/set
Factory Shipped
$546.95
Save $47.00
Quantity
Need Help? Call to Order
Add to a list
Share
Select an engine to verify Fitment
Select Engine
-8%
-8%
|
#105150615
$499.95
/set
Factory Shipped
$546.95
Save $47.00
Quantity
Need Help? Call to Order
Add to a list
Select an engine to verify Fitment
Select Engine
Need help?
855.313.9176Quick and Easy Returns
Return PolicyThese ACCEL high impedance fuel injectors have a flow rate of 15 lb/hr and are EV1 Minitimer style.
Charts
Guides & Documents
CA WARNING:
Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | 150615 |
| Brand | Accel |
| Injector Plug Style | EV1/Jetronic/Minitimer |
| GENERAL | |
| Overall Height | 2.88" |
| Outside Diameter | 0.943" |
| Wiring Harness Included | No |
| Fuel Rail O-Ring Outside Diameter | 0.574" |
| Manifold O-Ring Outside Diameter | 0.573" |
| Seat to Seat Height | 2.27" |
| Driver Type | 12V saturated circuit |
| Injector Impedence | High |
| Injector Impedance - Ohms | 14.5 ohms |
| Injector Advertised Flow Rate | 15 lbs./hr. |
| GTIN Code | 743047800171 |
| Sold in Quantity | Set |
| O-Rings Included | Yes |
Be the first to ask a question.
1982-1984 Chevy Camaro
GM LC1 2.8
1985-1989 Chevy Camaro
GM LB8 2.8
1990-1992 Chevy Camaro
Gen 1 2.8 LH0
GM LH0 3.1
1993 Chevy Camaro
Gen 1 2.8 LH0
1988-1989 Chevy Cavalier
GM LB6 2.8
1990-1994 Chevy Cavalier
GM LH0 3.1
2000-2005 Chevy Impala
GM LA1 3.4
1990 Chevy Lumina
GM LH0 3.1
1991-1994 Chevy Lumina
GM LH0 3.1
GM LQ1 3.4
1995-1997 Chevy Lumina
GM L82 3.1
GM LQ1 3.4
1998-1999 Chevy Lumina
GM L82 3.1
2000-2001 Chevy Lumina
GM LH0 3.1
1995-1997 Chevy Monte Carlo
GM L82 3.1
GM LQ1 3.4
1998-1999 Chevy Monte Carlo
GM L82 3.1
2000-2005 Chevy Monte Carlo
GM LA1 3.4
1982-1985 Chevy S10
GM LR2 2.8
1986-1993 Chevy S10
GM LL2 2.8
1983-1986 Chevy S10 Blazer
GM LR2 2.8
1987-1993 Chevy S10 Blazer
GM LL2 2.8
1986-1990 Ford Bronco II
2.9 Ford Cologne V6
1982-1983 Ford F-100
Ford 3.8 Essex V6
1982 Ford Granada
Ford 3.8 Essex V6
1983-1986 Ford LTD
Ford 3.8 Essex V6
1983-1986 Ford Mustang
Ford 3.8 Essex V6
1994-2004 Ford Mustang
Ford 3.8 Essex V6
1986-1992 Ford Ranger
2.9 Ford Cologne V6
1982-1997 Ford Thunderbird
Ford 3.8 Essex V6
1985 GMC Jimmy
GM LR2 2.8
1991-1993 GMC Jimmy
GM LL2 2.8
1982 GMC S15
GM LR2 2.8
1986 GMC S15
GM LR2 2.8
1987-1990 GMC S15
GM LL2 2.8
1985 GMC S15 Jimmy
GM LR2 2.8
1986 GMC S15 Jimmy
GM LL2 2.8
1988-1990 GMC S15 Jimmy
GM LL2 2.8
1991-1993 GMC Sonoma
GM LL2 2.8
1984-1986 Jeep Cherokee
GM LR2 2.8
1982 Lincoln Continental
Ford 3.8 Essex V6
1983-1986 Mercury Capri
Ford 3.8 Essex V6
1982-1997 Mercury Cougar
Ford 3.8 Essex V6
1983-1986 Mercury Marquis
Ford 3.8 Essex V6
1985-1988 Pontiac Fiero
GM L44 2.8
1985 Pontiac Firebird
GM LB8 2.8
1997-1999 Pontiac Grand Prix
GM L82 3.1
2000-2003 Pontiac Grand Prix
GM LG8 3.1
1980-1984 Pontiac Phoenix
GM LE2 2.8
