1997-2015 GM LS Engines

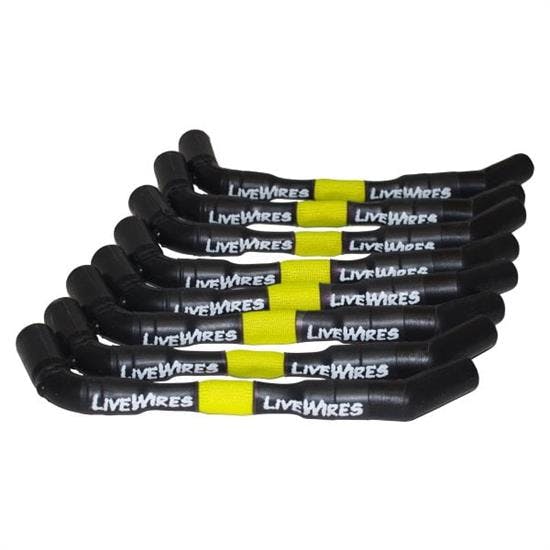

Performance Distributors LiveWires® are a high quality, low resistance set of spark plug wires designed to deliver all of the spark energy from the coil to the plugs. LiveWires are built with a high temperature sleeve that protects the plug wire from the extreme under hood temperatures. The sleeving is made from a non-flammable heat treated glass braid, much like the type that is used on today’s ovens. This unique sleeving provides heat protection up to +1400° F and offers excellent resistance to moisture and chemicals. Inside this high temperature sleeve is an 8mm spiral core wire with a durable and lasting silicone jacket. The spiral core consists of a stainless steel wire wrapped around a magnetic core. This offers an extremely low resistance value of 300 – 350 Ohms per foot for optimum spark travel. Spiral core wire is also radio suppression, so there is no electronic interference with the radio and they work great with delay boxes and stutter boxes.

Unlike universal plug wires sets, LiveWires do not require any assembly. All sets are custom fit and numbered on both ends for the correct cylinder making installation, removal and re-installation quick and easy. No cutting, splicing or crimping is required! All sets include a tube of dielectric grease that is applied to the plug boots to prevent voltage leakage and boots and terminals from sticking to the plug.

High Temperature Rating
Numbered For Each Cylinder
No Radio Interference
Low Resistance Value
All Sets Ready To Install
Fully Assembled: Yes
Numbered For Each Cylinder: No
Coil Boot Ends: 90° LS Style
Spark Plug Boot Ends: 135°
Boot Material: Silicone
Plug Boot Temp Rating: 600° F
Wire Temperature Rating: 1400° F
Conductor Style: Spiral Core
Resistance Rating: 300-350 ohms/ft
RFI Suppression: Yes
Wire Size: 8MM
Actual Wire Size w/ Heat Sleeve: 10MM
Warranty: Yes. One year from date of purchase
Notes: All wires are 9″

CARB Warning

For use on pre-1966 vehicles only

Emissions warning: this part only legal for sale or use in California if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. ++any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering there are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA Prop 65

CARB warning

Specifications

KEY SPECS
MFG. Part #	Select Color to see
Brand	Performance Distributors
Conductor Style	Spiral Core
Diameter	10"

GENERAL
Assembled	Yes
Spark Plug Wire Color	Select Color to see
Spark Plug Boot Ends	180 Degree
Spark Plug Boot Material	Silicone
Spark Plug Boot Color	Black
RFI Suppression	Yes
Distributor Boot Material	EPDM rubber
Distributor Boot Color	Black
Coil Wire Included	No
Spark Plug Wire Resistance	350 ohms/ft.
Notes	Live Wires feature an 8mm ignition wire, but measure 10mm due to the high temperature sleeve. These are 9 in. overall length.
GTIN Code	Select Color to see
Sold in Quantity	Set
