78-88 GM Metric Loaded Brake Caliper Kit w/D154 Hawk Black Pads

These complete single piston brake caliper and brake pad kits are perfect for IMCA Hobby Stock or Street Stock 1978-88 GM Metric race cars.

• Stock style single piston Metric calipers
• Replacement for 1978-88 GM Midsize cars
• For IMCA Hobby Stock/Street Stock classes
• Front brake set with Left and Right calipers/brake pads
• Hawk Black brake pads - medium torque and temp compound for good fade resist at low-medium temps
• No core charge required
• 7/16"-20 inlet
• 5-1/2" mount spacing
• Can be used with brake hoses from pre-78 GM intermediate cars
• Allen head zinc plated steel slider bolts - 7/16"-20 Thread

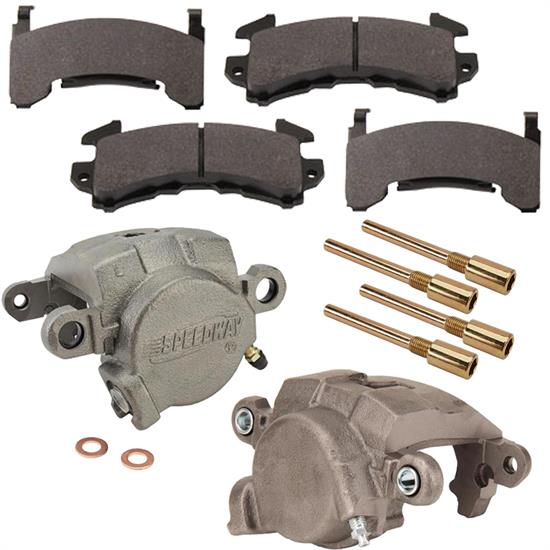

Kit Includes:

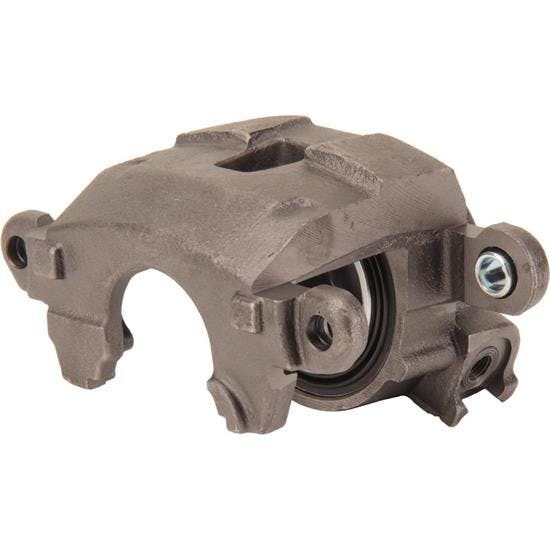

• (1) IMCA Approved 78-88 GM Metric Brake Caliper - Left
• (1) IMCA Approved 78-88 GM Metric Brake Caliper - Right
• (1) Set of 4 Hawk HB119M.594 Black Brake Pads
• (4) GM Brake Caliper Slider Bolts

Installation Notes:

Only use full metallic pads on coated rotors.

Hawk Performance burnishes its High Performance Street brake pads as a final step in the factory, but all brake pads have to be bedded-in with the rotors (new or used) that they will be used against. Properly bedding-in new brake pads results in a transfer film being generated at the pad and rotor interface to maximize brake performance.

Due to the dramatic friction levels produced by the HP Plus series to achieve "race-level" braking, rotor wear, noise, dust, and pad life may be affected.

When utilizing slider bolts, the original slide pin bolt sleeve will not be used.  It must be removed from the caliper as the head of this slide pin bolt has this sleeve function built into the bolt.    The slide pin bolts included will replace both the original slide pin bolt sleeve and the original equipment type slide pin bolt.

Learn how to properly Bed-In your brake pads by reading our tech article.  Bedding-In Brake Pad Procedure.

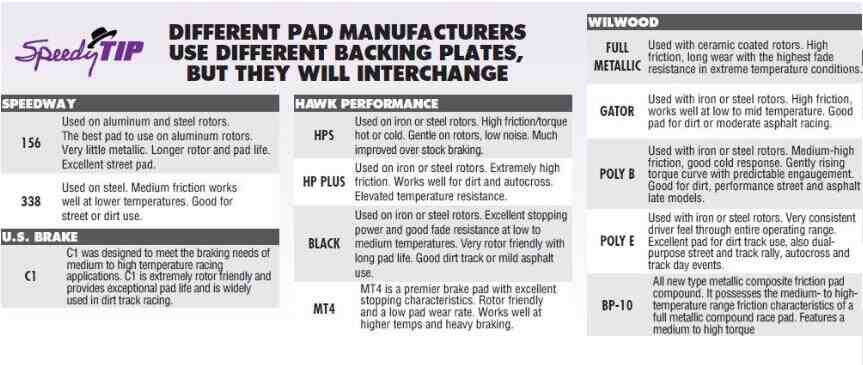

Brake Pad Brand Guide (Link)
