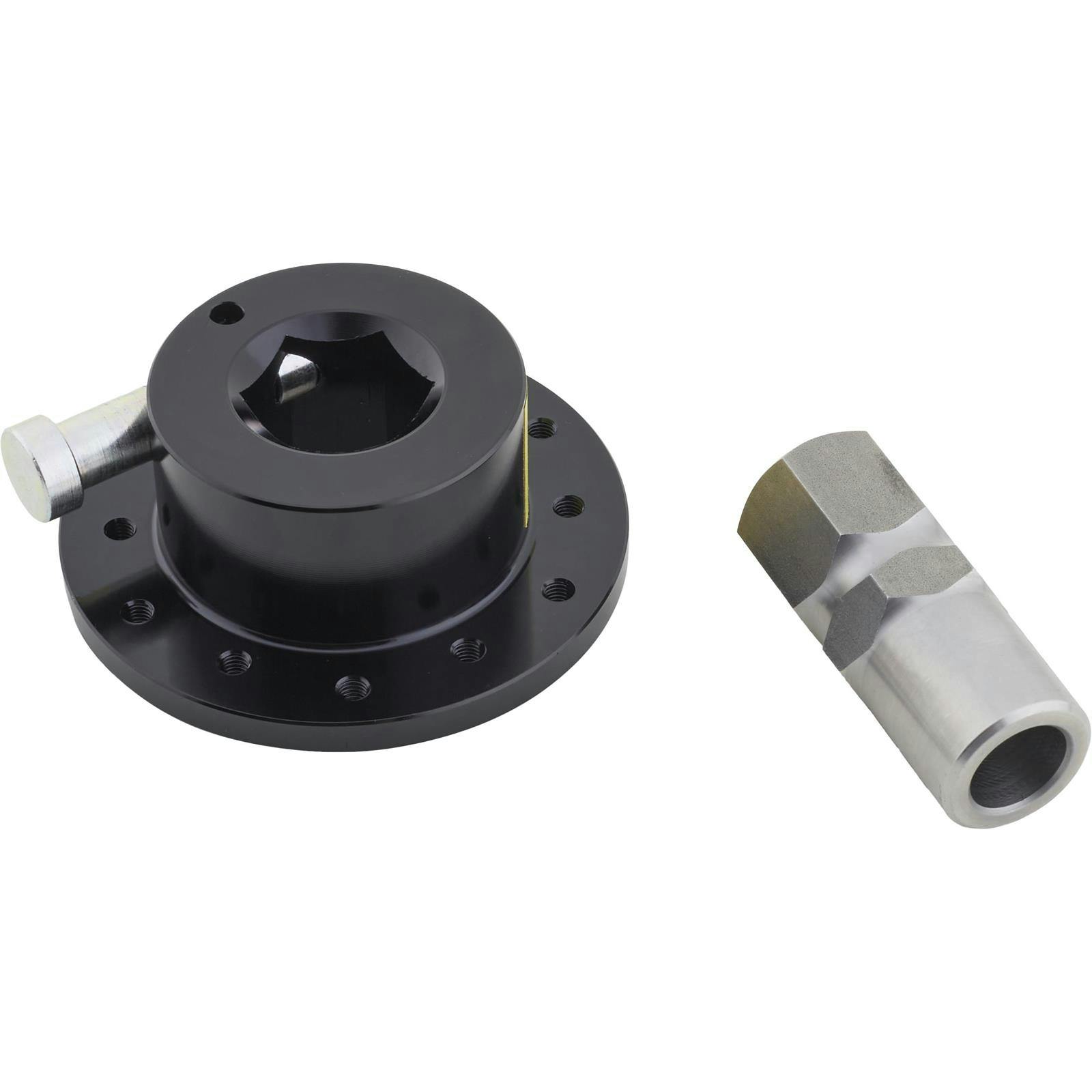

6-Bolt Black Quick Release Steering Wheel Hub Hex for 5/8" Shaft

-15%

#91032843

6-Bolt Black Quick Release Steering Wheel Hub Hex for 5/8" Shaft

Discontinued
Item is new and in unused condition. This product will no longer be stocked by Speedway Motors
Push button quick release eliminates the possibility of losing the hub retaining pin

Type:

6-Bolt / Hex / 5/8"

6-Bolt / Splined / 3/4"5-Bolt / Splined / 3/4"6-Bolt / Splined / 5/8"6-Bolt / Hex / 3/4"5-Bolt / Hex / 3/4"5-Bolt / Splined / 5/8"5-Bolt / Hex / 5/8"

$56.94

/each

In Stock

$66.99

Save $10.05

Item is new and in unused condition. This product will no longer be stocked by Speedway Motors.

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, 2.5" Overall Length, .429" Pin Diameter

Discontinued
Item is new and in unused condition. This product will no longer be stocked by Speedway Motors

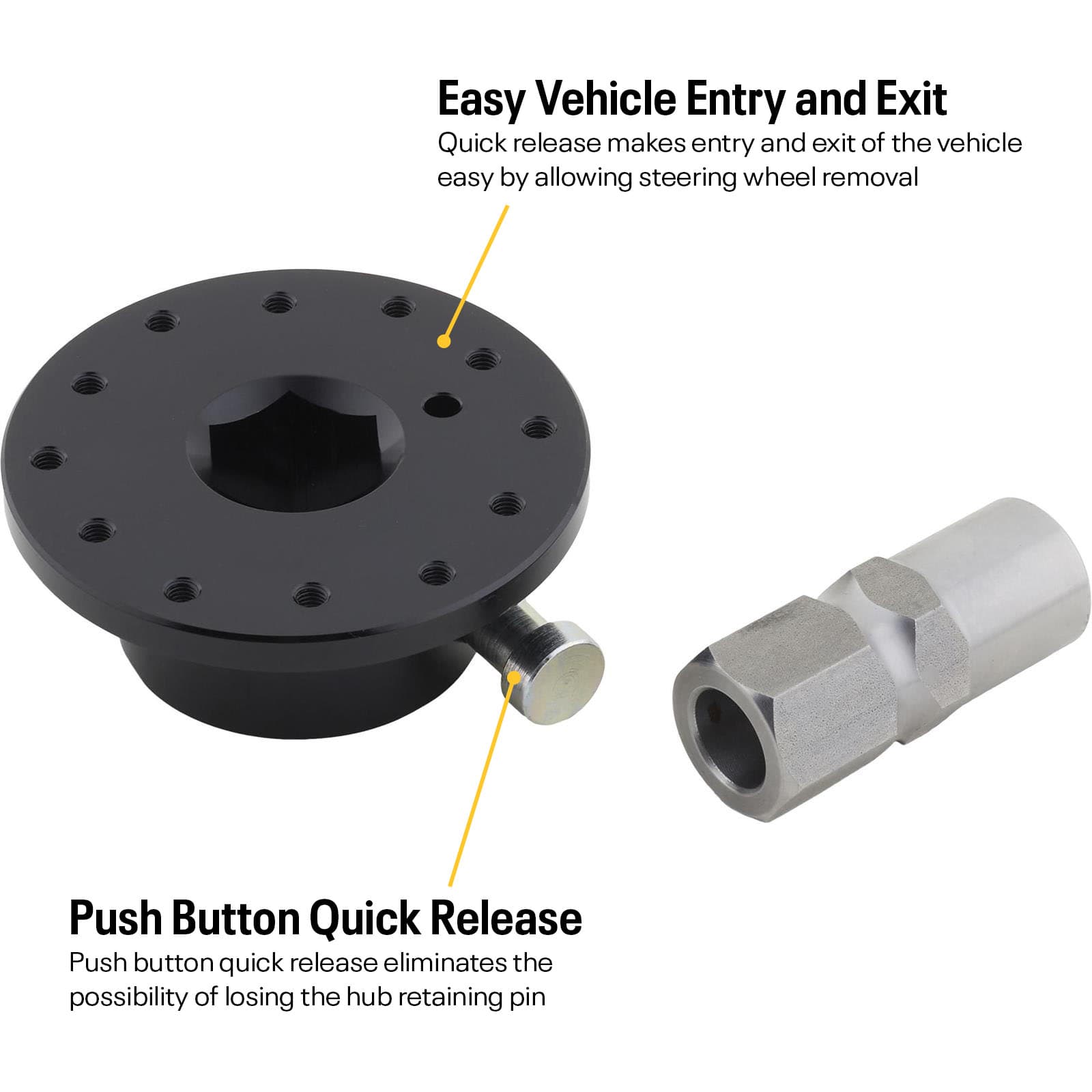

Push button quick release eliminates the possibility of losing the hub retaining pin
Quick release makes entry and exit of the vehicle easy by allowing steering wheel removal
Billet aluminum hub accepts standard 6 bolt steering wheels
Black anodized finish on billet hub, steel 5/8-inch hex stub is bare steel
Quick release for off-road/motorsports use only

See more details

Key Specs

MFG. Part #	91032843
Garage Sale Type	Discontinued
Spline Count	No splines
Steering Wheel Style	Replacement
Material Type	Aluminum

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Ineligible for Return

Contains items that cannot be returned

Speedway Motors 91032843 Details

Push button quick release design means no retaining pin to lose
Mounts popular 6-bolt (6 on 70mm) aftermarket steering wheels
Steering wheel mounting holes are standard 1/4-20 thread
Includes 5/8-inch hex adapter to weld to your 5/8-inch steering shaft
Black anodized finish compliments any wheel color/design
2-1/2-inch overall length provides a compact mounting solution

An Easy to Use Push Button Quick Release For 6-Bolt Steering Wheels

No one ever said getting into or out of a race car when fully suited up with a HANS, helmet, and other safety gear is easy. A popular option for decades in helping with said ingress/egress procedures has been a removable steering wheel by way of a quick release hub mechanism. Once seated and harnesses buckled it is simply a matter of grabbing your steering wheel off your steering wheel hook nearby and slipping it onto the steering shaft to lock it into place. The one issue many had with a quick release steering wheel was misplacing the quick release pin that retains the quick release hub. Without the pin to reinstall the wheel it is not secured to the steering shaft. The answer to this issue is a quick release hub with a self-contained push button release.

Our 6-bolt steering wheel quick release hubs are made from CNC machined billet aluminum and then black anodized for a tough, long lasting finish. The self-contained spring loaded quick release mechanism makes for fast removal or installation of your race car’s steering wheel and can be positioned for left or right side release. This design eliminates the fear of losing the standard quick release hub retaining pin that must normally be required to be manually removed before the steering wheel can be removed. The 6-bolt steering wheel pattern fits standard 6 on 70mm bolt spacing steering wheels that are popular for use in motorsports and the holes are threaded 1/4-20 (steering wheel mounting fasteners not included).

Included with our billet aluminum quick release hub is a steel 5/8-inch hex stub that requires welding to your 5/8-inch diameter steering shaft used in your race car’s steering system. We also offer our billet quick release 6-bolt hubs in 5/8-inch-19 splined, 3/4-inch-19 splined and 3/4-inch hex to fit just about any racing oriented steering shaft on the market.

Note: These 6-bolt steering wheel quick release hubs are for off-road/motorsports use only and a quick release steering wheel is not for use on public roadways.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Speedway Motors 91032843 Specifications

KEY SPECS
MFG. Part #	91032843
Brand	Speedway Motors
Garage Sale Type	Discontinued
Spline Count	No splines
Steering Wheel Style	Replacement
Material Type	Aluminum

GENERAL
Overall Length	2.5"
Pin Diameter	.429"
Overall Thickness	1.375"
Overall Diameter	2.25"
Inside Diameter	0.625"
Outside Diameter	1.146"
Shank Diameter	.976"
Thread Pitch	1/4"-20
Finish	Anodized
Color	Black
Sold in Quantity	Each
Notes	Welding of quick release stub to steering shaft required
