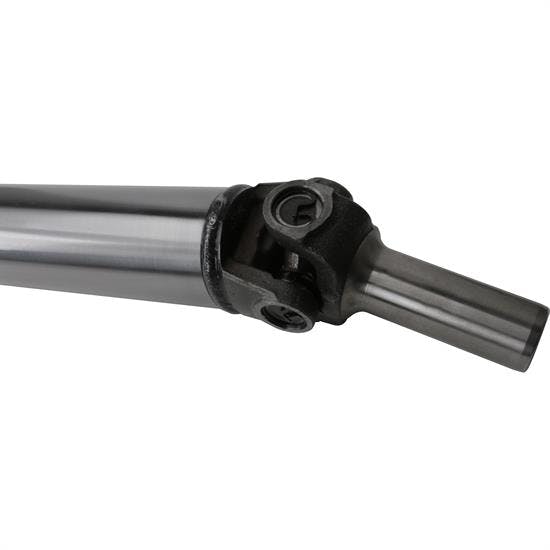

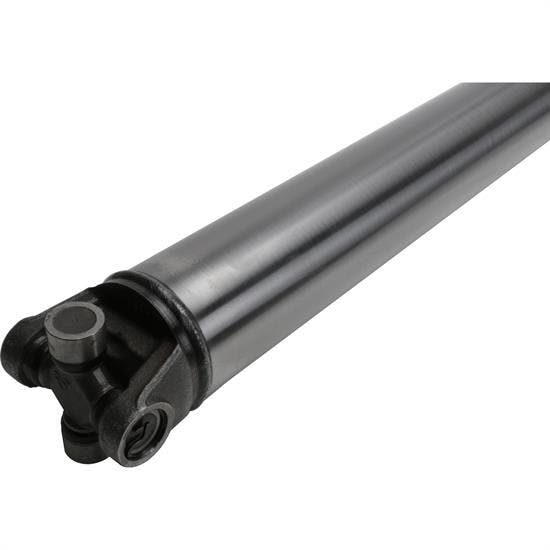

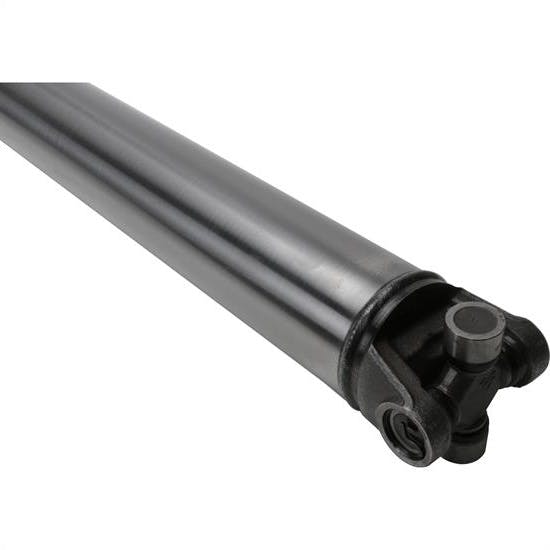

58 In. Streetrod Steel Driveshaft, 3 In OD, GM T400, 1310 U-Joint
58 In. Streetrod Steel Driveshaft, 3 In OD, GM T400, 1310 U-Joint
Speedway Motors

|

#9109679

58 In. Streetrod Steel Driveshaft, 3 In OD, GM T400, 1310 U-Joint

  • Drive shafts are built with 3" OD 1020 DOM tubing with a 0.083" wall thickness
  • With the chassis at ride height, measure from the centerline of the yoke on the rear end to the tail housing/rear seal on the transmission
  • Commonly used for applications generally up to but not exceeding 600 H.P.
See More

$554.99

/each

Factory Shipped

$565.96

Save $10.97


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, 3.00" Overall Diameter, Steel

  • Drive shafts are built with 3" OD 1020 DOM tubing with a 0.083" wall thickness
  • With the chassis at ride height, measure from the centerline of the yoke on the rear end to the tail housing/rear seal on the transmission
  • Commonly used for applications generally up to but not exceeding 600 H.P.
  • Custom drive shafts are non-returnable
  • Please allow for up to 3 business days for the driveshaft to be manufactured and shipped from the production facility

Comes as a Kit

View Kit Components

See more details

Key Specs

Overall Diameter3.00"
Overall Length58"
Material TypeSteel
Transmission Yoke IncludedYes
Transmission Joint Style1310 U-joint
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 9109679 Details

 Speedway Motors now offers balanced 58" Length drive shafts!

  • Drive shafts are built with 3" OD 1020 DOM tubing with a 0.083" wall thickness.
  • Fit most builds and are built to withstand up to but not exceeding 600 horsepower.
  • Custom drive shafts are non-returnable.
  • Please allow for up to 3 business days for the driveshaft to be manufactured and shipped from the production facility.

Driveshaft Measurement:  With the chassis at ride height, measure from the centerline of the yoke on the rear end to the tail housing/rear seal on the transmission.

Commonly used for applications generally up to but not exceeding 600 H.P.

  • GM app:
    • ( T400 ) - GM 32 spline yoke -  Fits Turbo 400 (with no threaded hole in output shaft), M22 Muncie, Borg Warner, Super T10 Warner, 4L80 Auto

Front and Rear U-joint application:

  • GM & Ford common u-joint apps:
    • ( 1310 ) 1-1/16" cap X 3-7/32" wide

Speedway Motors 9109679 Specifications

KEY SPECS
MFG. Part #9109679
BrandSpeedway Motors
Overall Diameter3.00"
Overall Length58"
Material TypeSteel
Transmission Yoke IncludedYes
Transmission Joint Style1310 U-joint
Differential Joint Style1310 U-joint
GENERAL
Yoke U-Joint Series1310
