Part # 9109515

3/16 Inch PVF Coated Steel Brake Line Kit, 3/8-24 IFF

by

|

  • This brake line kit makes it easy to install all new brake lines on your project
  • Includes 25 ft roll of PVF Poly-Armour coated premium steel 3/16" brake line as well as flare nuts required for 3/8"-24 inverted flare connections
  • Four 18" stainless steel braided AN 3 flexible brake hoses are included to connect your calipers or wheel cylinders

$209.99

kit

In Stock

$220.80

Save $10.81


Quantity

Select a vehicle to verify Fitment

Product Summary

Universal Fit, Steel, 0.188" Tube O.D., -3 AN

  • This brake line kit makes it easy to install all new brake lines on your project
  • Includes 25 ft roll of PVF Poly-Armour coated premium steel 3/16" brake line as well as flare nuts required for 3/8"-24 inverted flare connections
  • Four 18" stainless steel braided AN 3 flexible brake hoses are included to connect your calipers or wheel cylinders
  • Adapter fittings for the master cylinder and calipers or wheel cylinders are sold separately
  • A flare tool such as 91089525 or 91170081 will be required to create inverted flare connections

Comes as a Kit

Key Specs

BrandSpeedway Motors
Material TypeSteel
Tube O.D.0.188"
Overall Length25 ft.
AN Size-3 AN

Need To Know

This Product Will Ship Free

Quick and Easy Returns

Details

Speedway makes plumbing brake lines easy with this steel brake line kit that includes new lines and fittings to make your job less stressful.

Kit Includes:

  • (1) 25 Ft. Roll of Speedway 3/16 Inch PVF Coated Steel Brake Line
  • (2) Speedway Steel Straight 3/8-24 IFF to -3 AN Male Adapter Fitting
  • (1) Pack of 4 Brake Line Mount Tabs with Clips
  • (4) Bags of 5 Inverted Flare Thread Nuts for 3/16 Inch Tubing, 3/8-24
  • (6) Straight 3/8 Inch-24 IFF to 1/8 Inch NPT Male Adapters
  • (2) 3/8 Inch-24 IFF Each Port, Plain Adapter Tees
  • (4) 18" Braided S.S. Brake Lines - Straight AN3

Learn more about flaring lines for our automotive fittings by reading our tech article. The Principles of Automotive Fittings.



Speedway 3/16 Inch PVF Coated Steel Brake Line

Now available for your 3/16" brake line consideration is a new PVF Poly-Armour Poly-Vinyl Fluorine coated brake line.

  • PVF coating is a highly durable 'plastic' coating that is 'baked and cured' to the line for a durable finish that provides a clean look and appearance with a dark olive green color
  • This provides extra protection from corrosion, debris, and road surfacing solutions
  • Also offers superior bend-ability without kinking and bends easier than standard brake line tubing
  • This makes Poly-Armour the easiest line to work with-period!
  • Underneath the PVF coating is a double-wall, low carbon steel, copper brazed tubing which meets all international and U.S. requirements for brake tubing
  • Considered a premium line, Poly-Armour hard line should be used on any vehicle that will see any type of harsh environment including snow, road treatments, salt, air, dirt/gravel etc.
  • PVF Poly-Armour coated line is the perfect choice for the racer for those weekend after race chassis washes week after week or any street rod fabricator wanting to utilize a hard line application for that beautiful finish that will last for years
  • Available in a 25' roll of 3/16" line
  • This line bends easily and smoothly with hand tools and can be flared with a 37° AN flaring tool, or 45° double flaring tool
  • Use in conjunction with our 3/8"-24 inverted flare male brake line nuts, or AN tube nuts and sleeves



Speedway Steel Straight 3/8-24 IFF to -3 AN Male Adapter Fitting

  • These steel fittings adapt 3/8"-24 inverted flare female to -3 AN male
  • Commonly used in brake systems when converting a 45-degree flare (IF) to a 37-degree flare (AN)



Brake Line Mount Tabs with Clips

  • Weld on frame tabs with clips
  • Holds the end of your brake line where the hose attaches
  • Sold in sets of 4



Inverted Flare Thread Nuts for 3/16 Inch Tubing, 3/8-24

  • Steel 3/8"-24 IFM thread nuts
  • For 3/16" brake line when double flared to 45°



Straight 3/8 Inch-24 IFF to 1/8 Inch NPT Male Adapters

  • Brass adapter
  • Straight 3/8"-24 IFF to 1/8" NPT Male Adapter



3/8 Inch-24 IFF Each Port, Plain Adapter Tee

  • This brass tee fitting is commonly used in brake line systems
  • Features three 3/8"-24 inverted flare female (45-degree flare) ports



18" Braided S.S. Brake Lines - Straight AN3

  • Braided stainless covering over a Teflon inner liner
  • Perfect for brake lines, clutch lines and gauge lines
  • Straight AN3 fittings on both ends
  • 18" each in length
  • Zinc Plated Steel Ends

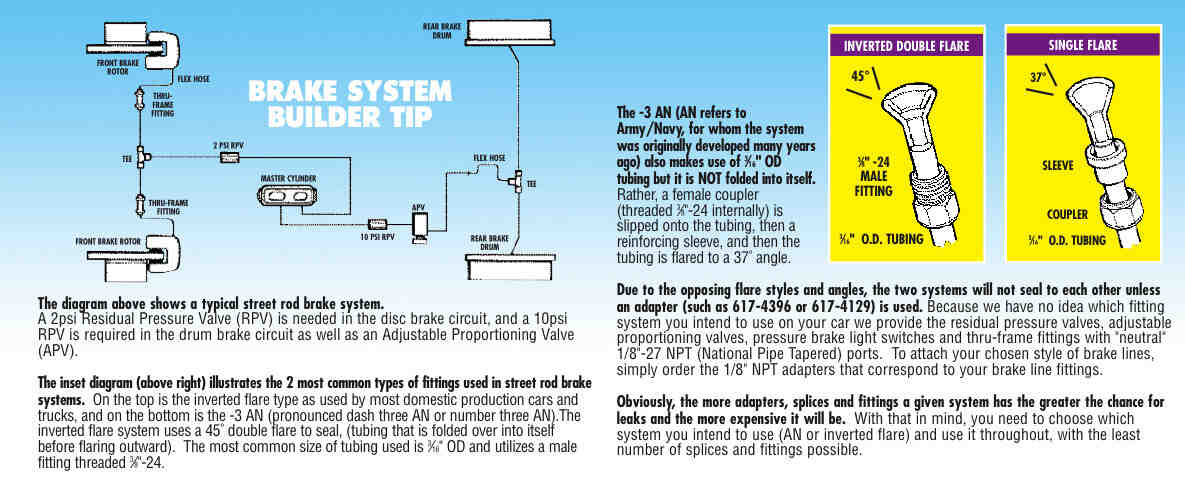

Charts

Specifications

KEY SPECS
BrandSpeedway Motors
Material TypeSteel
Tube O.D.0.188"
Overall Length25 ft.
AN Size-3 AN
GENERAL
Thread Pitch3/8"-24 IFM
FinishPoly-Vinyl Fluorine (PVF)
Sold in QuantityKit
