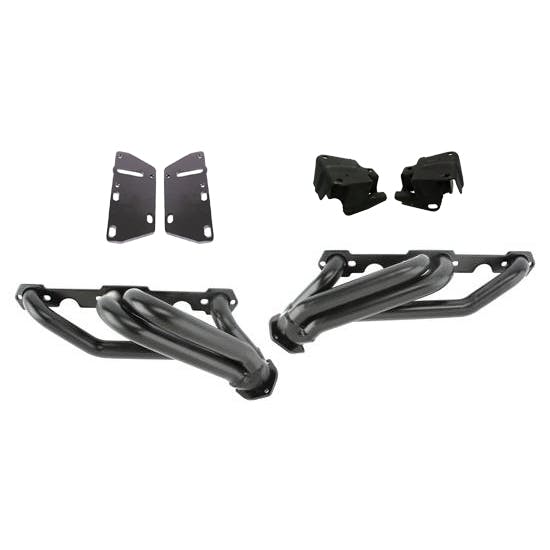

1982-97 Chevy S10 Small Block V8 Swap Headers w/Motor Mounts
1982-97 Chevy S10 Small Block V8 Swap Headers w/Motor Mounts
Speedway Motors

|

#9100984

1982-97 Chevy S10 Small Block V8 Swap Headers w/Motor Mounts

  • This is a "shorty" header to put a S/B Chevy V8 in '82-'97 2WD Chevy S-10/GMC S-15
  • These headers have a steel construction with 1-1/2" primary tubes with 2-1/2" collectors
  • Work with auto transmissions only
See More

$424.99

/kit

In Stock

$432.97

Save $7.98


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Shorty Header Tube Type, Round Exhaust Port Shape, Raw

  • This is a "shorty" header to put a S/B Chevy V8 in '82-'97 2WD Chevy S-10/GMC S-15
  • These headers have a steel construction with 1-1/2" primary tubes with 2-1/2" collectors
  • Work with auto transmissions only
  • Engineered to allow you to put a 283-400 S/B Chevy in your 1982-2005 2wd S-10 or S-15 using stock 4.3L V-6 motor mounts
  • Bolt in steel/rubber mounts

Comes as a Kit

View Kit Components

See more details

Key Specs

MFG. Part #9100984
Header Tube TypeShorty
Exhaust Port ShapeRound
Primary Tube Diameter1-1/2"
Material TypeSteel
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 9100984 Details

Headers

This is a "shorty" header designed to put a Small Block Chevy V-8 in 1982-1997 2WD Chevy S-10/GMC S-15. Works with auto transmissions only. Fits standard factory round port 265-400 c.i. SBC heads.

  • 1-1/2" primary tubes
  • 2-1/2" collectors
  • Plain finish

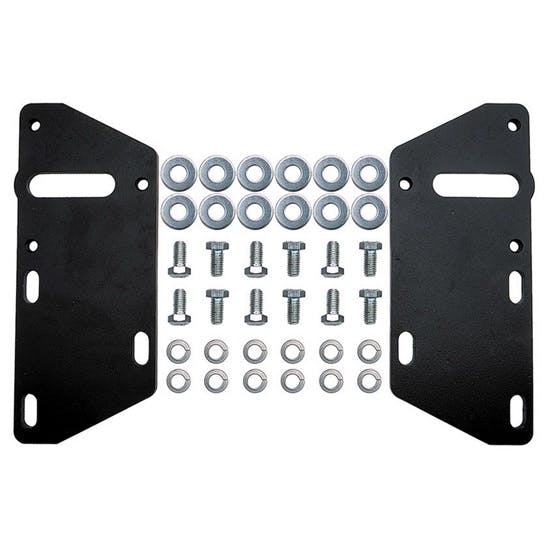

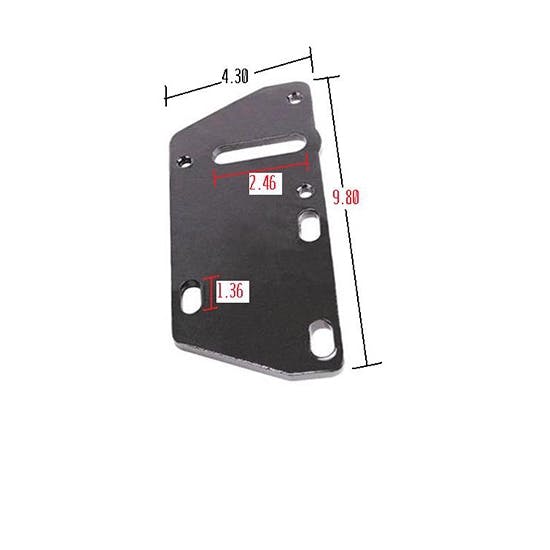

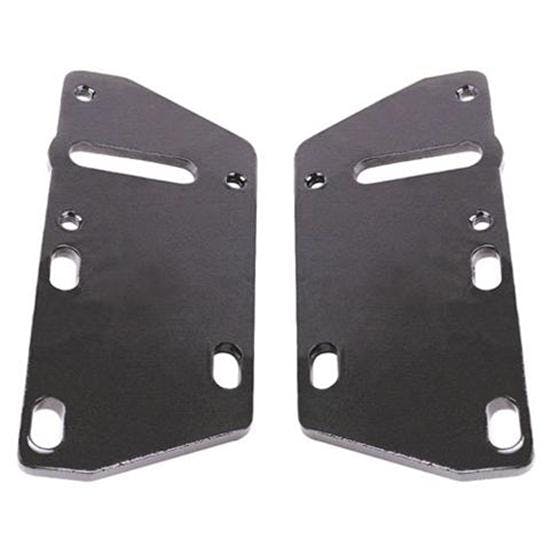

Engine Swap Kit

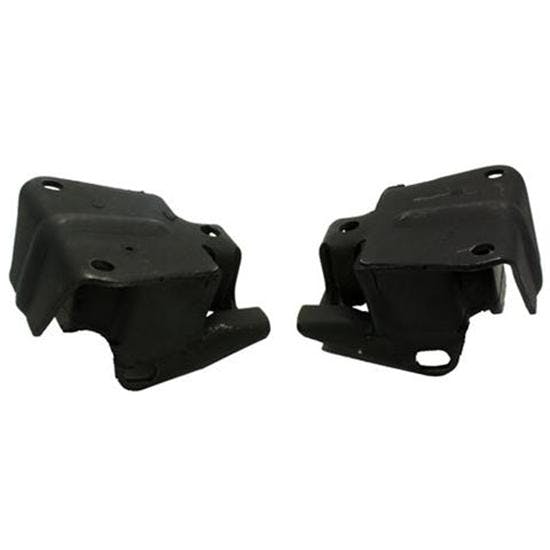

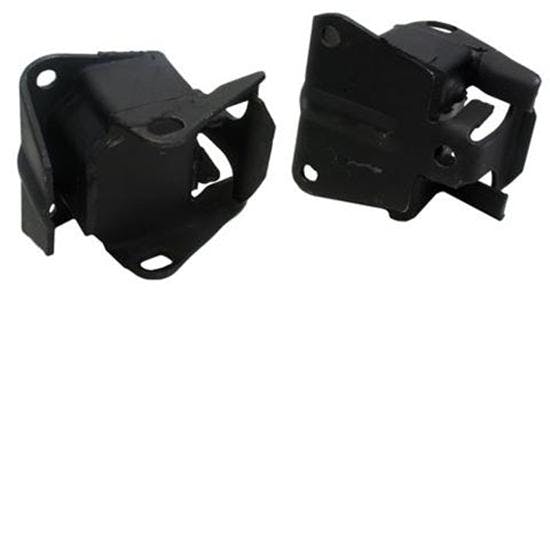

Put a 283-400 S/B Chevy in your 1982-2005 2wd S-10. This pair of motor mounts cushions is used with adapter set 720-4691 to install a Chevy V8 in place of the 4.3L V6 in '82-'05 S10/S15 2WD trucks.

Charts

Speedway Motors 9100984 Specifications

KEY SPECS
MFG. Part #9100984
BrandSpeedway Motors
Header Tube TypeShorty
Exhaust Port ShapeRound
Primary Tube Diameter1-1/2"
Material TypeSteel
ColorNatural
Weld-UpNo
Collector Diameter2-1/2 Inch
FinishRaw
Hardware IncludedYes
Gasket(s) IncludedYes
Collector Reducers IncludedNo
Collector Attachment Type3-bolt flange
GENERAL
Sold in QuantityKit
Collector Length2.5"
Flange Thickness0.32"
Port Height1.58"
Port Width1.48"
Drivers Side Dimension A7.2"
Drivers Side Dimension B8.05"
Drivers Side Dimension C20.75"
Passenger Side Dimension A4.5"
Passenger Side Dimension B7.75"
Passenger Side Dimension C22.63"

Questions & Answers

2 Questions • 2 Answers

Do the headers work with straight plug heads or angle plug heads or both ?

by Crusty

• 2 years ago

1 answer

View Answer

Will this kit fit on a 1994 chevy s10 2.2? Idk if there's a difference between a 2.2 and 4.3

by Valdo

• 4 years ago

1 answer

View Answer
