Product Summary

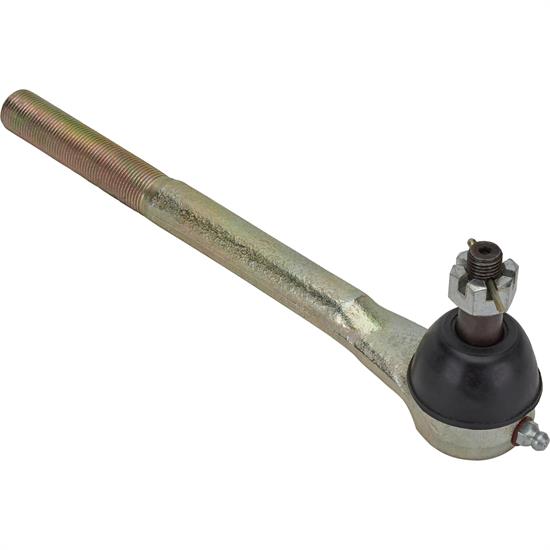

Ends Tie Rod Component, Inner Position, Zinc Plated

  • Tie rod idler arms and center links

Key Specs

MFG. Part #91032213
BrandSpeedway Motors

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

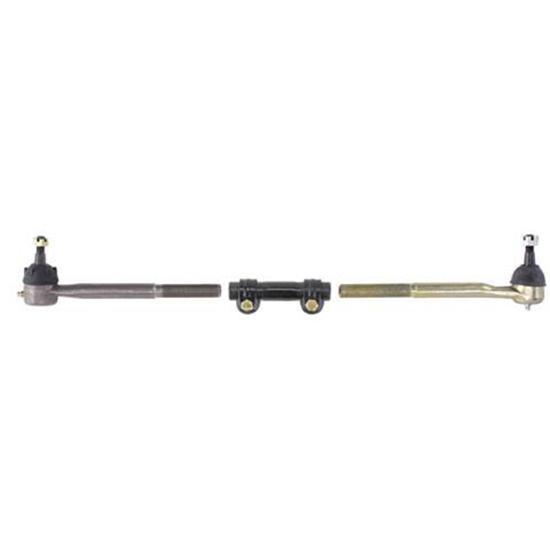

We stock those hard-to-find 1973-77 GM A-Body tie rods and adjustment sleeves.

  • Inner Tie Rod: LH threads

1973-77 GM A-Body

  • Buick (Century, Regal)
  • Chevy (Chevelle, Malibu, El Camino)
  • GMC (Sprint)
  • Oldsmobile (Cutlass, 442, Hurst Olds)
  • Pontiac (Grand Prix, LeMans)

Item Details

Moog # ES2020RL
73-77 Chevelle

Specifications

KEY SPECS
MFG. Part #91032213
BrandSpeedway Motors
GENERAL
Tie Rod ComponentEnds
PositionInner
Tie Rod StyleStraight
Thread TypeLH Male
Thread Pitch11/16"-18
Stud Length0.42"
Material TypeSteel
FinishZinc Plated
Overall Length10"
Taper Small End0.52"
Taper Large End0.63"
Thread Length3.13"
Stud Diameter0.71"
Center Hole to End of Shank8.88
Shank Diameter8.00"
Grease Zerk IncludedYes
Sold in QuantityEach
NotesIncludes dust boot, cotter pin, castle nut, and grease zerk.
