1968-72 Chevelle Tubular Front & Rear Control Arms & Sway Bar Kit

Control Arms

If you want a superior set of tubular control arms for your GM A-Body car, including 1964-1972 Chevelle, we've got you covered. These control arms are specifically designed to plant the tires to the ground with improved geometry for modern tire design and increased adjustability for street/track performance. A-arm set comes complete with bushings, ball joints, bump stops, and are powder coated black.

• Kit includes both upper and lower control arms
• All new components
• Heavy duty tubular design with Delrin bushings
• Additional caster built into upper arms
• Improved geometry to firmly plant modern radial tires
• Durable black powder-coated finish
• Maintains stock ride height

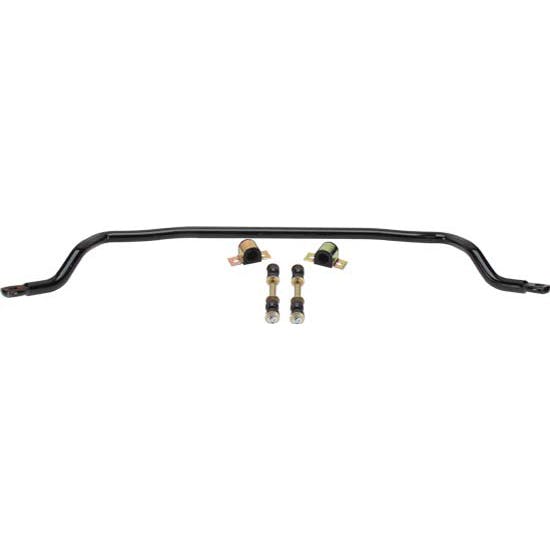

Front Sway Bar

This front sway bar kit is designed as a performance replacement upgrade for your classic GM A-body muscle car. Features a 1-1/4" diameter solid steel bar and comes with all hardware needed for a successful installation. If your GM A-body came with an anti-sway bar from the factory, chances are this kit will be a direct replacement. If it did not, a small amount of drilling will be required for installation of the sway bar kit.

• Achieve flatter cornering
• Complements rear sway bar to reduce understeer and gain more neutral handing
• Adds to cornering stability at speed
• Solid steel 1-1/4" diameter bar
• Includes polyurethane bushings for increased responsiveness
• Black powder coated finish
• Corrosion resistant zinc plated hardware included



Rear Sway Bar

This kit is exactly what you need to bring your GM A-Body up to date with the latest in handling technology. Advanced design, variable-durometer bushings are set in high strength forged steel rod ends and welded into 0.188" wall thickness, 1020 dom tubing.

High-tech Giiro bushing design allows for the slight bushing twist required in the factory four link geometry, while minimizing front to back compression, virtually eliminating wheel-hop. These maintenance-free bushings are free pivoting, self-lubricating, self-centering and silent in operation.

Kit Includes:

• Fits 1968-72 GM A-Body
• Complete set of Heavy duty tubular trailing arms
• Upper arms are adjustable for fine tuning
• Extra Heavy 30mm High Clearance Rear Sway Bar
• Unlike other bars, this unit does not hang down below lower arm
• Trailing Arm Support Braces
• All items Gloss Black Powdercoated

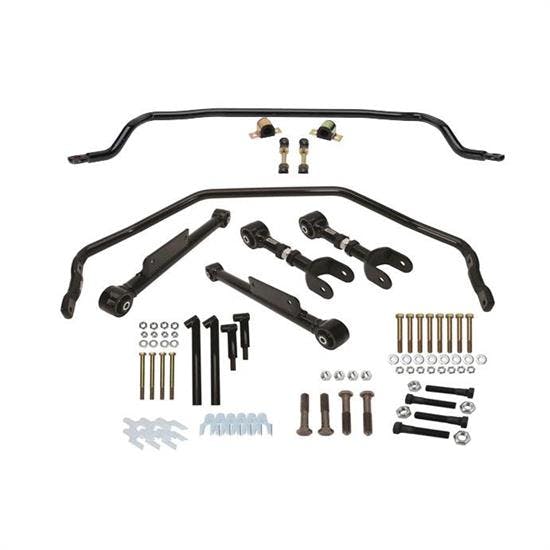

Kit Includes

(1) 1964-72 GM A Body Chevelle Tubular Upper and Lower Control Arms

(1) Replacement Upper Control Arm Shaft Bolts/Nuts, 1964-74 GM

(1) Classic Headquarters W-547A Lower Frame Bolt Set, Nova/Camaro

(4) 1/2"-13 Zinc Plated Steel Top Lock Nut

(6) A-Arm Control Arm 1/32 Inch Alignment Shim, 9/16 Slot Size, Zinc

(6) A-Arm Control Arm 1/8 Inch Alignment Shim, Zinc

(1) Front Sway Bar Kit, 1.25 Inch, 1964-77 GM A-Body

(1) Speedway Motors Rear Control Arms with Sway Bar, 1968-72 A Body
