Product Summary

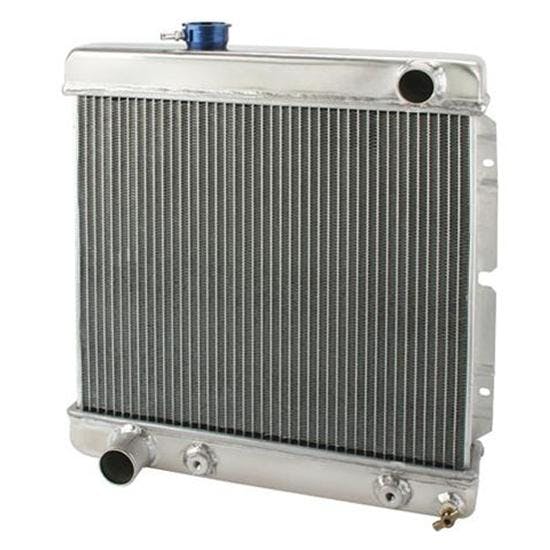

64-66 Ford Mustang, Single Pass Radiator Style, Natural

  • Direct replacement for many '64-and-up cars and trucks
  • Welded construction and includes built-in transmission cooler
  • Applications are for reference only and you need to measure your existing radiator for proper dimensions
  • Measurements listed are overall which includes radiator tanks
  • Spal fan and shroud assemblies are designed to fit the radiators listed only and are sold separately

Key Specs

MFG. Part #9175064
Radiator StyleSingle Pass
Radiator Flow DirectionDownflow
Material TypeAluminum
FinishNatural

Need To Know

This Product Will Ship Free

Quick and Easy Returns

Details

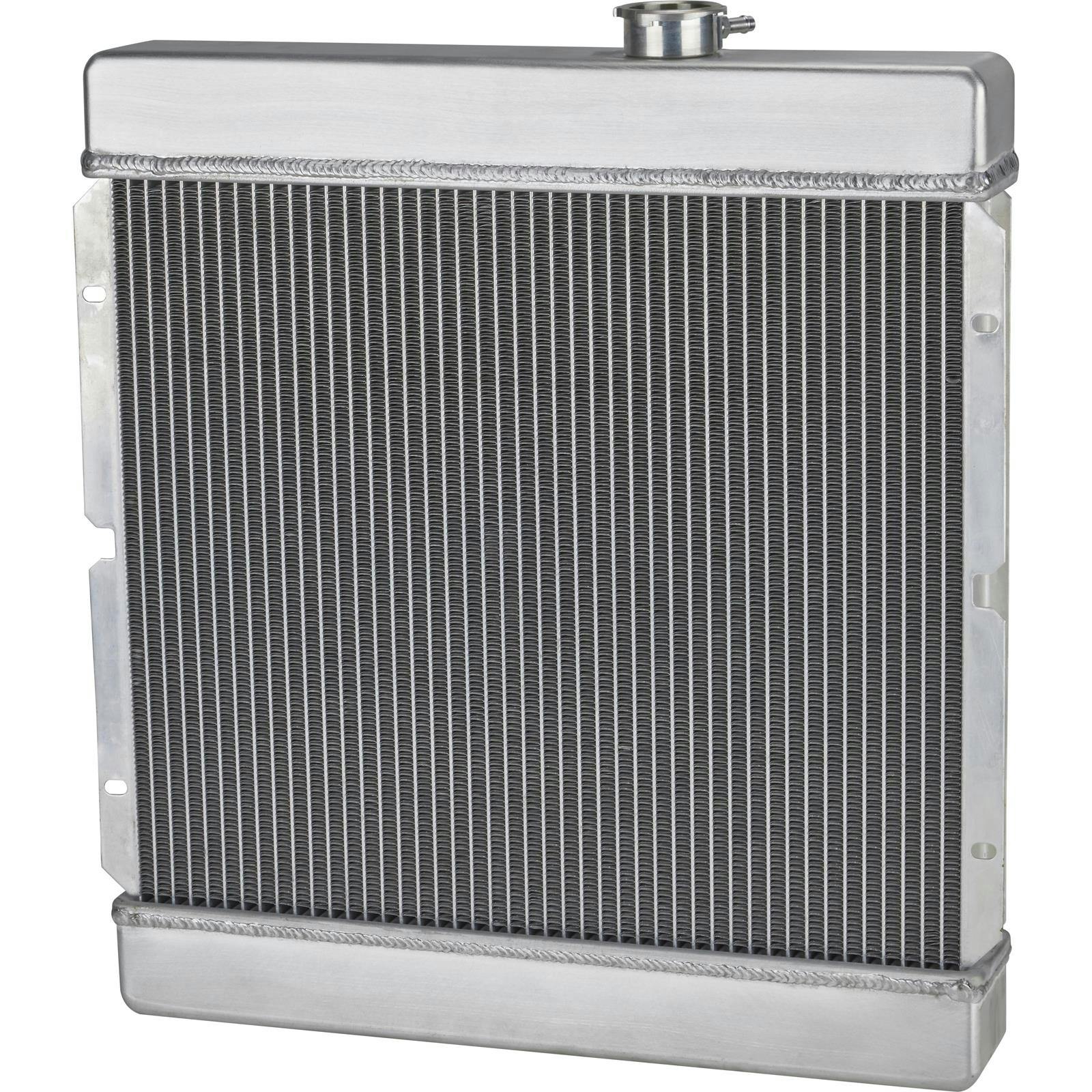

These all aluminum radiators are for Ford, GM & Mopar. They are a direct replacement for many 1964 and up cars and trucks.  They are all welded construction and include a built-in transmission cooler. This radiator has the upper water neck on the passenger side and the lower neck on the driver side.

The core of this radiator contains two rows of 1" tubes.

Applications are for reference only and you need to measure your existing radiator for proper dimensions. Measurements listed are overall which includes radiator tanks.

The Spal fan and shroud assemblies are designed to fit the radiators listed only and are sold separately.

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Specifications

KEY SPECS
MFG. Part #9175064
BrandSpeedway Motors
Radiator StyleSingle Pass
Radiator Flow DirectionDownflow
Material TypeAluminum
FinishNatural
GENERAL
Inlet LocationUpper passenger side
Outlet LocationLower driver side
Row Quantity2
Tube Size1.00"
Overall Width Range18.00" to 18.99"
Overall Width18.75"
Overall Height Range20.00" to 20.99"
Overall Height20.68"
Overall Thickness3.00"
Core Width Range17.00" to 17.99"
Core Width17.25"
Core Height Range16.00" to 16.99"
Core Height16.00"
Core Thickness2.13"
Cooling FanNot Included
Transmission CoolerYes
Shroud IncludedNo
Filler Neck Height1.00"
Inlet Size1.50
Outlet Size1.75
Fan IncludedNo
Radiator Cap IncludedNo
Notes1/8" NPT fittings for transmission cooler.
Sold in QuantityEach
