1962-67 Chevy II Gasser Complete Standard Subframe Kit w/Brakes

Want to see a LIVE install of this subframe? Follow along as we team up with Car Craft to transform a 1967 Chevy II into a gasser in just 5 days. Check out the build here.

• This kit will give your Chevy II Nova that 60s nose in the air look while still allowing it to be driven comfortably and safely on the street
• No cutting or grinding is necessary with these gasser subframes for your 1962-67 Chevy II Nova
• These direct, bolt-in front ends use all the same stock holes that held the original IFS subframe, which includes sturdy upper firewall support tubes from the subframe rails
• This adds strength to the subframe structure and supports the 8-bolts that hold the lower rails to the “chassis”
• The firewall support tubes bolt directly to the firewall using existing factory holes
• These leaf-spring suspensions include everything you'll need to install it into a stock Chevy II Nova chassis in a weekend
• Comes with frame mounts installed for small block, big block, and LS series engines
• Parallel leaf spring assembly bolts to subframe and supports tube axle
• Springs are heavy enough to support big block applications
• Equipped with Vega steering box and cross-style steering
• Urethane bushings to withstand the punishment of today's streets while providing a comfortable ride

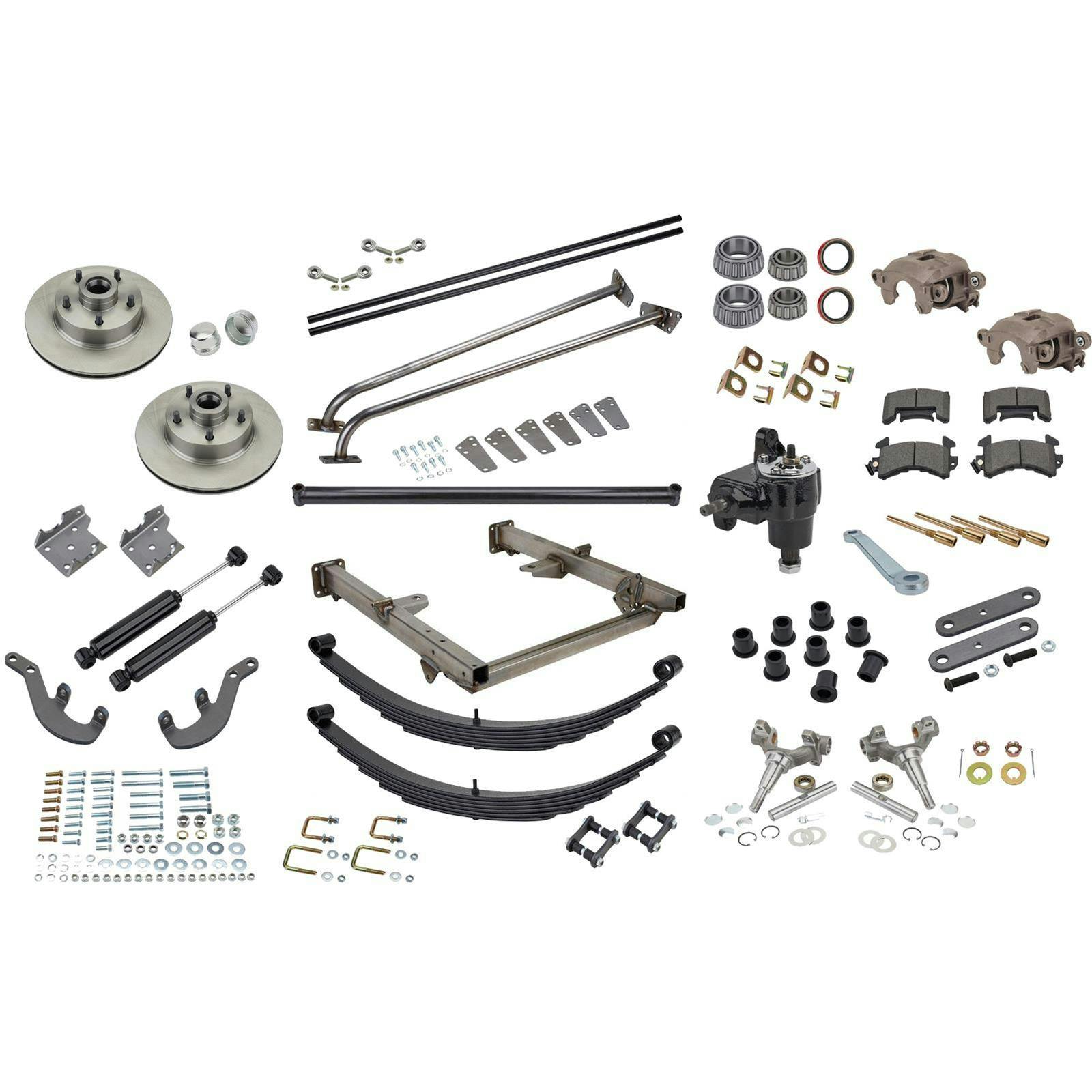

• Subframe Kit includes:
  • Subframe assembly
  • Leaf springs
  • Axle, spindles
  • New Vega steering box
  • Steering arms
  • Tie rod and drag link
• 56-1/2" track width with Speedway disc brake kit and a 48" axle
• Welding of spring pads to axle will be required
• Complete front disc brake kit included features:
  • 11" rotors
  • GM metric calipers
  • bearings, spindle nuts, dust caps, brackets, and hardware
  • 5 on 4.75" bolt pattern

Chevy II Gasser Instructions (PDF)

Brake Kit Instructions (PDF)
