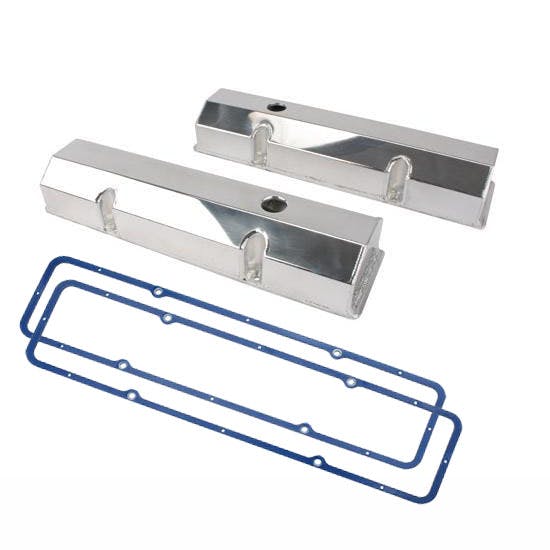

1960-86 Small Block Chevy Fabricated Valve Covers & Gaskets

Ask a Question

Features a single baffled 1-1/4" hole for PCV or oil fill
Can be painted, polished, or left in bare aluminum finish
Fits 1960-1986 Small Block Chevy 283-400 c.i. V8

$155.99

In Stock

$170.99

Save $15.00

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Chevy Small Block V8, Aluminum, Polished, Baffled

Features a single baffled 1-1/4" hole for PCV or oil fill
Can be painted, polished, or left in bare aluminum finish
Fits 1960-1986 Small Block Chevy 283-400 c.i. V8
Reusable neoprene rubber with stainless steel core to prevent the gasket from pushing out when torqued down
Eliminates leakage caused by internal pressure fluctuation

Comes as a Kit

View Kit Components

See more details

Key Specs

Brand	Speedway Motors
Material Type	Aluminum
Finish	Polished

See more specs

Need To Know

This Product Will Ship Free

Need help?

Quick and Easy Returns

Details

Valve Covers

Whether you're going for the hardcore race look or just trying to save weight, these fabricated aluminum valve covers are for you! Each cover comes with a single baffeled 1-1/4" hole for PCV or oil fill. Can be painted, polished, or left in bare aluminum finish.

Fits 1960-1986 Small Block Chevy 283-400 c.i. V8.

Grommets & hardware not included. Use a 1-1/4" grommet.

Gaskets

These premium quality Small Block Chevy (SBC) valve cover gaskets are made with a stainless steel frame sandwiched between durometer-tested neoprene rubber. This eliminates leakage caused by internal pressure fluctuations. Steel core valve cover gaskets won't tear or collapse.

Steel core improves seal
Reusable
.175" thick
Fits 1960-86 small block Chevy style heads (4 perimeter bolts)
Package of two gaskets

Charts

Gasket Cut Away Illustration (GIF)

Specs

Overall Height: 3-3/8"
Overall Width: 5-1/8"
Overall Length: 19-1/2" (including mounting flange)
Approximately 2" up on sides, the valve cover is beveled inward at about 45 degrees
Top-most flat surface is 2" wide
2-3/8” from the mounting surface to the bottom of the baffle
Breather Hole: 1-1/4"

Specifications

KEY SPECS
Brand	Speedway Motors
Material Type	Aluminum
Finish	Polished

GENERAL
Speedway Motors Catalog Part #	910-0351
Baffled	Yes
Breathers Included	No
Gaskets Included	Yes
Grommets Included	No
Hardware Included	No
Overall Length	19.50"
Overall Height	3.75"
Overall Width	5.13"
Depth	2.375"
Sold in Quantity	Kit
