1955-57 Chevy Power Rack & Pinion with Factory Steering Shaft

#9100909

1955-57 Chevy Power Rack & Pinion with Factory Steering Shaft

Name: 1955-57 Chevy Power Rack & Pinion with Factory Steering Shaft
Brand: Speedway Motors
SKU: 9100909
Price: 1171.99 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

1 Review

1 Question

Can be used with most GM steering pumps
Specifically designed for the 1955-57 Chevy cars
Center to center measures 49" and is has 5" of travel

$1,171.99

/kit

On Backorder

$1,188.98

Save $16.99

This part is Backordered. We currently do not have an estimate when this item will ship.

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

49.00" Center to Center, 2.65 Turns Lock to Lock, Steel

Can be used with most GM steering pumps
Specifically designed for the 1955-57 Chevy cars
Center to center measures 49" and is has 5" of travel
Designed to bolt in using the original mounting holes
Includes tie rod ends, special steering arms, and a pair of banjo fittings to adapt to AN6 fluid lines

Comes as a Kit

View Kit Components

See more details

Key Specs

MFG. Part #	9100909
Brand	Speedway Motors
Finish	Powder Coated
Material Type	Steel

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Rack and Pinion Assemblies Installation Instructions (91032246)

Steering Shaft and U-Joint Selection Guide

Steering Shafts Installation Instructions (8050050)

Installation Tips

Our headers 930-C5 and 930-C5H will work with a Small Block and this rack and pinion steering. Our tight-fit headers and manifolds WILL NOT work.
If using this rack and pinion kit with a big block (396-502 c.i.), you will need to use a C-notched oil pan, and special headers will be needed from TRI-5 R and D.
Although this kit is fairly simple to install, some modifications are necessary.
Before starting installation, please be aware of the modifications that are needed to install.
Please be aware of the specific applications that this kit is intended to fit as outlined above.
Due to application variables, this kit may not fit all applications and therefore it is recommended to verify that the kit will fit your vehicle combination prior to altering vehicle.

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Speedway Motors 9100909 Details

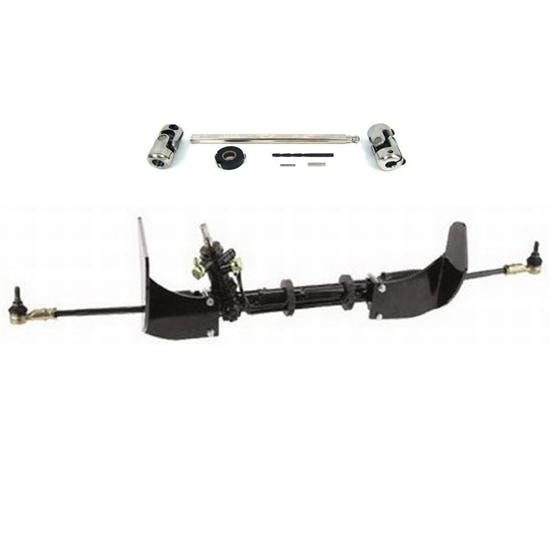

Rack and Pinion

Finally a bolt-on power rack and pinion for 1955-57 Chevy cars. Simply remove the original steering box, idler arm and tie rod assembly and bolt this unit back in using the original mounting holes. Includes tie rod ends, special steering arms, and a pair of banjo fittings to adapt to AN6 fluid lines. Can be used with most GM steering pumps.

This item must be used with OEM style spindles. It WILL NOT work with dropped spindles.
Designed for use with S/B Chevy 265-400 c.i. V-8 with side engine mounts only.
Must use chassis headers and a stock type pan sump for clearance.
Steering U-joint 910-32255 is required (17mm).

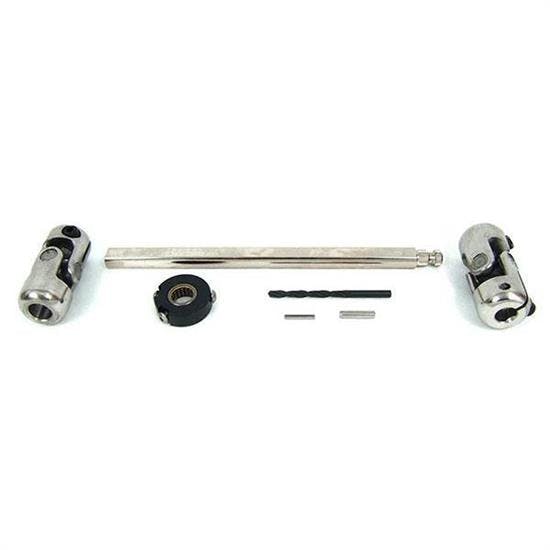

Steering Shaft Kit

This kit is for use with Unisteer Tri-5 Rack & Pinion kit being installed on small block cars that have header clearance. With header clearance, this is the easiest way to connect the rack & pinion up to the column.

The kit consists of two U-Joints, one already welded to long section of smooth shaft, all one need do is mock up their steering linkage and cut off the shaft at correct length. Then drill and pin the second U-joint to the shaft with the provided hardware, or weld if you prefer.

3/4" Double D
Natural Steel

Charts

910-32246 Instructions (PDF)

Installation Instructions (OAD)

Guides & Documents

Rack and Pinion Assemblies Installation Instructions (91032246)

Steering Shaft and U-Joint Selection Guide

Steering Shafts Installation Instructions (8050050)

Speedway Motors 9100909 Specifications

KEY SPECS
MFG. Part #	9100909
Brand	Speedway Motors
Finish	Powder Coated
Material Type	Steel

GENERAL
Center to Center	49.00"
Turns Lock to Lock	2.65
Travel	5.00"
Thread Pitch	M14x1.5
Sold in Quantity	Kit

Ratings & Reviews

1 Review

Write A Review

1 reviews

Filter by Ratings

Sort Reviews

great for any 1955-57 restoration

5.0

2 years ago

1955 Chevy

Haltom city, texas

Verified

1955 Chevy restoration upgrade with rack n pinion front n back , perfect upgrade

Would Recommend

Showing 1 of 1 reviews

Questions & Answers

1 Question • 1 Answer

Sort Questions

Why won't this kit work with drop spindles? the spindles don't change the tie rod location

by Kevin

• 4 years ago

1 answer

View Answer

1 of 1 questions shown

Fitment

1955-1957 Chevy Bel Air

1955-1957 Chevy Two-Ten Series
