Part # 91734452

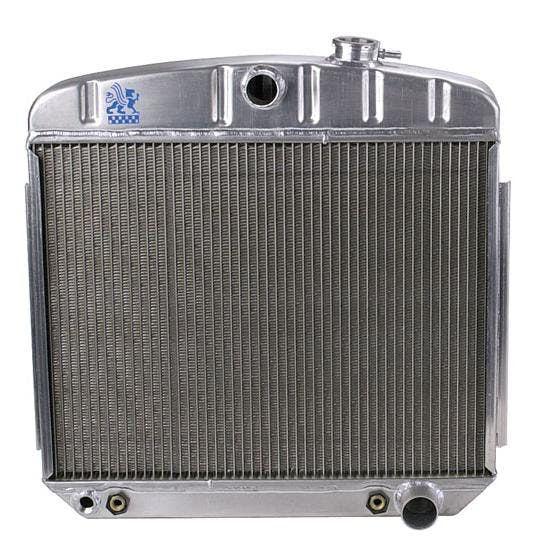

1955-57 Chevy Aluminum Radiator, 1 Inch Tubes
by
$569.99
each
Discontinued
This item is currently not available
Shop all Radiators
Key Specs
| MFG. Part # | 91734452 |
| Radiator Style | Single Pass |
| Radiator Flow Direction | Downflow |
| Material Type | Aluminum |
| Finish | Natural |
See more specs
Need To Know
This Product Will Ship Free
Quick and Easy Returns
Details
Details
The radiator of choice for those of you that normally run hot or are making a lot of power. Two row with 1" tubes and includes a built-in automatic transmission cooler.
Fits 1955-57 Chevy cars with S/B or B/B. Mounts behind the radiator support (like the original V-8 radiator).
- Height: 22" (top of top tank to bottom of bottom tank)
- Width w/ brackets: 23.25"
- Upper Tank Thickness: 3"
- Lower Tank Thickness: 3"
Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.
Specifications
Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91734452 |
| Brand | Griffin Radiators |
| Radiator Style | Single Pass |
| Radiator Flow Direction | Downflow |
| Material Type | Aluminum |
| Finish | Natural |
| GENERAL | |
| Inlet Location | Center |
| Outlet Location | Lower passenger side |
| Row Quantity | 2 |
| Tube Size | 1.00" |
| Overall Width Range | 22.00" to 22.99" |
| Overall Width | 22.00" |
| Overall Height Range | 22.00" to 22.99" |
| Overall Height | 22.00" |
| Overall Thickness | 3" |
| Core Width Range | 21.00" to 21.99" |
| Core Width | 21.68" |
| Core Height Range | 16.00" to 16.99" |
| Core Height | 16.38" |
| Core Thickness | 2.25" |
| Transmission Cooler | Yes |
| Filler Neck Height | 1.00" |
| Inlet Size | 1.50 |
| Fan Included | No |
| Notes | 1/4" NPT fittings for transmission cooler. 3/8" NPT fitting for sensor. 1/4" NPT drain fitting. |
| Sold in Quantity | Each |
