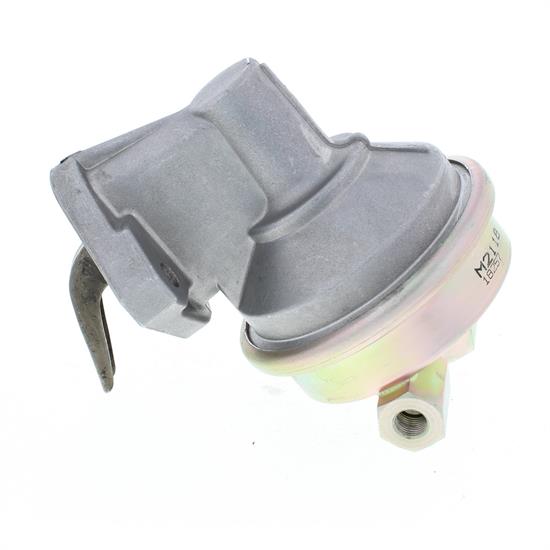

1953-1957 235 Chevy 6 Cylinder Fuel Pump

#5794149

1953-1957 235 Chevy 6 Cylinder Fuel Pump

Name: 1953-1957 235 Chevy 6 Cylinder Fuel Pump
Brand: Speedway Motors
SKU: 5794149
Price: 68.99 USD
Availability: Discontinued
Rating: 4.4 (15 reviews)

15 Reviews

7 Questions

Designed to meet or beat OE specs
Factory tested to ensure performance and long life
Zinc-plated for rust and corrosion prevention

Discontinued

This item is currently not available

Shop all Speedway Mechanical Fuel Pumps

Product Summary

Gasoline Fuel Type, 5.5 psi Maximum Pressure, Aluminum

Designed to meet or beat OE specs
Factory tested to ensure performance and long life
Zinc-plated for rust and corrosion prevention
1953-1957 Car w/235 std. engine, 1952-1957 Pickup w/ 216 or 235 std. engine
1/8-inch NPT fitting

See more details

Key Specs

Fuel Type	Gasoline
Maximum Pressure	5.5 psi
Fuel Pump Inlet Size	1/8" NPT
Fuel Pump Outlet Size	1/8" NPT
Material Type	Aluminum

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 5794149 Details

You arent going to get very far if your fuel pump isnt pumping fuel to your Chevy's carburetor! These 100% brand new fuel pumps are designed to meet or exceed OE specs and are factory tested to ensure performance and long life before they leave the factory.

Item Details

1954 Chevrolet 1500 (Liter: 3.8, 4.3 & Engine(ci): 235, 261

1953 Chevrolet Corvette (Liter: 3.8, 3.9 & Engine(ci): 235, 236

1952-1957 Chevrolet Truck (Liter: 3.8, 3.5, 4.3 & Engine(ci): 235, 216, 261

1952 Chevrolet Fleetline (Liter: 3.5, 3.8 & Engine(ci): 216, 235

1957 Chevrolet Del Ray (Liter: 3.8 & Engine(ci): 235

1953-1957 Chevrolet One-Fifty Series (Liter: 3.8, 3.9 & Engine(ci): 235, 236

1952 Chevrolet Styleline Deluxe (Liter: 3.5, 3.8, 3.9 & Engine(ci): 216, 235, 236

1952 Chevrolet Styleline Special (Liter: 3.5, 3.8 & Engine(ci): 216, 235

1953-1957 Chevrolet Two-Ten Series (Liter: 3.8 & Engine(ci): 235

1955-1957 Chevrolet Nomad (Liter: 3.8 & Engine(ci): 235

1952-1957 Chevrolet Sedan Delivery (Liter: 3.5, 3.8, 4.3 & Engine(ci): 216, 235, 261

1952-1957 Chevrolet Bel Air (Liter: 3.8, 3.5, 3.9 & Engine(ci): 235, 216, 236

Specs

Maximum Pressure: 5.5 PSI
Gasket Or Seal Included: Yes
Mounting Hardware Included: No
Outlet Fitting Thread Size: 1/8 NPSF IN
Minimum Pressure: 3.5 PSI
Minimum Flow Rating: 20 gph

CARB Warning

For use on pre-1966 vehicles only

Emissions warning: this part only legal for sale or use in California if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. ++any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering there are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Speedway Motors 5794149 Specifications

KEY SPECS
MFG. Part #	5794149
Brand	Speedway Motors
Fuel Type	Gasoline
Maximum Pressure	5.5 psi
Fuel Pump Inlet Size	1/8" NPT
Fuel Pump Outlet Size	1/8" NPT
Material Type	Aluminum
Regulator Required	No

GENERAL
Notes	OEM Spec Replacement
Inlet Quantity	1
Outlet Quantity	1
Sold in Quantity	Each

Ratings & Reviews

4.4

15 Reviews

Overall Assessment

The product, a fuel pump, generally impresses customers for its fit and functionality on 1950s Chevy models; many specifically note its perfect and easy installation. Despite scattered issues with unreliability or non-retracting pump diaphragms, predominant reviews underline a prompt, problem-free start post-installation and robust performance under varied conditions. The pump has also been commended for its affordability. The product's fit and performance notably surpass competitors, particularly with the absence of a hindering spring pin found in rival products. Users overwhelmingly endorse repurchasing.

Write A Review

4.4

15 reviews

Most Liked Positive Review

5.0

1955 235 fuel pump (perfect fit)

The new fuel pump was easy to install and fit perfect. Just a heads up for any one changing one on a 235 6 cyl there is a spring pin sticking out in the way for removing the 2 mount bolts on the old pump making it difficult to get a socket or closed end wrench on. you will not find this problem on the new fuel pump from SPEEDWAY MOTORS .

Most Liked Negative Review

1.0

Totally Unreliable, Be Aware

After professionally installed on my fully-restored 1953 Chevy pickup I was only able to travel a quarter of a mile before the fuel pump quit in full highway traffic! I had to have the pickup towed back to the garage to have the fuel pump replaced with another brand. Now the pickup runs great!

Filter by Ratings

Sort Reviews

worked well and priced fair

5.0

a year ago

joe

Gainesville ga

Verified

worked as described

Would Recommend

Perfect Fit

5.0

3 years ago

Florida Mike

Plant City, Florida

Verified

This fit my 56 Chevy Truck 235 ci engine perfectly

Would Recommend

Totally Unreliable, Be Aware

1.0

4 years ago

Chevy Red

Klamath Falls, Oregon

Would Not Recommend

It worked perfectly, and solved my problem.

5.0

4 years ago

Fede

Montevideo, Uruguay.

Verified

Everything went perfect. Just a minor difference in gas line position, but nothing critical.

Would Recommend

I would this fuel pump again!

5.0

4 years ago

Vinny C.

New York

Verified

This fuel pump worked very well in my '54 Chevy Bel-Air with the 235 six and powerglide trans.

Would Recommend

Just wasn't right from the box .

1.0

5 years ago

Gabe

Los Angeles

Verified

Pump diaphragm doesn't retrack, causing arm to stay up and not return,.

Would Not Recommend

Fit perfectly

4.0

8 years ago

Ttodd

Burns, Tn

Verified

Pump installation was fairly easy

Would Recommend

excellent fuel pump

5.0

8 years ago

davenport automotive

vancouver

Verified

fast shipping, plugged it in and it works great, thanks!!

Would Recommend

Great parts, great service

5.0

8 years ago

Tom

Houston Tx

Verified

Fast, easy, right part

Would Recommend

Just what I needed

5.0

8 years ago

Stefanl

Santa Fe, NM

Verified

easy install, worked on first key turn

Would Recommend

Load More Reviews

Showing 10 of 15 reviews

Questions & Answers

7 Questions • 7 Answers

Sort Questions

What are the size of the intake and output threads and what size of the hose that should go on it?

by Nathan

• 9 years ago

1 answer

View Answer

will this fit on my 56 235 inline 6?

by Paxton

• 9 years ago

1 answer

View Answer

What sizr are the fuel line fittinga on this fuel pump? I bought this for my 58 apache but the engine is a 57 & the fittings seem to be a different size.

by Corey

• 10 years ago

1 answer

View Answer

Is the diaphram in this pump compatable with unleaded gas, i think my /uel pump failure is due to this

by will

• 11 years ago

1 answer

View Answer

need to know what the fuel pressure is on this fuel pump im running twin weber 38s on my 56 235 and need a fuel pump that will keep fuel in these 2 barrel carbs

by hoozat

• 12 years ago

1 answer

View Answer

fuel pump difference hello I would like a new gas pump.. but,how to have good, because peoples talk on web, pump gas for 235 chevy apache or electric or vacuum wipper .. I do not know what year the engine...It seems to be a 1954 if I give you the number of the pumpe would help you. my truck is 1958 chevy apache with 235 3 speed, i have vacuum wippers ,,but I'm looking to put this système electric.. thank to help me in my research.. PIERRE

by PIERRE

• 12 years ago

1 answer

View Answer

will the fuel pump item 57940217 fit my 1958 chevy six cyl 235 engine also do i need any other items to install this on my car if so let me know thanks.

• 15 years ago

1 answer

View Answer
