1941-48 Ford Car Master Cylinder with Pedal Bracket

$220.99

/kit

On Backorder

This part is Backordered. We currently do not have an estimate when this item will ship.


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Frame Position, Disc/Drum Brake System Type

    Comes as a Kit

    View Kit Components

    See more details

    Key Specs

    MFG. Part #91631978
    BrandSpeedway Motors
    Brake System TypeDisc/Drum
    Master Cylinder Bore Size1 Inch
    Reservoir TypeIntegral
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Speedway Motors 91631978 Details

    Bolt a non-boosted master cylinder to your 1941-1948 Ford passenger car frame's original "X" member. The dual feed, 1" bore master cylinder works with 4-wheel disc brakes or disc/drum brake setups. Both fluid outlets are 3/8" -24 inverted flare female.

    Kit includes master cylinder, pedal assembly and hardware.

    Learn more about selecting the proper master cylinder for your vehicle by reading our tech article.Brake System Selection.

    NOTE: Will NOT work in conjunction with the factory clutch pedal. Intended for use with an automatic transmission.

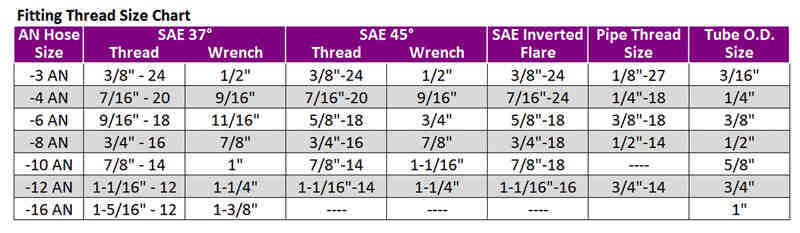

    Charts

    Speedway Motors 91631978 Specifications

    KEY SPECS
    MFG. Part #91631978
    BrandSpeedway Motors
    Brake System TypeDisc/Drum
    Master Cylinder Bore Size1 Inch
    Reservoir TypeIntegral
    GENERAL
    PositionFrame
    Master Cylinder Mount TypeReverse
    Pedals IncludedBrake
    Master Cylinder Count1
    Outlet CountTandem
    Outlet Fitting3/8"-24 IFF
    Outlet Fitting 23/8"-24 IFF
    FinishNatural
    Centerline of Holes3.25"
    Pedal Length12.5"
    Brake Booster IncludedNo
    Balance BarNo
    Sold in QuantityKit
    NotesIncludes master cylinder, hardware, threaded bung, and pedal with pad.

    Ratings & Reviews

    2.7

    3 Reviews

    Overall Assessment

    Customers acknowledge the product for its robust build but highlight that alterations are needed for fitting, meaning it's not a direct bolt-in system. They suggest the necessity of bending the brake pedal bar for optimum installation, particularly with a metal brake or adequate heat. Despite this, customers appreciate the brake system's performance post-installation, particularly in combination with a residual valve. However, due to modification requirements, some find the product better suited for those lacking the original pedal setup.

    Write A Review

    2.7

    3 reviews

    5

    0

    4

    1

    3

    1

    2

    0

    1

    1

    Filter by Ratings

    Bending will be needed

    4.0

    7 years ago

    Stewart

    Nebraska

    Verified

    It's a nicely built product and I was expecting it to be direct bolt in. So the plate that bolts to the x frame is great, u will need to do a little frame trimming. The actual brake pedal bar that goes through the body WILL NEED BENDING with either a metal brake or lots of heat. If you don't bend that your pedal will almost go through the original gas pedal hole. Other than that along with a residual valve the system works great!

    Would Recommend

    Direct fit! No fit

    1.0

    8 years ago

    Chadman

    Cincinnati

    Verified

    I bought this product hoping to make it easy on myself thinking it was as it says. A bolt in part for my car. Not at all. Very frustrated and haven't touched the car since I got the part now

    Would Not Recommend

    Far from a "bolt in" set up!

    3.0

    9 years ago

    Daniel

    Gulfport, Ms.

    Verified

    While this is a very well built and sturdy master brake and pedal kit. BUT.... it is not a bolt on kit! For all the modifications I have had to make to it and to my 41 Ford Sedan frame, I would have been better off just modifying the stock pedal bracket! If I had any idea this would be the case before starting to modify the bracket, I would have sent it back or better yet, never purchased it! I would only recommend purchasing this kit if you do not have the original brake pedal set up.

    Would Recommend

    Showing 3 of 3 reviews

    Questions & Answers

    5 Questions • 5 Answers

    This item will fit a Mercury 1947? it is needed other adapter?

    by Alvaro

    • 7 years ago

    1 answer

    View Answer

    I need a dual master cylinder to convert my 1951 F1 pickup original, but I wish it to also have the booster. Does Speedway have a master cylinder/booster combo that will work on my F1 truck?

    by Terry

    • 10 years ago

    1 answer

    View Answer

    do you offer this in a power brake set-up?

    by ratified

    • 12 years ago

    1 answer

    View Answer

    Will this work on a 1942 Ford 1/2 ton PU, using an automatic transmission?

    by

    • 14 years ago

    1 answer

    View Answer

    Will this fit a 1940 Ford X-Member?

    by

    • 15 years ago

    1 answer

    View Answer

    5 of 5 questions shown
