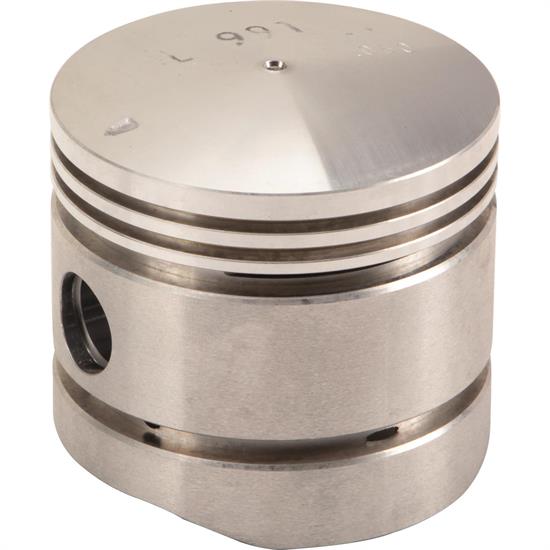

1939-53 Flathead Ford V8 4-Ring Pistons, 4 Inch Stroke, .060 Over
Flat Top Piston Style, Cast Aluminum Piston Material, 3.248" Piston Diameter, 4.000" Stroke
- Features the original 4-ring design
- Comes with snap ring style retainer clips
- Includes precision ground cam and modern steel wrist pins
- Specifically designed for the 1939-1953 Ford Flathead V8 engine
- The pressure cast aluminum construction provides great strength and durability
Original flathead pistons used four rings, were somewhat round, had questionable wrist pins and locks and were made of cast iron. These pressure-cast aluminum pistons share the four-ring design, but are cam ground and use modern steel wrist pins and real snap rings. They’re a great upgrade when rebuilding your 1939-1953 flathead Ford or Mercury V8 engine.
- Original 4-ring design
- Pressure cast aluminum construction provides great strength and durability
- Precision cam ground
- Modern steel wrist pins
- Snap ring style retainer clips
Sizing based on original 3.188" bore. Fits .060" overbore size and 4" stroke crank. Sold as a set of 8.
