#9101417
$1,784.99
/kit
On Backorder
$1,811.99
Save $27.00
This part is Backordered. We currently do not have an estimate when this item will ship.
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Single Pass Radiator Style, Aluminum, 2 Row Quantity
Comes as a Kit
View Kit Components
| MFG. Part # | 9101417 |
| Radiator Style | Single Pass |
| Radiator Flow Direction | Downflow |
| Material Type | Aluminum |
| Inlet Location | Center |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyRadiator

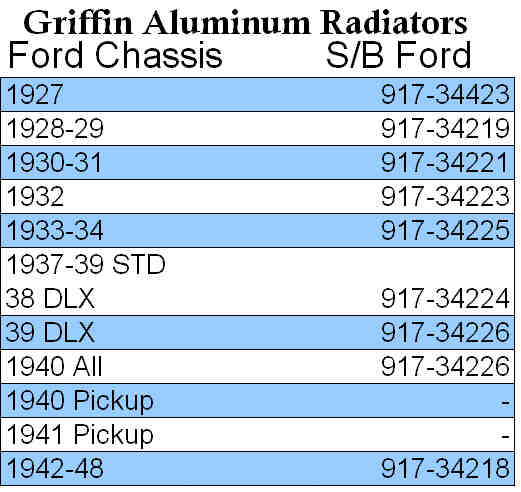

Griffin Aluminum radiators give superior cooling over a brass/copper radiator. They feature 2 rows of 1.25" tubes furnace brazed into the core which provides 40% greater tube-to-fin contact over a copper/brass radiator. These radiators are designed for use on 1932 Ford Chassis with a small block Chevy engine.
Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article.Radiator Cooling Performance.
Grille Shell
For as long as the 32 for grille and shell have been reproduced the age old struggle is getting them to cooperate with each other. Fitment issues, just like there were on Henry's assembly line, need addressed by a competent body man and can consume valuable time during a build. Speedway has sourced this grille and shell combo from the experts at Brooksville who take the time to match and massage grille shells and grilles. This allows you to forge ahead in your model A and and 32 projects without the regular hassle and delays.
Charts
| KEY SPECS | |
|---|---|
| MFG. Part # | 9101417 |
| Brand | Speedway Motors |
| Radiator Style | Single Pass |
| Radiator Flow Direction | Downflow |
| Material Type | Aluminum |
| Inlet Location | Center |
| Outlet Location | Lower passenger side |
| Row Quantity | 2 |
| Tube Size | 1.25" |
| Overall Width Range | 17.00" to 17.99" |
| Overall Width | 17.38" |
| Overall Height Range | 27.00" to 27.99" |
| Overall Height | 27" |
| Overall Thickness | 3" |
| Core Width Range | 22.00" to 22.99" |
| Core Width | 22" |
| Core Height Range | 17.00" to 17.99" |
| Core Height | 17.375" |
| Core Thickness | 2.69" |
| Finish | Natural |
| Cooling Fan | Not Included |
| Transmission Cooler | Yes |
| Shroud Included | No |
| Inlet Size | 1.5 |
| Outlet Size | 1.75 |
| Radiator Cap Included | No |
| GENERAL | |
| Sold in Quantity | Kit |
| Fan Included | No |
Be the first to ask a question.
1932 Ford 1 Ton Pickup
1932 Ford 1/2 Ton Pickup
1932 Ford 3/4 Ton Pickup
1932 Ford Model 18
1932 Ford Model B
1932 Ford Model BB
1932 Ford Sedan Delivery
