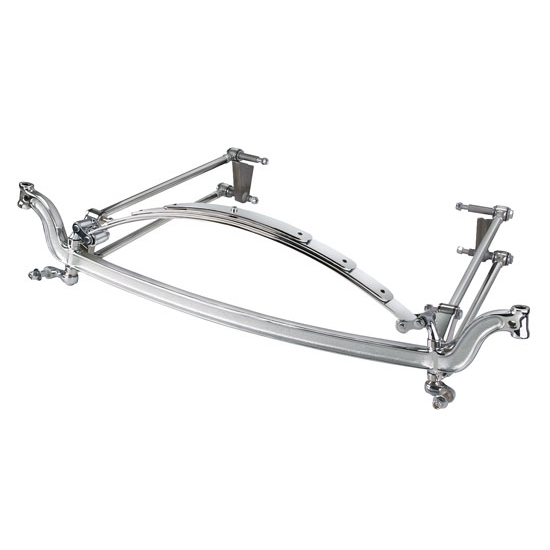

1932-34 Ford 4-Bar 46 In I-Beam Axle Kit for Ford Spindles, Chrome
1932-34 Ford 4-Bar 46 In I-Beam Axle Kit for Ford Spindles, Chrome

1932-34 Ford 4-Bar 46 In I-Beam Axle Kit for Ford Spindles, Chrome

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
1932-34 Ford 4-Bar 46 In I-Beam Axle Kit for Ford Spindles, Chrome
1932-34 Ford 4-Bar 46 In I-Beam Axle Kit for Ford Spindles, Chrome
Zoomed In Image
Part # 91639643
$1,409.99
kit
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
What's In The Kit
Reviews
Q&A
Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Front Suspension Type:
Straight Axle
Control Arm Style:
4-Bar
Shock Type:
Not Included
Spring Type:
Leaf Spring
Finish:
Chrome
Spindle Type:
Ford

Info

Save yourself searching and confusion with these complete 1932-34 Ford front suspension kits. Each kit includes a 46" wide 4" drop I-beam axle, our famous urethane-bushed 21" long four bar assembly, perch bolts, lower shock mounts, spring shackles, Super Glide spring and the necessary brackets and hardware needed for assembly.

Requires '37-'48 Ford passenger car spindles.

Each kit includes:

  • 46" kingpin-to-kingpin I-beam axle, 4" drop
  • Urethane-bushed 21" long 4-bar assembly
  • Forged steel perch bolts
  • Forged steel lower shock mounts (key-slotted design)
  • Spring shackles w/ nylon bushings
  • 29" eye-to-eye 4-leaf Super Glide cross spring
  • All hardware for assembly

Front Axle/Suspension Tech Tips (GIF)

Notes

We strongly reccommend the use of a front panhard bar (such as our 910-49801) with four bar front suspensions. Four bar suspensions increase suspension travel over original wishbones or radius rods, which increases the need for side-to-side axle control. If using a Vega cross steering system, the panhard bar becomes mandatory as any side-to-side movement will cause bump steer.
Some parts are not legal for use in California or other states with similar laws/regulations

Related Products

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Super Bell Axle 1041C Chrome 28-36 Ford 46 In I-Beam Axle, 4 Inch Drop
    Qty x 1
  • Super Glide® Front Spring, 46 In Axle, Reverse Eye, Chrome
    Qty x 1
  • Speedway Front Solid Axle Leaf Spring Perch, Chrome Forged Steel
    Qty x 1
  • Speedway Forged Steel Lower Shock Mounts for Front Solid Axle, Chrome
    Qty x 1
  • Speedway 1-3/4 Nylon Spring Shackle Kit w Bushings Chrome Finish-Pair
    Qty x 1
  • Stainless Jam Nut, 5/8 Inch-18 RH NF Fine Thread
    Qty x 4
  • Speedway Stainless 4-Bar Rod End, 5/8-18 RH Thread, Straight Shank
    Qty x 4
  • Polished Stainless Steel 4-Bar Batwing Brackets w/ Mounts, Pair
    Qty x 1
  • FRM BRKTS-Front 4 Bar 32/34
    Qty x 1
  • CHR Bolt & Nut Set - 4 Bar Kit
    Qty x 1
  • 21-1/2 Inch Four Bar Rods
    Qty x 1
