Product Summary

2.15" Overall Width, 3.75" Overall Height, Polished

  • Polished stainless steel design
  • Made to specifically fit the 1930-1931 Model A
  • Features two hole mounting bracket
  • Spring loaded for easy access
  • Better-than-original reproduction

Key Specs

MFG. Part #91122503
BrandSpeedway Motors

Need To Know

Free Shipping on Orders Over $149

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Speedway Motors 91122503 Details

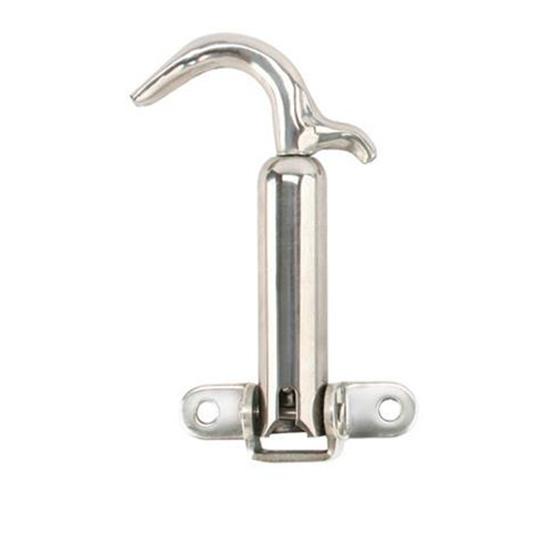

These quality reproduction 1930-1931 Ford Model A hood latches are spring loaded and come in a stainless steel finish.  They feature a two-hole mounting bracket and they mock the original style for a perfect look and latch every time.  This latch mounts to the frame easily with two screws.

  • Two hole mounting bracket
  • Spring loaded
  • Stainless steel finish

NOTE: 1928-31 did not make use of a hood bracket, instead the hood was stamped for the latch. We do offer part #91132503 that does include hood clip.



Application

  • Two hole mounting bracket
  • Mounting holes are 1-5/8" center to center
  • From mounting surface to top of main body is 2-1/2"
  • Main body is 2-7/16" long
  • From mounting surface to tip of hold down finger is 3"
  • From mounting surface to inner radius of hold down finger is 3-3/8"
  • From center line of main body to tip of hold down finger is 1-1/2"
  • Specs

  • Two hole mounting bracket
  • Mounting holes are 1-5/8" center to center
  • From mounting surface to top of main body is 2-1/2"
  • Main body is 2-7/16" long
  • From mounting surface to tip of hold down finger is 3"
  • From mounting surface to inner radius of hold down finger is 3-3/8"
  • From center line of main body to tip of hold down finger is 1-1/2"
  • Speedway Motors 91122503 Specifications

    KEY SPECS
    MFG. Part #91122503
    BrandSpeedway Motors
    GENERAL
    Speedway Motors Catalog Part #911-22503
    Overall Width2.15"
    Overall Height3.75"
    Mounted Height3.00"
    Centerline of Holes1.63"
    Material TypeStainless Steel
    FinishPolished
    Sold in QuantityEach
