Racing Engine Breather

SAME DAY SHIPPING! Order within the next 10 hours 27 minutes and receive same day shipping

Specs
Material Type:
Aluminum
Overall Height:
4.50
Sold in Quantity:
Each
Finish:
Polished

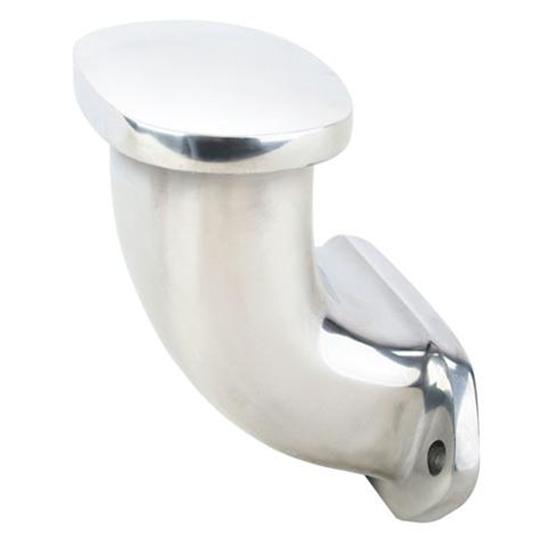

Racing Engine Breather
Racing Engine Breather
Racing Engine Breather

Click image to enlarge

Details

Reviews

Q & A

What's in the Box

It's made of polished cast aluminum and is 4" tall. The base measures 1-3/4" x 4-3/4". The top of this breather is NOT removeable.  Breather includes a lower baffle plate in addition to featuring internal layer type baffle where one plate is over the other.  It allows the air to breath, but keeps the oil baffled below.

Includes mounting bolts/nuts, breather baffle plate, and gasket.

Breather Cut-Away View (GIF)

Specs

  • Overall Height:  4-1/2"
  • Top:  3-7/8" x 2-3/8"
  • Mount Surface:  4-3/4" x 2"
  • Bolt Center for Mounting:  4" center-to-center

Customer Reviews

Rated 4.3 out of 5 by 4 reviewers.
RATING BREAKDOWN
4 reviews
5 Stars
2
4 Stars
1
3 Stars
1
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

none
Verified Purchaser
Fremont Ne.

RACING ENGINE BREATHER

July 14, 2015
These breathers solved my problem with a very built 348 Chevy engine. Great product, heavy duty, nice polish job. Thanks, Gary
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

ashcan
Verified Purchaser

great looking breathers

September 18, 2014
only complaint is that the lock nuts broke the stainless button head bolts before they got tight. had to go find replacements.
Cons:
  • see above
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

tfeverfred
Houston, TX, USA

Splash shield

November 08, 2013
The inner splash shield rubbed my rocker arms, so I removed it. I was getting a very minor leak at the cork gasket, so I replaced it with a paper/plastic gasket. In the future, I'll scuff the breather and valve cover surface to aid the RTV in sealing. Other wise, a very nice piece.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

ROGER
DETROITE

SWEET

March 29, 2010
VERY NICE
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

4 questions : 4 answers

1 answers

Who is the actual manufacturer of these? These look really good. Are they an actual 90 degree, and who is the actual manufacturer on these?

Artie
Bristol, TN, USA
September 25, 2013

Who is the actual manufacturer of these? These look really good. Are they an actual 90 degree, and who is the actual manufacturer on these?

Answers

September 25, 2013
Jason
These nostalgia breathers are actually about 100 degrees and not a true 90. These are a Speedway Motors manufactured part. The top of the breather is not removable. Overall height - 4-1/2" Top measurees - 3-7/8" by 2-3/8" Mount surface measures - 4-3/4" by 2" Bolt center for mounting - 4 "
1 answers

Racing Engine Breather Do you have these with finned top covers?, How does this breath, Is it drilled out under the top cap? Thanks! Tony

Skyndlyve
Florence, KY.
February 24, 2013

Racing Engine Breather Do you have these with finned top covers?, How does this breath, Is it drilled out under the top cap? Thanks! Tony

Answers

February 25, 2013
Jason
Sorry, we only offer this breather with the smooth top. This breathes from the under side of the top of breather. The top is not removable. Includes mounting bolts, breather baffle plate and gasket
1 answers

what is the size opening, the bolt spacing and overall size of the base? thank you. JIM

JIM
Georgia
August 25, 2011

what is the size opening, the bolt spacing and overall size of the base? thank you. JIM

Answers

August 26, 2011
Jason
THE TOP OF THIS BREATHER IS ((NOT)) REMOVABLE. OVERALL HEIGHT: APP. 4-1/2" TOP MEASURES: APP 3-7/8" x 2-3/8" MOUNT SURFACE MEASURES: APP 4-3/4"x 2" BOLT CENTER FOR MOUNTING: APP. 4"CENTER-TO-CENTER INCLUDES MOUNTING BOLTS/NUTS,BREATHER BAFFLE PLATE,AND A GASKET.
1 answers

Is the top removable

Okc.,ok
December 23, 2011

Is the top removable

Answers

December 27, 2011
Jason
THE TOP OF THIS BREATHER IS ((NOT)) REMOVABLE. OVERALL HEIGHT: APP. 4-1/2" TOP MEASURES: APP 3-7/8" x 2-3/8" MOUNT SURFACE MEASURES: APP 4-3/4"x 2" BOLT CENTER FOR MOUNTING: APP. 4"CENTER-TO-CENTER INCLUDES MOUNTING BOLTS/NUTS,BREATHER BAFFLE PLATE,AND A GASKET.
Page 1 of 1
