Universal Fit, 15 Inch Wheel Diameter, 4.5" Width, Raw
| MFG. Part # | X545C475G23 |
| Wheel Diameter | 15 Inch |
| Width | 4.5" |
| Wheel Bolt Pattern (in.) | 5x4.75 in. |
| Wheel Bolt Pattern (mm) | 5x120.65 mm |
Need help?
855.313.9176Quick and Easy Returns

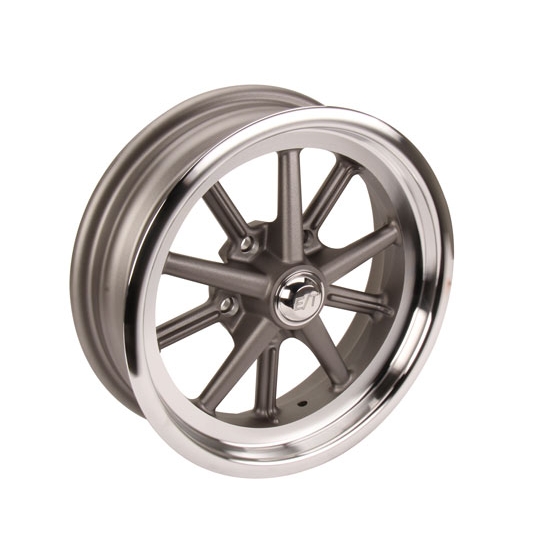

Return PolicyThese 15 inch wheels will give your car that "wheels-up," fuel altered look! Back in the 1960's the only way you could get these were in a spindle mount without any brakes. Looked good, but stopping was scary. Forty years later they finally got it right. These 4.5 inch width wheels bolt on just like any other wheel. They just look better. This is a one piece cast wheel with a high luster, precision machined outer face.
Designed for T-Buckets, Willys, Anglias, High Boys, Pro Streets or any Rod that wants that nostalgic “wheels up” look of yesteryear. The really special part about this 15 inch wheel is that it’s a bolt on! (You didn’t notice the lug nuts did you?) That allows the E-T Gasser to be used with brakes. Bolt pattern is 5 on 4-3/4" and is designed to fit straight axle or independent front ends. Construction is all aluminum. Wheels have a machined rim and a painted "as-cast."
Charts
| KEY SPECS | |
|---|---|
| MFG. Part # | X545C475G23 |
| Brand | E-T Mags |
| Wheel Diameter | 15 Inch |
| Width | 4.5" |
| Wheel Bolt Pattern (in.) | 5x4.75 in. |
| Wheel Bolt Pattern (mm) | 5x120.65 mm |
| Wheel Backspace | 2.5" |
| Wheel Material Type | Aluminum |
| Wheel Offset | -13 mm |
| Wheel Backspace Range | 2.000" - 2.499" |
| Finish | Raw |
| Color | Natural |
| Beadlock Included | No |
| Material Type | Aluminum |
| Bolt Pattern | 5 on 4.75" |
| Diameter | 15" |
| GENERAL | |
| Sold in Quantity | Each |
| Notes | 2.375 HUB CAP CENTER. FROM BACK: 2.93 DIA X .62 DEEO TAPERS TO 2.59 DIA AT 1-5/8 TO 2-3/4 DEEP TO HUB CAP RIB. |
| DOT-Approved | Yes |
| Wheel Center Finish | Painted |
| Wheel Rim Finish | Polished |
| Center Bore Diameter | 2.375" |
| Valve Stem Included | No |
| Lug Nut Seat Style | 60 Degree Conical |
| Center Cap Included | Yes |
| Lug Nuts Included | No |
| Beadlock | No |
4.8
42 Reviews
Customers have overwhelmingly praised the product for its superior quality, aesthetic appeal, and excellent fit. They've embellished their classic and project cars, particularly gassers, with the wheels, transforming their appearance. Despite complaints about needing to machine hubs for a perfect fit, customers are satisfied with the product's performance. Its lightness, strength, and great looks are highlighted, with several customers confirming repurchase intent. However, there was dissatisfaction due to machining issues affecting the application of lug nuts. The wheels' vintage charm and ideal fit to achieve a 1960s look have garnered extensive recommendations.
4.8
42 reviews
5
37
4
3
3
1
2
0
1
1
Most Liked Positive Review
5.0
This is a great looking wheel for a hot rod.
The finish of these wheels are outstanding and they look so much better than the mags that were on my car. Although I was a little worried about the hub clearance it turned out to be a non issue and the wheels fit on the hubs with no problem. Definitely a good idea to check before installing though. One problem I ran into was that the stock wheel studs {late gm rotor/hub} were too short and would only give me 3-4 threads for the lug nuts. For my application I found that ARP 100-7702 were a direct replacement and just needed to be cut to length after installing. Another issue that I ran into once they were mounted was with the push in center cap being very loose. I think it might be that the o-ring diameter is too small. I wouldn't run them on the street as they are. I've contacted ET about it but haven't heard back from them yet.
Most Liked Negative Review
1.0
Nope
I cannot use the wheels as supplied by speedway on my wilwood hubs, supplied by speedway. I dont think these wheels were fully machined. You cannot fit a lug nut in them so it reaches the seat. Not pleased at all. the lug seat is not machined and you cannot fit even a 3/4" socket past the recess. If someone made lug nuts that would fit into these wheels, i cannot find them. Speedway says they dont have any that will fit and blamed it on the 1/2 lug studs, that came with the wilwood hubs.
Filter by Ratings
Nice wheels
5.0
4 months ago
Doormaster
Montclair CA
Verified
Wanted the gasser look for my 55 Bel Air and they look great
Would Recommend
yes
5.0
5 months ago
Burnout
Lynn Haven Fl.
Verified
All good , Good fit , great product. had problem with center cap fit called Team III they got right on it & fixed it. Hats off to Team III great service !
Would Recommend
Yes
5.0
6 months ago
Matrix
Pa
Verified
Nice finish of parts
Would Recommend
great product, a must for the gasser look
5.0
7 months ago
amears
lubbock, texas
Verified
these are beautiful, they complete the look
Would Recommend
Gasser wheel
5.0
7 months ago
The2chance
Antioch Ca.
Verified
Nice quality wheel , looks great and nice polish job A+ for ET on these !
Would Recommend
This is a great looking wheel for a hot rod.
5.0
7 months ago
Kev
Birmingham, IA
Verified
The finish of these wheels are outstanding and they look so much better than the mags that were on my car. Although I was a little worried about the hub clearance it turned out to be a non issue and the wheels fit on the hubs with no problem. Definitely a good idea to check before installing though. One problem I ran into was that the stock wheel studs {late gm rotor/hub} were too short and would only give me 3-4 threads for the lug nuts. For my application I found that ARP 100-7702 were a direct replacement and just needed to be cut to length after installing. Another issue that I ran into once they were mounted was with the push in center cap being very loose. I think it might be that the o-ring diameter is too small. I wouldn't run them on the street as they are. I've contacted ET about it but haven't heard back from them yet.
Would Recommend
I would buy this product again.
5.0
7 months ago
snowbunny
spring Tx.
Verified
looked great fit as expected
Would Recommend
I really like my new wheels.
5.0
a year ago
Joe
Greenwich, Ohio
Verified
The wheels are great, they worked out perfect.
Would Recommend
Yes looks great on my 32 three window
5.0
a year ago
32-3
McDonough Ga.
Verified
I'm using them on my 32 ford just put them on to make it a roller and they look perfect
Would Recommend
Awesome wheels
5.0
a year ago
T-Bucket Tom
Cape may Nj
Verified
Awesome wheels, excellent packaging,and really look great on the front of my t-bucket
Would Recommend
Showing 10 of 42 reviews
14 Questions • 10 Answers
What is the weight of this wheel?
by Cole
• 2 years ago
1 answer
View Answer
Can you tell me the center bore diameter?
by Darin
• 3 years ago
1 answer
View Answer
Would these wheels fit a 1977 Camaro front rotor setup?
by Antonio
• 7 years ago
1 answer
View Answer
Hello, I just bought your Chevy 2 Gasser Front Kit (P/N 916-62067) Which has the 1949 to1954 Chevy Passenger Car Modified Spindles (P/N 91032100) & I bought your (P/N 910-86267-4.75 Gasser Brake Kit.Now my question is: Will these wheels fit my application & what would you suggest for tires ? Regards : Larry Dent Customer # 1916510
by Lar
• 9 years ago
1 answer
View Answer
Will these wheels fit on kit number 9133901
by bill
• 9 years ago
1 answer
View Answer
I purchased these wheels and a Wilwood 835140152 disc brake kit for 49-54 Chevy spindles.. The wheel studs on the Wilwood hubs stick out to the end of the wheel cap. The Wilwood wheel studs are 1/2 x20x3" I was send 7/16 short lug nuts by the tech helpline.who helped me place the order. Do I need wheel spacers. or special long lug nuts to cover the long studs ( which may look odd)
by Crawfgw
• 10 years ago
1 answer
View Answer
Can wheels,tires &valve stems be bought already mounted?
by Pop
• 10 years ago
1 answer
View Answer
What is the correct style lugnut for these wheels? My car has 7/16-20 studs.
by Travis
• 10 years ago
1 answer
View Answer
What size valve stem does this require? Will metal screw on ones also work?
by Travis
• 10 years ago
1 answer
View Answer
Does this come in a 14" wheel?
by Mike
• 10 years ago
1 answer
View Answer
10 of 14 questions shown
