Zinc-Plated 1 In. Steel Turn Singal Compression Spring, Bag of 6

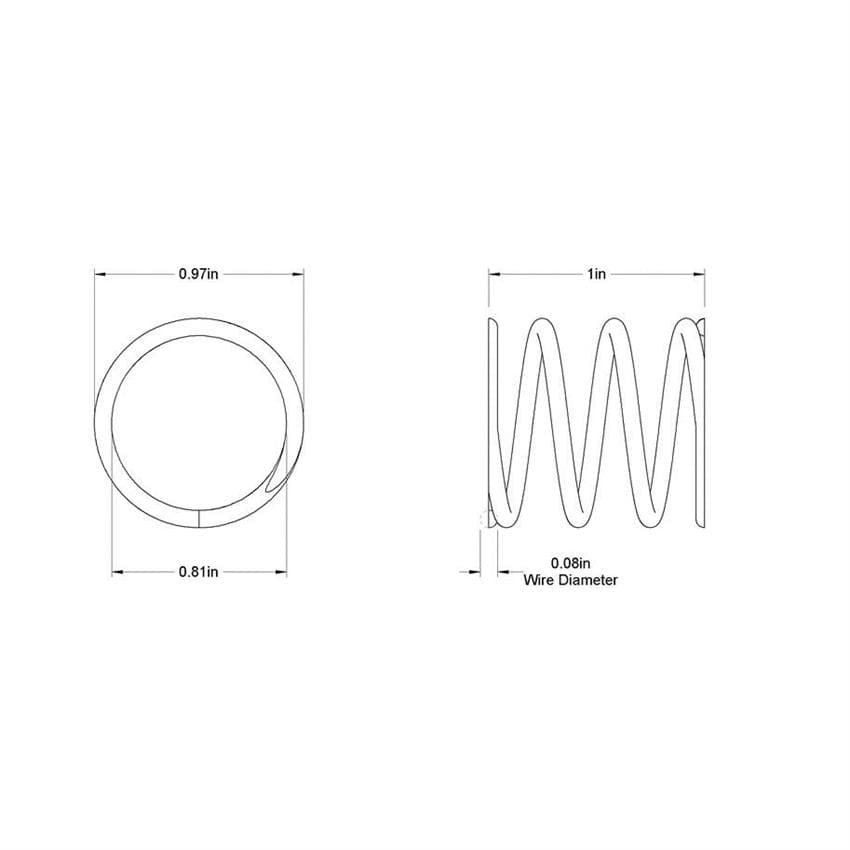

This Compression Spring is designed to deliver reliable performance in load-bearing applications where consistent force is required. Measuring 1 inch in length with a 0.97-inch outside diameter and 0.81-inch inside diameter, it is constructed from zinc-plated music-wire steel for durability and mild corrosion resistance. With closed and ground ends, the spring sits flat and resists buckling under load. Rated for a maximum load of 22.5 lbs with a spring rate of 42.8 lbs/in., it compresses to 0.47 inches at maximum load, making it ideal for precision mechanical applications.

• Zinc-Plated Music-Wire Steel
• 1" Length
• 22.5 lbs Maximum Load

• Spring Type: Compression
• Length: 1"
• Outside Diameter (OD): 0.97"
• Inside Diameter (ID): 0.81"
• Wire Diameter: 0.08"
• Compressed Length @ Max Load: 0.47"
• Maximum Load: 22.5 lbs
• Spring Rate: 42.8 lbs/in.
• Material: Zinc-Plated Music-Wire Steel
• End Type: Closed and Ground
• Corrosion Resistance: Mild (zinc plating)
• System of Measurement: Inch
