#8027076

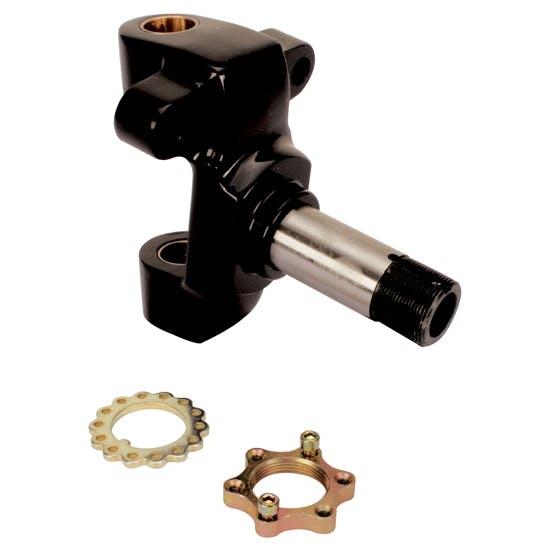

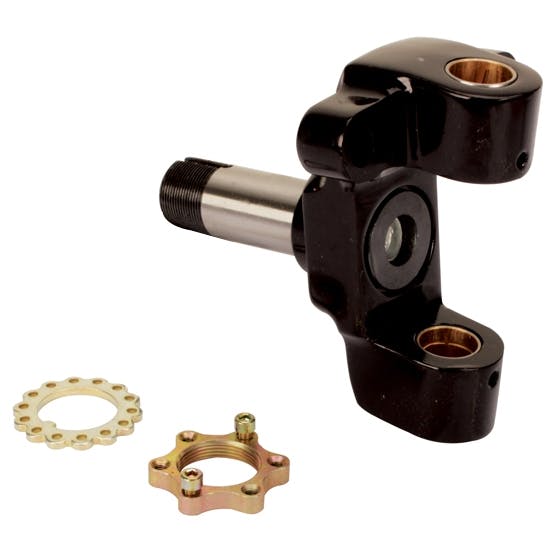

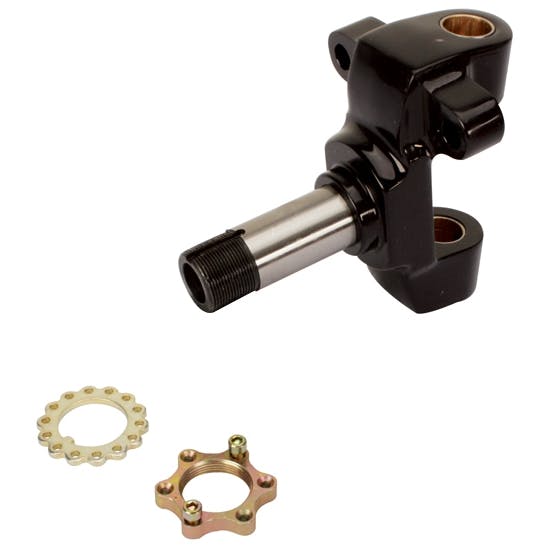

Winters Performance 3622 Black Sprint Aluminum Spindle, Steel Snout
2 Reviews
|
Ask a Question
- Strong aluminum construction with a steel snout and weighs in at just under 2.5 pounds
- Innovative spindle nut design makes it impossible for the nut to work itself loose
- Fits Sprint Car axles that accept a 5.6" long kingpin such as 94035014 (steel) or 54601440 (titanium)
See More
$170.99
each
On Backorder
This part is Backordered. We currently do not have an estimate when this item will ship.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Sprint Car, Left or Right Position, Aluminum, Anodized
- Strong aluminum construction with a steel snout and weighs in at just under 2.5 pounds
- Innovative spindle nut design makes it impossible for the nut to work itself loose
- Fits Sprint Car axles that accept a 5.6" long kingpin such as 94035014 (steel) or 54601440 (titanium)
- 3-1/4" steering arm bolt spacing allows for use of most commonly available Sprint Car steering arms
- High quality black anodized finish is perfect for blacked out builds
See more details
Key Specs
| Position | Left or Right |
| Spindle Style | Sprint |
| Spindle Drop | Stock Height |
| Brake System Type | Disc |
| Material Type | Aluminum |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyWinters 3622 Details
Winters 3622 Details
Equip your sprint car with spindles from one of the top names in racing - Winters Performance Products. These anodized black aluminum spindles have 3-1/4” bolt spacing and steel straight snouts. The innovative spindle nut design makes it impossible for the nut to work itself loose when racing.
- Strong aluminum construction
- Steel snout
- Common 3-1/4" bolt spacing
- Spindle nut design will not work loose when racing
- Weight: 2.470 lbs.
Fits sprint car axles that accept a 5.6" long kingpin, such as 940-35014 (steel) or 546-01440 (titanium).
Winters 3622 Specifications
Winters 3622 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 3622 |
| Brand | Winters |
| Position | Left or Right |
| Spindle Style | Sprint |
| Spindle Drop | Stock Height |
| Brake System Type | Disc |
| Material Type | Aluminum |
| Snout Material | Steel |
| Finish | Anodized |
| Color | Black |
| King Pin Included | No |
| Mounting Bolt Center to Center | 3.25" |
| GENERAL | |
| King Pin Diameter | 0.86" |
| King Pin Length | 5.6" |
| Weight | 2.47 lbs. |
| Sold in Quantity | Each |
| Notes | spindle 1-3/16-18,retainer #10-32 |
