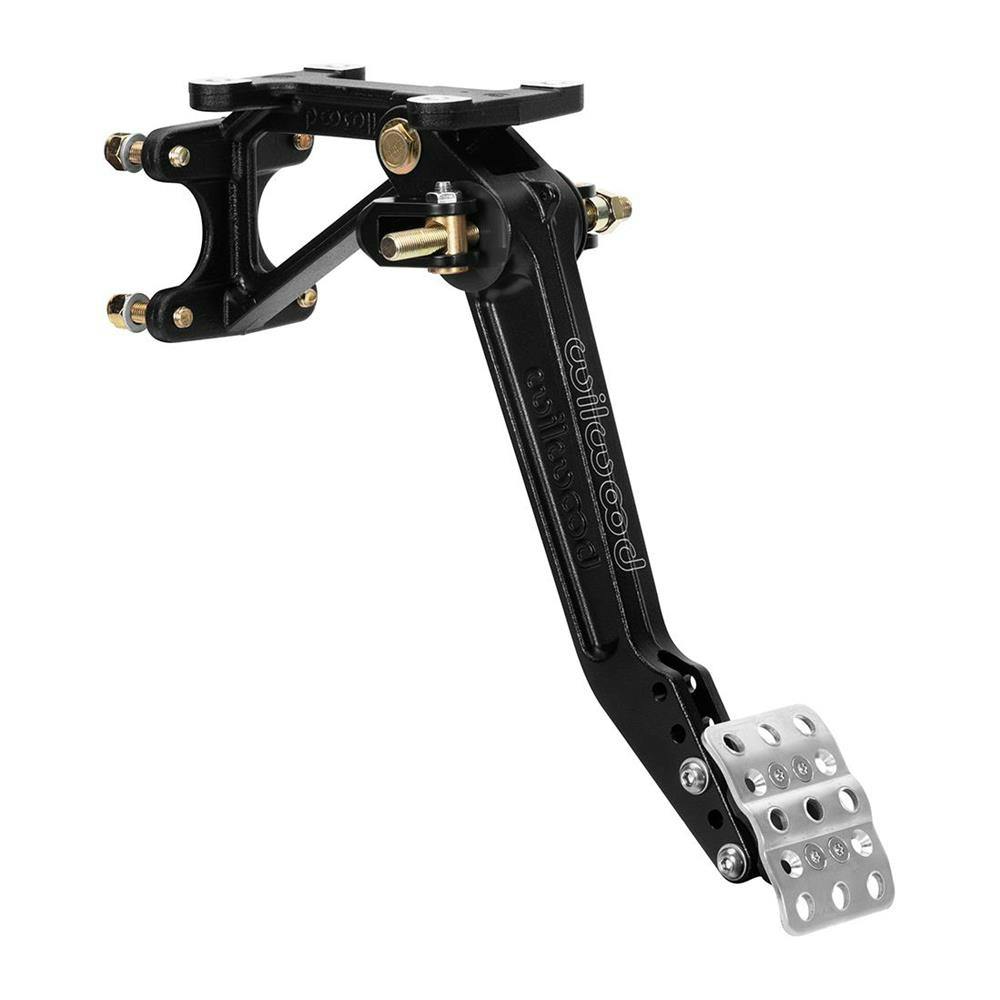

Brake Pedal Assembly

Swing Mount Brake Pedal-Adjustable Ratio

• Adjustable ratio balance bar brake pedal, in a forward swing hanging assembly
• Pedal head adjusts vertically to provide a 6.25, 6.63, or 7.00:1 ratio for more feel or less pedal effort
• Two brake master cylinders mount to the assembly through the firewall, with an adjustable balance bar providing front to rear brake bias fine tuning
• The non-skid waffled pedal pad can be laterally adjusted 1/2 inch in either direction for driver preference
• The pedal feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arm
• The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and can be locked in place with the included jam nut, or used with an optional remote knob for quick on-track adjustments
• A pin and clevis pushrod attachment system ensures the smallest possible misalignment angle for bind free operation through the entire range of travel
• This pedal accepts any two Wilwood 2.25 inch vertical mount flange single outlet master cylinders

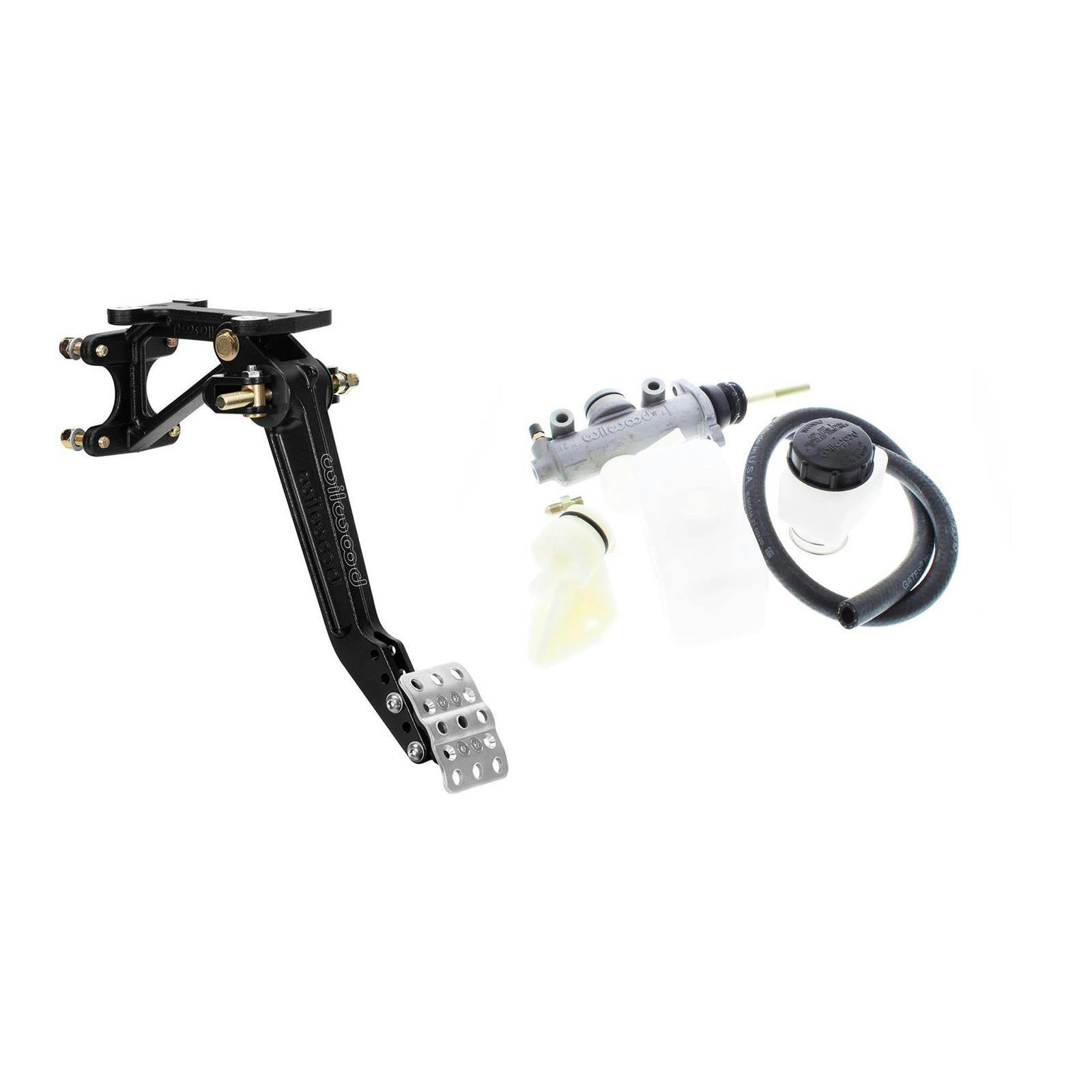

Remote Master Cylinder

Six different bore sizes and four different installation configurations are available in this master cylinder kit. Precision machined from high strength aluminum, this kit includes both small and large size reservoirs which can be mounted for more convenient service access. Standard mounting bolt hole configurations provide easy applications for racing and off road vehicles, specialty cars, recreation and industrial vehicles.

Bore sizes available include: 5/8", 3/4", 7/8", 13/16", 1", 1-1/8".

• Includes small and large reservoirs which can be direct or remote mounted
• Aluminum cylinder with plastic reservoir tank
• Mounting flange is a vertical pattern on a 2-1/4" on center
• Master cylinder has a single 3/8-24 brake line outlet
• The two side mount holes are 3" from center to center

Learn more about selecting the proper master cylinder for your vehicle by reading our tech article. Brake System Selection.

70174 Instructions(PDF)
