Wilwood 170-3265 Pro Street Front Brake Hat, Mustang 5 Lug, 5 x 4.50
Write a Review
Ask a Question
Order soon, only 1 left in stock!
Add to a list
Select a vehicle to verify Fitment
Universal Fit, 1.25" Offset, 6.32" Outside Diameter
See more details
See more specs
Need To Know
Free Shipping on Orders Over $149Shipping Policies & FAQs
View the Help Center
Quick and Easy ReturnsReturn Policy

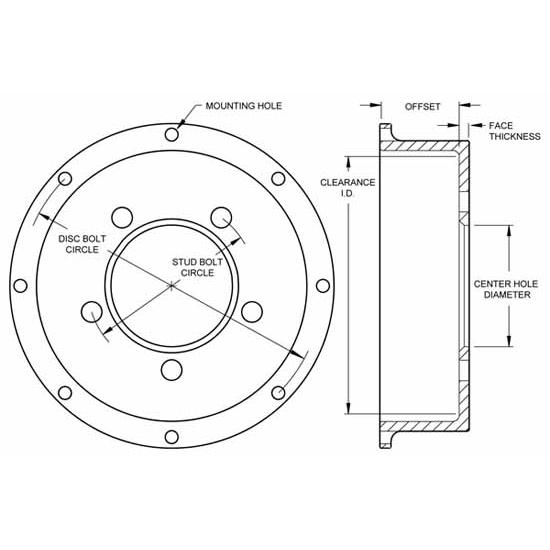

Wilwood's Pro Street Series Fixed Mount Rotor Hats have a long standing reputation for fit, performance, and durability. HD Series hats are manufactured from premium grade aluminum alloys offering high strength, low weight, and show quality appeal. HD hats have not only been a mainstay in many of Wilwood's racing disc brake conversion kits, but they can cover a range of applications from an OE four lug axle shaft to a Grand-National stock car racing hub. Pro Street hats feature a straight bell construction with a flanged rotor mount ring, with through holes for use with threaded-hole, 8 x 7.62 mount rotors. These features combine to provide maximum radial clearance between the caliper body and the hat. This can be a critical factor when trying to squeeze a large caliper inside a small wheel. Many hats offer multi-lug wheel patterns for added versatility. Some hats can be ordered blank for custom axle building and other unique applications.
Threaded hole hats for use with though-hole mount rotors. When used with matching Wilwood rotor hardware, these hats provide solid mounting for a wide range of custom and competition disc brake applications.
|Rotor Hat Bolt Pattern||8 x 7.62"|
|Hat Mount Style||Fixed Mount|
|Hat Mount Hole Type||Thru Hole|
|Hat Bolt Circle 1||5 x 4.50|
|Mount Hole Size||0.323"|
