Part # 820Z5121

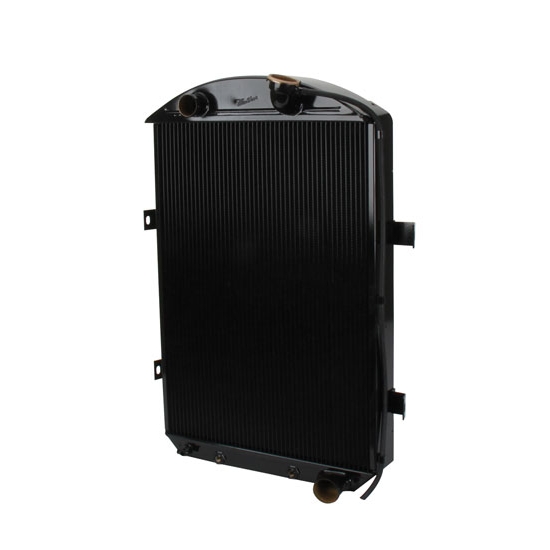

Walker Z-512-1 Z-Series 1932 Chevrolet Radiator

by

|

$969.99

each

Discontinued


This item is currently not available

Shop all Walker Z-Series Radiators

Product Summary

1932 Chevy Confederate, 1932 Chevy Confederate BB

    Key Specs

    MFG. Part #Z-512-1
    Radiator StyleSingle Pass
    Radiator Flow DirectionDownflow
    Material TypeCopper/Brass
    FinishPainted

    Need To Know

    This Product Will Ship Free

    Need help? Call 800.979.0122

    Quick and Easy Returns

    Details

    Walker Z-Series radiators feature a 4-row, high-flow copper core which is ideal for use with Big Blocks, blowers, and high compression engines. Built for a direct fit with heavy gauge steel side brackets and mounting holes pre-stamped. Includes a built-in oil cooler for automatic transmissions.

    • Works with original, reproduction, steel or fiberglass grille shells
    • 4-row copper core w/ brass tanks
    • Vertical tubes every 1/4" and 12 fins per inch of height
    • 12 Ga. steel side brackets w/ pre-drilled holes
    • Use a 15-18 lb. radiator cap
    • Brass drain cock

    Chevy Chassis w/ Chevy Engine Application Chart (GIF)

    Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

    Specs


    Warranties

    This item is in closeout status and as such, no manufacturer warranty is applicable or extended with its purchase.

    Specifications

    KEY SPECS
    MFG. Part #Z-512-1
    BrandWalker Radiator Works
    Radiator StyleSingle Pass
    Radiator Flow DirectionDownflow
    Material TypeCopper/Brass
    FinishPainted
    GENERAL
    Inlet LocationUpper driver side
    Outlet LocationLower passenger side
    Row Quantity4
    Overall Width Range17.00" to 17.99"
    Overall Width17.13"
    Overall Height Range27.00" to 27.99"
    Overall Height27.25"
    Overall Thickness4.16"
    Core Width Range16.00" to 16.99"
    Core Width16.875"
    Core Height Range22.00" to 22.99"
    Core Height22.75"
    Core Thickness2.75"
    Cooling FanNot Included
    Transmission CoolerYes
    Shroud IncludedNo
    Filler Neck Height2.38"
    Inlet Size1.50
    ColorBlack
    Fan IncludedNo
    Notes1/8" NPT fittings for transmission cooler. 1/4" NPT fitting for drain.
    Sold in QuantityEach
