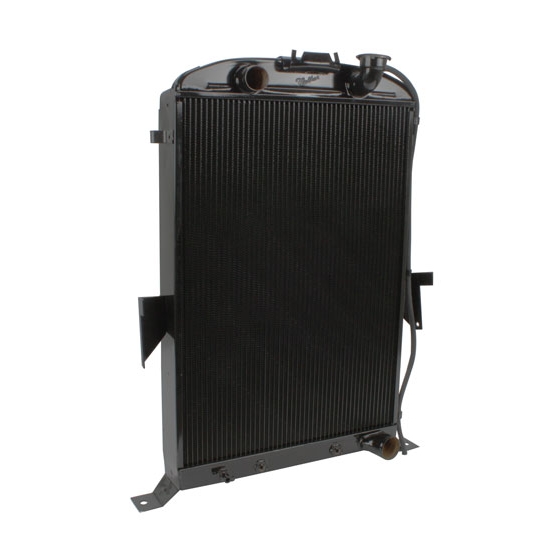

Walker Z-488-1 Z-Series 1935 Ford Radiator for Chevy Engine
Walker Z-488-1 Z-Series 1935 Ford Radiator for Chevy Engine

Walker Z-488-1 Z-Series 1935 Ford Radiator for Chevy Engine

3 Reviews | 1 Answered Question
Discontinued
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Walker Z-488-1 Z-Series 1935 Ford Radiator for Chevy Engine
Walker Z-488-1 Z-Series 1935 Ford Radiator for Chevy Engine
Walker Z-488-1 Z-Series 1935 Ford Radiator for Chevy Engine
Walker Z-488-1 Z-Series 1935 Ford Radiator for Chevy Engine
Walker Z-488-1 Z-Series 1935 Ford Radiator for Chevy Engine
Walker Z-488-1 Z-Series 1935 Ford Radiator for Chevy Engine
X
Walker Z-488-1 Z-Series 1935 Ford Radiator for Chevy Engine
Walker Z-488-1 Z-Series 1935 Ford Radiator for Chevy Engine
Walker Z-488-1 Z-Series 1935 Ford Radiator for Chevy Engine
Walker Z-488-1 Z-Series 1935 Ford Radiator for Chevy Engine
Zoomed In Image
Part # 820Z4881
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Radiator Style:
Single Pass
Radiator Flow Direction:
Downflow
Material Type:
Copper/Brass
Inlet Location:
Center
Outlet Location:
Lower passenger side
Row Quantity:
4
Overall Width Range:
17.00" to 17.99"
Overall Width:
17.25"
Overall Height Range:
27.00" to 27.99"
Overall Height:
27.13"
Overall Thickness:
3.375"
Core Width Range:
17.00" to 17.99"
Core Width:
17.00"
Core Height Range:
22.00" to 22.99"
Core Height:
22.88"
Core Thickness:
2.75"
Finish:
Painted
Cooling Fan:
Not Included
Transmission Cooler:
Yes
Shroud Included:
No
Filler Neck Height:
2.38"
Inlet Size:
1.50
Color:
Black
Fan Included:
No
MFG. Part #:
Z-488-1
Sold in Quantity:
Each

Info

Walker Z-Series radiators feature a 4-row, high-flow copper core which is ideal for use with Big Blocks, blowers, and high compression engines. Built for a direct fit with heavy gauge steel side brackets and mounting holes pre-stamped. Includes a built-in oil cooler for automatic transmissions.

  • Works with original, reproduction, steel or fiberglass grille shells
  • Copper core w/ 1-piece brass tanks
  • Vertical tubes every 1/4" and 12 fins per inch of height
  • Heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
  • Use a 15-18 lb. radiator cap
  • Brass drain cock
  • Simple bolt-in install
  • Use Walker Fan Shroud Style B

Ford Chassis W/ Chevy Engine Application Chart (GIF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Warranties

This item is in closeout status and as such, no manufacturer warranty is applicable or extended with its purchase.

Notes

1/8" NPT fittings for transmission cooler. 1/4" NPT fitting for drain. 2.68" wide mounting feet on both sides.

Important Messages

  • This product is discontinued.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
