Part # 820C5201

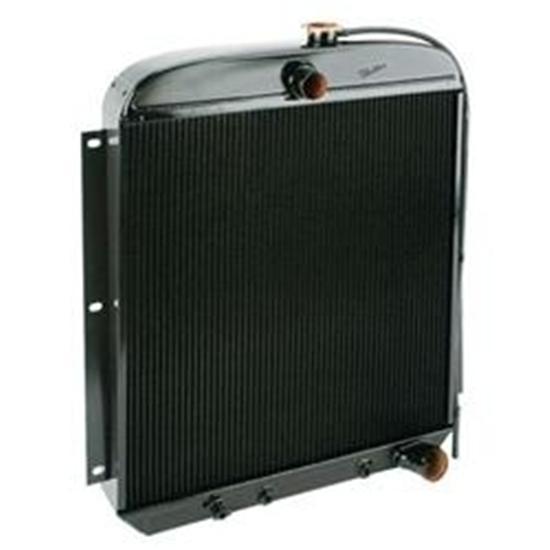

Walker C-520-1 Cobra 1947-1953 Chevy Pickup Radiator
by
Walker Radiator Works
$774.99
each
Discontinued
This item is currently not available
Shop all Walker Cobra Radiators
Product Summary
47-53 Chevy Truck, Single Pass Radiator Style, Copper
See more details
Key Specs
| MFG. Part # | C-520-1 |
| Radiator Style | Single Pass |
| Radiator Flow Direction | Downflow |
| Material Type | Copper/Brass |
| Finish | Painted |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
Walker Cobra Series radiators boast a relatively thin, but efficient, high-flow copper core which is ideal for use with mild Small Block engines with stock or low compression ratios. Each radiator is built for a direct fit with heavy gauge steel side brackets and standard mounting holes pre-stamped. Plus, all radiators feature a built-in oil cooler for use with automatic transmissions.
- Copper core w/ 1-piece brass tanks
- Vertical tubes every 1/4" and 17 fins per inch of height
- Heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
- Use a 15-18 lb. radiator cap
- Brass drain cock
- Simple bolt-in install
Chevy Chassis W/ Chevy Engine Application Chart (GIF)
Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.
Item Details
Condenser Fittings: #6 and #8 O-ring designCondenser Refrigerant: R-12 or R-134a
Specs
Warranties
This item is in closeout status and as such, no manufacturer warranty is applicable or extended with its purchase.
Guides & Documents
Specifications
Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | C-520-1 |
| Brand | Walker Radiator Works |
| Radiator Style | Single Pass |
| Radiator Flow Direction | Downflow |
| Material Type | Copper/Brass |
| Finish | Painted |
| GENERAL | |
| Inlet Location | Center |
| Outlet Location | Lower passenger side |
| Row Quantity | 3 |
| Overall Width Range | 20.00" to 20.99" |
| Overall Width | 20.25" |
| Overall Height Range | 24.00" to 24.99" |
| Overall Height | 24.38" |
| Overall Thickness | 3.25" |
| Core Width Range | 20.00" to 20.99" |
| Core Width | 20.00" |
| Core Height Range | 19.00" to 19.99" |
| Core Height | 19.75" |
| Core Thickness | 2.00" |
| Cooling Fan | Not Included |
| Transmission Cooler | Yes |
| Shroud Included | No |
| Filler Neck Height | .88" |
| Inlet Size | 1.50 |
| Color | Black |
| Fan Included | No |
| Notes | 1/8" NPT fittings for transmission cooler. 1/4" NPT fitting for drain. 1.25" wide mounting feet on both sides. |
| Sold in Quantity | Each |
