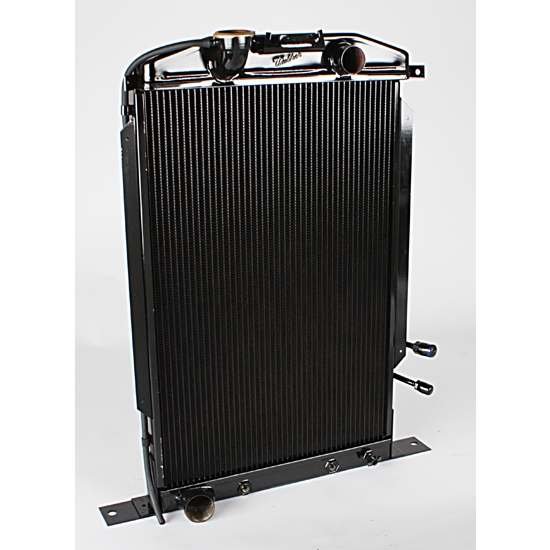

Walker B-Z-Ac495-1 Z-Series 37-39 Ford Radiator, Condenser-Ford Engine

Name: Walker B-Z-Ac495-1 Z-Series 37-39 Ford Radiator, Condenser-Ford Engine
Brand: Walker Radiator Works
SKU: 820BZAC4951
Price: 1199.99 USD
Availability: Discontinued
Rating: 5 (2 reviews)

Walker Radiator Works

2 Reviews

Ask a Question

Has a dummy filler neck in OEM location and accepts stock type caps & accessories
Made with a copper core and 1-piece brass tanks
There are vertical tubes every 1/4" and 12 fins per inch of height

$1,199.99

each

Discontinued

This item is currently not available

Shop all Walker Z-Series Radiators with A/C Condenser

Product Summary

37-39 Ford, Single Pass Radiator Style, Copper, Painted

Has a dummy filler neck in OEM location and accepts stock type caps & accessories
Made with a copper core and 1-piece brass tanks
There are vertical tubes every 1/4" and 12 fins per inch of height
Includes heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
Features a simple bolt-in install with no modifications to grille or grille shell

See more details

Key Specs

Radiator Style	Single Pass
Radiator Flow Direction	Downflow
Material Type	Copper/Brass
Inlet Location	Upper passenger side
Outlet Location	Lower driver side

See more specs

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Walker Radiator Works B-Z-AC495-1 Details

Walker Z-Series radiators feature a 4-row, high-flow copper core which is ideal for use with Big Blocks, blowers, and high compression engines. Built for a direct fit with heavy gauge steel side brackets and mounting holes pre-stamped. Includes a built-in oil cooler for automatic transmissions.

Copper core w/ 1-piece brass tanks
Vertical tubes every 1/4" and 12 fins per inch of height
Heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
Use a 15-18 lb. radiator cap
Brass drain cock
Simple bolt-in install w/ no modifications to grille or grille shell
Use Walker Fan Shroud Style E

Small Block Ford engines can take advantage of the less expensive and more readily available "Chevy" radiators by using a passenger side inlet water pump (such as our 910-15544) and get additional steering box/fuel pump clearance to boot!

Ford Chassis W/ Ford Engine Application Chart (GIF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.

Item Details

With A/C Condenser
Condenser Fittings: #6 and #8 O-ring design
Condenser Refrigerant: R-12 or R-134a

Specs

Warranties

This item is in closeout status and as such, no manufacturer warranty is applicable or extended with its purchase.

Guides & Documents

Single Pass, Double Pass, Triple Pass Radiators; What’s The Difference?

How To Choose A Radiator For Your Car

CA Prop 65

Walker Radiator Works B-Z-AC495-1 Specifications

KEY SPECS
MFG. Part #	B-Z-AC495-1
Brand	Walker Radiator Works
Radiator Style	Single Pass
Radiator Flow Direction	Downflow
Material Type	Copper/Brass
Inlet Location	Upper passenger side
Outlet Location	Lower driver side
Row Quantity	4
Overall Width Range	15.00" to 15.99"
Overall Width	15.88"
Overall Height Range	27.00" to 27.99"
Overall Height	27.5"
Overall Thickness	6.00"
Core Width Range	15.00" to 15.99"
Core Width	15.75"
Core Height Range	23.00" to 23.99"
Core Height	23.25"
Core Thickness	2.75"
Finish	Painted
Cooling Fan	Not Included
Transmission Cooler	Yes
Shroud Included	No

GENERAL
Filler Neck Height	2.38"
Inlet Size	1.50
Color	Black
Fan Included	No
Notes	1/8" NPT fittings for transmission cooler. 1/4" NPT fitting for drain. 3.25" wide mounting feet on both sides. 5/8"-18 and 3/4"-16 inverted flare fittings for A/C.
Sold in Quantity	Each
