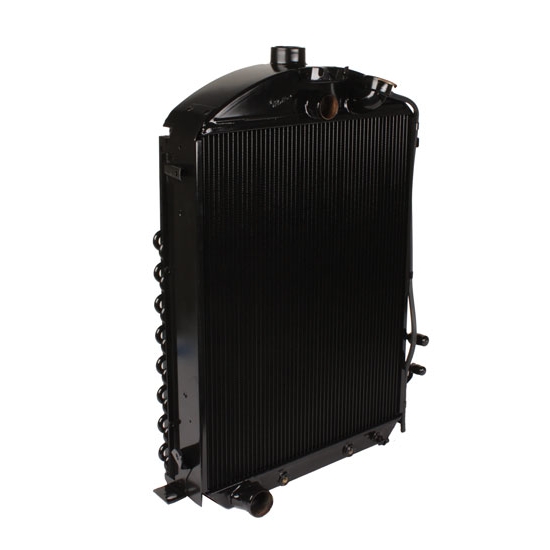

30-31 Ford Model A, Single Pass Radiator Style, Painted

  • Radiators feature a 4-row, high-flow copper core
  • Uses a 15-18 lb. radiator cap and has a brass drain cock
  • Has vertical tubes every 1/4" and 12 fins per inch of height
  • Will work with original, reproduction steel, or fiberglass grille shells
  • There is a dummy filler neck in OEM location that accepts stock type caps & accessories

Key Specs

MFG. Part #B-Z-AC487-2
Radiator StyleSingle Pass
Radiator Flow DirectionDownflow
Material TypeCopper/Brass
FinishPainted

Need To Know

This Product Will Ship Free

Quick and Easy Returns

Details

Walker Z-Series radiators feature a 4-row, high-flow copper core which is ideal for use with Big Blocks, blowers, and high compression engines. Built for a direct fit with heavy gauge steel side brackets and mounting holes pre-stamped. Includes a built-in oil cooler for automatic transmissions.

  • Dummy filler neck in OEM location - accepts stock type caps & accessories
  • Works with original, reproduction steel, or fiberglass grille shells
  • Copper core w/ 1-piece brass tanks
  • Vertical tubes every 1/4" and 12 fins per inch of height
  • Heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
  • Use a 15-18 lb. radiator cap
  • Brass drain cock
  • Use Walker Fan Shroud Style D

Small Block Ford engines can take advantage of the less expensive and more readily available "Chevy" radiators by using a passenger side inlet water pump (such as our 910-15544) and get additional steering box/fuel pump clearance to boot!

Ford Chassis W/ Ford Engine Application Chart (GIF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.


Item Details

With A/C Condenser
Condenser Fittings: #6 and #8 O-ring design
Condenser Refrigerant: R-12 or R-134a

Specs


Warranties

This item is in closeout status and as such, no manufacturer warranty is applicable or extended with its purchase.

Specifications

KEY SPECS
MFG. Part #B-Z-AC487-2
BrandWalker Radiator Works
Radiator StyleSingle Pass
Radiator Flow DirectionDownflow
Material TypeCopper/Brass
FinishPainted
GENERAL
Inlet LocationCenter
Outlet LocationLower driver side
Row Quantity4
Overall Width Range19.00" to 19.99"
Overall Width19.25"
Overall Height Range27.00" to 27.99"
Overall Height27.00"
Overall Thickness4.50"
Core Width Range18.00" to 18.99"
Core Width18.00"
Core Height Range22.00" to 22.99"
Core Height22.00"
Core Thickness2.75"
Cooling FanNot Included
Transmission CoolerYes
Shroud IncludedNo
Filler Neck Height2.38"
Inlet Size1.50
ColorBlack
Fan IncludedNo
Notes1/8" NPT fittings for transmission cooler. 1/4" NPT fitting for drain. 1.25" wide mounting feet on both sides. 5/8"-18 and 3/4"-16 inverted flare fittings for A/C.
Sold in QuantityEach
