Part # 820BZ4941

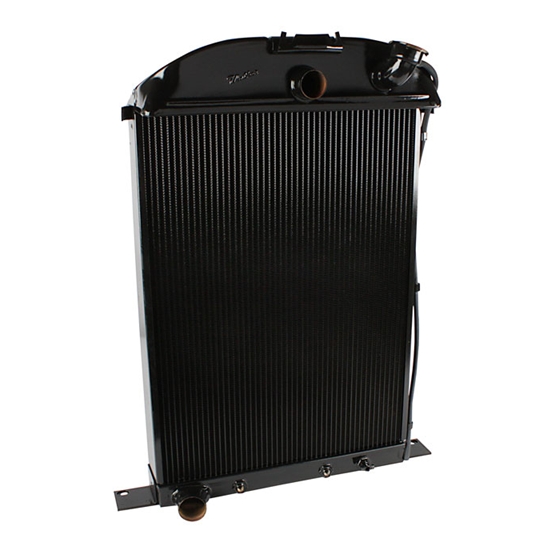

Walker B-Z-494-1 Z-Series 1936 Ford Radiator for Ford Engine
by
Walker Radiator Works1 Review
|
1 Question
- Features a copper core w/ 1-piece brass tanks
- This radiator is specially designed for the 1936 Ford
- Has heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
See More
$969.99
each
Discontinued
This item is currently not available
Shop all Walker Z-Series Radiators
Product Summary
1936 Ford, Single Pass Radiator Style, Copper/Brass
- Features a copper core w/ 1-piece brass tanks
- This radiator is specially designed for the 1936 Ford
- Has heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
- There are vertical tubes every 1/4" and 12 fins per inch of height
- Engineered to work with original, reproduction steel, or fiberglass grille shells
See more details
Key Specs
MFG. Part # | B-Z-494-1 |
Radiator Style | Single Pass |
Radiator Flow Direction | Downflow |
Material Type | Copper/Brass |
Finish | Painted |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
Walker Z-Series radiators feature a 4-row, high-flow copper core which is ideal for use with Big Blocks, blowers, and high compression engines. Built for a direct fit with heavy gauge steel side brackets and mounting holes pre-stamped. Includes a built-in oil cooler for automatic transmissions.
- Works with original, reproduction steel, or fiberglass grille shells
- Copper core w/ 1-piece brass tanks
- Vertical tubes every 1/4" and 12 fins per inch of height
- Heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
- Use a 15-18 lb. radiator cap
- Brass drain cock
- Simple bolt-in install
- Use Walker Fan Shroud Style B
Small Block Ford engines can take advantage of the less expensive and more readily available "Chevy" radiators by using a passenger side inlet water pump (such as our 910-15544) and get additional steering box/fuel pump clearance to boot!
Ford Chassis W/ Ford Engine Application Chart (GIF)
Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.
Warranties
This item is in closeout status and as such, no manufacturer warranty is applicable or extended with its purchase.
Guides & Documents
Specifications
Specifications
KEY SPECS | |
---|---|
MFG. Part # | B-Z-494-1 |
Brand | Walker Radiator Works |
Radiator Style | Single Pass |
Radiator Flow Direction | Downflow |
Material Type | Copper/Brass |
Finish | Painted |
GENERAL | |
Inlet Location | Center |
Outlet Location | Lower driver side |
Row Quantity | 4 |
Overall Width Range | 17.00" to 17.99" |
Overall Width | 17.38" |
Overall Height Range | 28.00" to 28.99" |
Overall Height | 28.50" |
Overall Thickness | 7.00" |
Core Width Range | 17.00" to 17.99" |
Core Width | 17.13" |
Core Height Range | 22.00" to 22.99" |
Core Height | 22.75" |
Core Thickness | 2.75" |
Cooling Fan | Not Included |
Transmission Cooler | Yes |
Shroud Included | No |
Filler Neck Height | 2.38" |
Inlet Size | 1.50 |
Color | Black |
Fan Included | No |
Notes | 1/8" NPT fittings for transmission cooler. 1/4" NPT fitting for drain. 2.38" wide mounting feet on both sides. |
Sold in Quantity | Each |
