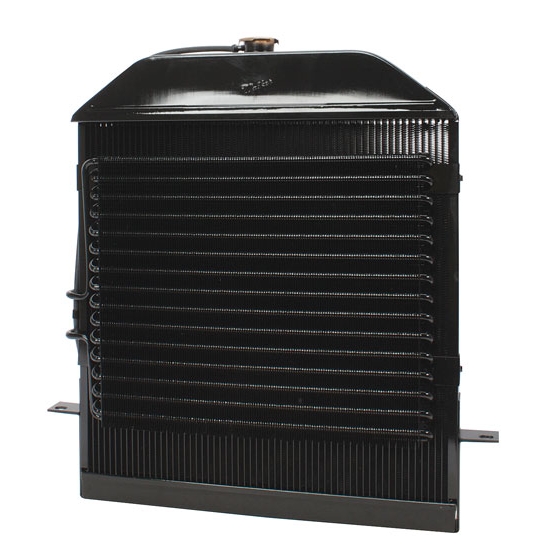

39-40 Ford Deluxe, 1940 Ford Sedan Delivery, Copper

    Key Specs

    MFG. Part #B-C-AC497-1
    Radiator StyleSingle Pass
    Radiator Flow DirectionDownflow
    Material TypeCopper/Brass
    FinishPainted

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

    Walker Cobra Series radiators boast a relatively thin, but efficient, high-flow copper core which is ideal for use with mild Small Block engines with stock or low compression ratios. Each radiator is built for a direct fit with heavy gauge steel side brackets and standard mounting holes pre-stamped. Plus, all radiators feature a built-in oil cooler for use with automatic transmissions. They work with original, reproduction, steel or fiberglass grille shells.

    • Copper core w/ 1-piece brass tanks
    • Vertical tubes every 1/4" and 17 fins per inch of height
    • Heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
    • Use a 15-18 lb. radiator cap
    • Brass drain cock
    • Simple bolt-in install w/ no modifications to grille or grille shell
    • Use Walker Fan Shroud Style A

    Small Block Ford engines can take advantage of the less expensive and more readily available "Chevy" radiators by using a passenger side inlet water pump (such as our 910-15544) and get additional steering box/fuel pump clearance to boot!

    Ford Chassis W/ Ford Engine Application Chart (GIF)

    Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.





    Item Details

    Ford Engine, With A/C Condenser
    Condenser Fittings: #6 and #8 O-ring design
    Condenser Refrigerant: R-12 or R-134a

    Specs


    Warranties

    This item is in closeout status and as such, no manufacturer warranty is applicable or extended with its purchase.

    Specifications

    KEY SPECS
    MFG. Part #B-C-AC497-1
    BrandWalker Radiator Works
    Radiator StyleSingle Pass
    Radiator Flow DirectionDownflow
    Material TypeCopper/Brass
    FinishPainted
    GENERAL
    Inlet LocationUpper passenger side
    Outlet LocationLower driver side
    Row Quantity2
    Overall Width Range21.00" to 21.99"
    Overall Width21.25"
    Overall Height Range25.00" to 25.99"
    Overall Height25.38"
    Overall Thickness3.75"
    Core Width Range21.00" to 21.99"
    Core Width21.00"
    Core Height Range20.00" to 20.99"
    Core Height20.00"
    Core Thickness2.00"
    Cooling FanNot Included
    Transmission CoolerYes
    Shroud IncludedNo
    Filler Neck Height.88"
    Inlet Size1.50
    ColorBlack
    Fan IncludedNo
    Notes1/8" NPT fittings for transmission cooler. 1/4" NPT fitting for drain. 2.00" wide mounting feet on both sides. 5/8"-18 and 3/4"-16 inverted flare fittings for A/C.
    Sold in QuantityEach
