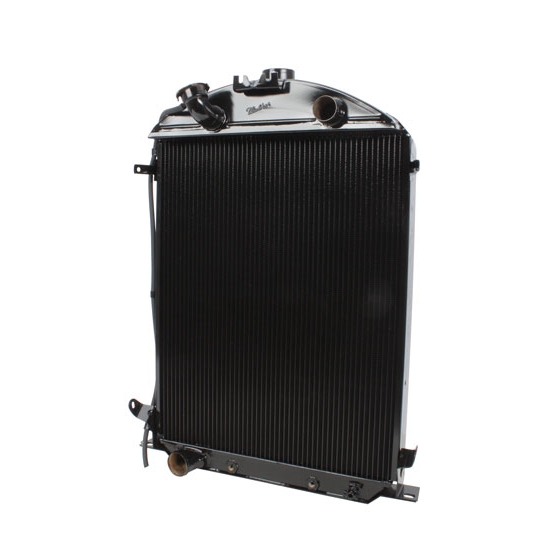

Walker B-C-487-2 Cobra 1930-1931 Ford Model A Radiator for Ford Engine
Walker B-C-487-2 Cobra 1930-1931 Ford Model A Radiator for Ford Engine

Walker B-C-487-2 Cobra 1930-1931 Ford Model A Radiator for Ford Engine

30-31 Ford Model A, Single Pass Radiator Style, Copper, Upper Right Inlet Location, Painted

1 Review | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Walker B-C-487-2 Cobra 1930-1931 Ford Model A Radiator for Ford Engine
Walker B-C-487-2 Cobra 1930-1931 Ford Model A Radiator for Ford Engine
Zoomed In Image
Part # 820B4872
Save $20
$679.99
$699.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Radiator Style:
Single Pass
Material Type:
Copper
Inlet Location:
Upper Right
Outlet Location:
Lower Left
Row Quantity:
2
Overall Width Range:
18.00" to 18.99"
Overall Width:
18.18"
Overall Height Range:
27.00" to 27.99"
Overall Height:
27.18"
Overall Thickness:
4.25"
Core Width Range:
18.00" to 18.99"
Core Width:
18"
Core Height Range:
22.00" to 22.99"
Core Height:
22"
Core Thickness:
2.00"
Finish:
Painted
Transmission Cooler:
Yes
Shroud Included:
No
MFG. Part #:
B-C-487-2
Filler Neck Height:
2.38"
Inlet Size:
1.50"
Tube Style:
Downflow
Color:
Black
Sold in Quantity:
Each

Info

Walker Cobra Series radiators boast a relatively thin, but efficient, high-flow copper core which is ideal for use with mild Small Block engines with stock or low compression ratios. Each radiator is built for a direct fit with heavy gauge steel side brackets and standard mounting holes pre-stamped. Plus, all radiators feature a built-in oil cooler for use with automatic transmissions. They work with original, reproduction, steel or fiberglass grille shells.

  • Dummy filler neck in OEM location - accepts stock type caps & accessories
  • Copper core w/ 1-piece brass tanks
  • Vertical tubes every 1/4" and 17 fins per inch of height
  • Heavy duty 12 Ga. steel side brackets w/ pre-drilled holes
  • Use a 15-18 lb. radiator cap
  • Brass drain cock
  • Simple bolt-in install w/ no modifications to grille or grille shell

Small Block Ford engines can take advantage of the less expensive and more readily available "Chevy" radiators by using a passenger side inlet water pump (such as our 910-15544) and get additional steering box/fuel pump clearance to boot!

Ford Chassis W/ Ford Engine Application Chart (GIF)

Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance

Item Details

Condenser Fittings: #6 and #8 O-ring design
Condenser Refrigerant: R-12 or R-134a

Specs

Ford Engine
  • Top Inlet without A/C Condenser:  Right
  • Bottom Outlet: Left
  • Oil Cooler Fittings:  1/8" pipe thread
  • Condenser Fittings:  #6 and #8 O-ring design
  • Condenser Refrigerant:  R-12 or R-134a

Warranties

Walker is now extending their warranty on all Cobra Series radiators to a full ten years, affecting all Cobra Series units manufactured after January 1, 2007.

Notes

1/8" NPT fittings for transmission cooler. 1/4" NPT fitting for drain. 1.25" wide mounting feet on both sides.
