Add to Cart
$274.21
$191.99
Viair 38033 Single Air Suspension Compressor Kit, 380C, Chrome
Viair 38033 Single Air Suspension Compressor Kit, 380C, Chrome

Viair 38033 Single Air Suspension Compressor Kit, 380C, Chrome

Universal Fit, 9.00" Length, 4.00" Width, 200 Pressure Range (psi), 6.75" Overall Height

1 Review | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Viair 38033 Single Air Suspension Compressor Kit, 380C, Chrome
Viair 38033 Single Air Suspension Compressor Kit, 380C, Chrome
Zoomed In Image
Part # 91038033
Save 29%
$191.99
$274.21
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Length:
9.00"
Width:
4.00"
GTIN Code:
818114003806
MFG. Part #:
38033
Sold in Quantity:
Each
Pressure Range (psi):
200
Overall Height:
6.75"
Amperage:
23 amps

Info

The Viair 380C is a truly-rated continuous duty, 12-volt, 200 PSI compressor. These air suspension compressors fill a 5.0-gallon tank from 165 PSI to 200 PSI in only 3-1/2 minutes consistently, while never pulling more than 23 amps of power (@ 13.8 volts). Features include a standard 1/4” stainless steel braided leader hose with 1/4” NPT inline check valve and insulated wiring.

  • 12 Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
  • 200 PSI max working pressure
  • 5.0 gallon capacity
  • 23 amp max draw
  • Ingress Protection Rating: IP67
  • 9.00" length
  • 4.00" width
  • 6.75" height
  • 8.75 pounds

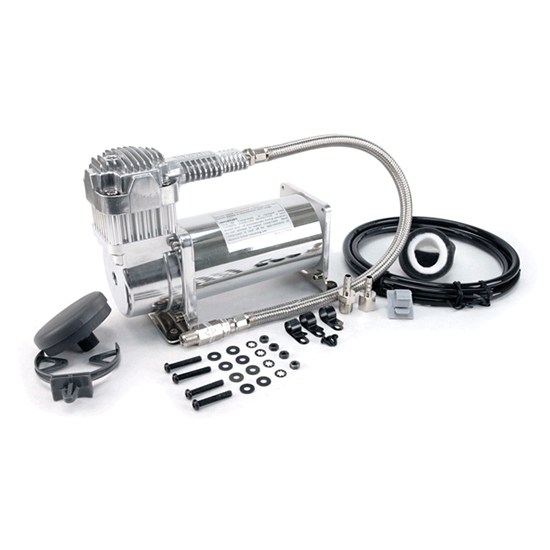

Kit includes:

  • (1) 380C Chrome Compressor
  • Intercooler Head
  • (2) Air Filter Assemblies
  • (1) Remote Mount Brackets
  • (1) Sets of Remote Mount Fittings
  • (1) Sets of Spare Air Filter Elements
  • (4) Sets of Nuts, Bolts, Washers and Lock Washers
  • (1) Stainless Steel Braided Leader Hoses with Inline Check Valve
  • (3) Airline Clips with Included Hardware
  • Installation instructions

Recommended Components:

  • 12V relay # 910-64044
  • Pressure switch 200 psi # 910-901031
  • 3 Gallon tank # 910-9913
  • 5 Gallon tank # 910-9914

 Fill Rates:

  • 2.5 Gallon Air Tank:
    • 0 to 145 PSI - 3 min. 30 sec.
    • 110 to 145 PSI - 1 min. 10 sec.
    • 0 to 200 PS - 6 min. 05 sec.
    • 165 to 200 - 1 min. 45 sec.
  • 5 Gallon Air Tank:
    • 0 to 145 PSI - 7 min. 20 sec.
    • 110 to 145 PSI - 2 min. 25 sec.
    • 0 to 200 PSI - 13 min. 25 sec.
    • 165 to 200 PSI - 3 min. 39 sec.

38033 Installation Manual (PDF)

38033 Dimensions (PDF)

38033 Wiring Diagram (PDF)
