Universal Triangulated 4-Bar Rear Suspension Fabricator Kit

Build and fabricate your own custom length triangulated 4-bar rear suspension with this convenient mounting/hardware kit.  Simply choose the rods/bars to meet your custom length needs.

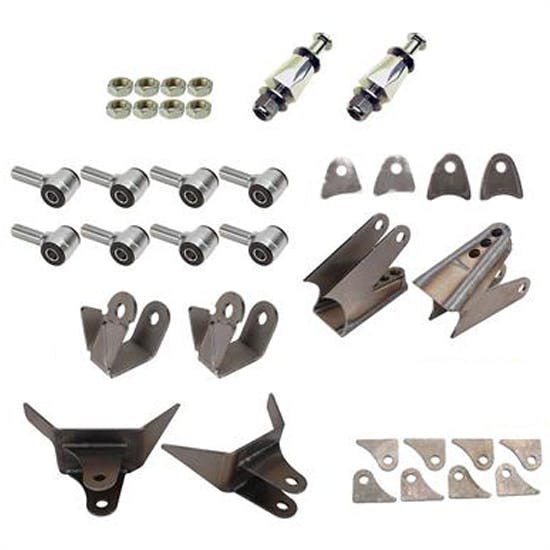

Kit Includes:

• (2) Folded Tri-Bar Upper Brackets
• (1) Pair of Triangulated Rear Four-Bar Lower Frame Brackets
• (1) Pair of Triangulated Rear Four-Bar Weld-on Lower Tab And Coilover Mounts
• (2) Coilover Shock Mount Bolts w/Plain Support Collar, 4-1/2 Inch
• (4) Speedway Forged 4-Bar Rod Ends, 3/4-16 RH Thread, Zinc Plated
• (4) Speedway Forged 4-Bar Rod Ends, 3/4-16 LH Thread, Zinc Plated
• (1) Set of 4 Triangulated Rear Four-Bar Weld On Upper Tabs
• (1) Set of 8 Chassis Weld Tabs for Suspension Install, 1/2 Inch Hole
• (4) Thin Steel Jam Nuts, 3/4-16 LH
• (4) Thin Steel Jam Nuts, 3/4-16 RH



Folded Tri-Bar Upper Brackets

• Upper Triangulated four bar mount
• For 3/4" Four Bar Rod Ends
• 7 gauge steel



Triangulated Rear Four-Bar Lower Frame Brackets

• Locates lower links on frame
• Weld on brackets



Triangulated Rear Four-Bar Weld-on Lower Tab And Coilover Mounts

• For triangulated rear four-bar
• Weld on
• Combo lower four bar & coilover mounts
• For 3" axle tubes



Coilover Shock Mount Bolts w/Plain Support Collar, 4-1/2 Inch

• Fully engineered shock mount
• 5/8" forged button head bolt looks good while offering maximum support
• 1-3/4" x 1-3/4" support spacer has internal threads
• Allows you to properly support this shock without crushing the bushing like others do, which leads to shock failures
• Billet aluminum
• 4-1/2" from base of head to end of threads
• 1-1/4" shock mount base
• Safely mounts to brackets 1/2" thick
• Includes required washers and nylon lock nut
• Uses a 1/2" Allen head wrench for holding it while tightening



Set of 4 Triangulated Rear Four-Bar Weld On Upper Tabs

• For triangulated rear four bar
• Upper four bar mount tab for rear end housing
• For 3" axle tube



Set of 8 Chassis Weld Tabs for Suspension Install, 1/2 Inch Hole

• Great for installing radius rods and ladder bar suspension components
• 1/4" thick with a 1/2" mounting hole diameter
• Weld-on chassis tabs
• Set of 8



Speedway Forged 4-Bar Rod Ends, 3/4-16 LH/RH Thread, Zinc Plated

• LH/RH Male threads
• 3/4"-16 thread pitch
• Polyurethane bushing
• Steel construction
• Zinc finish

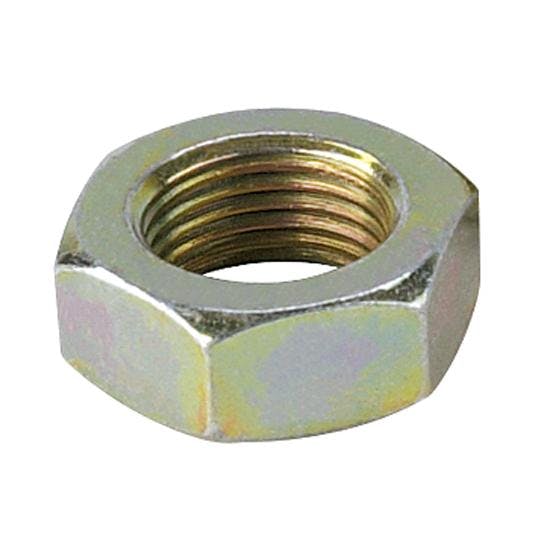

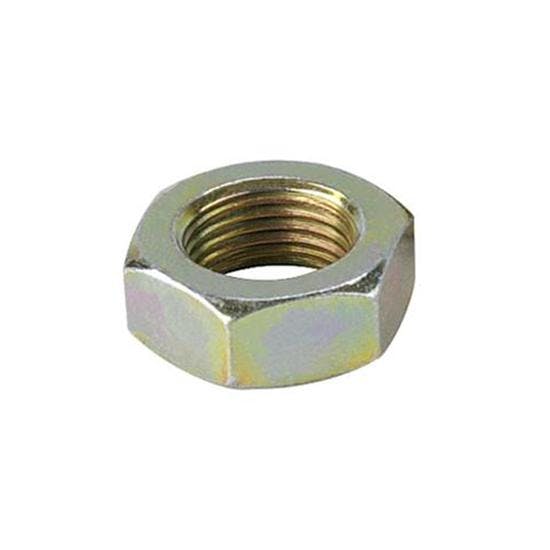

Thin Steel Jam Nuts, 3/4-16 LH/RH

• Plain steel fine thread jam nut
• Special half thickness nuts for securing steering heims
