Universal Ladder Bar Rear Suspension Bracket Fabricator Kit

Build and fabricate your own custom length ladder bar rear suspension with this convenient mounting/hardware kit.  Simply choose the rods/bars to meet your custom length needs.

Kit Includes:

• (1) Pair of Speedway Four-Bar Rear Axle Brackets
• (2) Four Hole Mounting Brackets - 3/4 Hole Size
• (1) Panhard-Behind Rear End Bracket - Weld On
• (2) Coilover Shock Mount Bolts w/Plain Support Collar, 4-1/2 Inch
• (16) High Misalignment Spacers, 3/4 Inch OD, 1/4 In Width
• (1) Set of 8 Chassis Weld Tabs for Suspension Install, 1/2 Inch Hole
• (9) Precision Carbon Steel LH Male Heim Joint Rod Ends, 3/4 Inch
• (9) Precision Carbon Steel RH Male Heim Joint Rod Ends, 3/4 Inch
• (9) Thin Steel Jam Nuts, 3/4-16 LH
• (9) Thin Steel Jam Nuts, 3/4-16 RH



Pair of Speedway Four-Bar Rear Axle Brackets

• Exclusive sandwich-style brackets give greater bar support and incorporate a multi-position lower coil-over mount
• Weld to 3" O.D. axle tubes only
• Has three 1/2" holes for shocks
• Simply drill hole size to 5/8" when using 5/8" coil-over mounting hardware



Four Hole Mounting Brackets - 3/4 Hole Size

• Mount radius rods, brake rods, third links, panhard bars, etc.
• 1/8" steel plate, 6-1/4" tall



Panhard-Behind Rear End Bracket - Weld On

• Behind rear end panhard bar brackets have four 3/4" holes for changing roll center and panhard bar angle
• Fits 3" axle tube
• Weld-on



Coilover Shock Mount Bolts w/Plain Support Collar, 4-1/2 Inch

• Fully engineered shock mount
• 5/8" forged button head bolt looks good while offering maximum support
• 1-3/4" x 1-3/4" support spacer has internal threads
• Allows you to properly support this shock without crushing the bushing like others do, which leads to shock failures
• Billet aluminum
• 4-1/2" from base of head to end of threads
• 1-1/4" shock mount base
• Safely mounts to brackets 1/2" thick
• Includes required washers and nylon lock nut
• Uses a 1/2" Allen head wrench for holding it while tightening



High Misalignment Spacers, 3/4 Inch OD, 1/4 In Width

• High misalignment spacer is designed for suspension joints, steering ends, and anything else that use the pivot of a spherical bearing such as heims
• Function to reduce the hole size to accommodate a smaller bolt, and to increase the angle of a spherical bearing
• 3/4 Inch rod end (D) to 1/2 Inch bolt hole (B)
• 1/4 Inch width (W)
• Carbon Steel



Set of 8 Chassis Weld Tabs for Suspension Install, 1/2 Inch Hole

• Great for installing radius rods and ladder bar suspension components
• 1/4" thick with a 1/2" mounting hole diameter
• Weld-on chassis tabs
• Set of 8



Precision Carbon Steel LH/RH Male Heim Joint Rod Ends, 3/4 Inch

• Precision steel rod ends provide greater strength than our "standard" rod ends
• Close tolerance and a 3 piece medium duty rod end
• Carbon steel body, 5210 precision ground ball and feature a Teflon Kevlar race
• Self lubrication teflon liner to seal out dirt and debris
• Shank and hole are the same size

Applications: Clutch, Brake, Steering & Suspension Components. Quieter, Smoother, & More Durable Than 2 Piece Rod Ends. Tight Tolerance of Kevlar Race Reduces "Slop" In Steering & Suspension.

ASSEMBLY TIP:
To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.



Thin Steel Jam Nuts, 3/4-16 LH/RH

• Plain steel fine thread jam nut
• Special half thickness nuts for securing steering heims

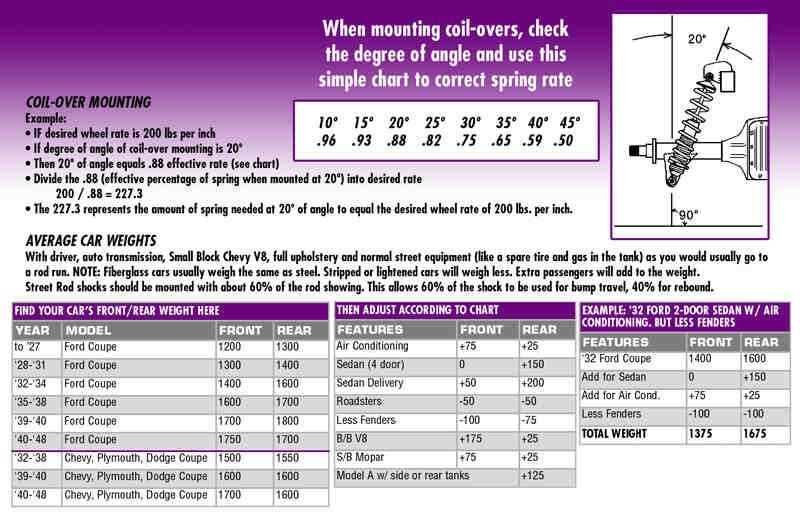

Coil-Over Mounting Guide (GIF)

916-36010 Instructions (PDF)

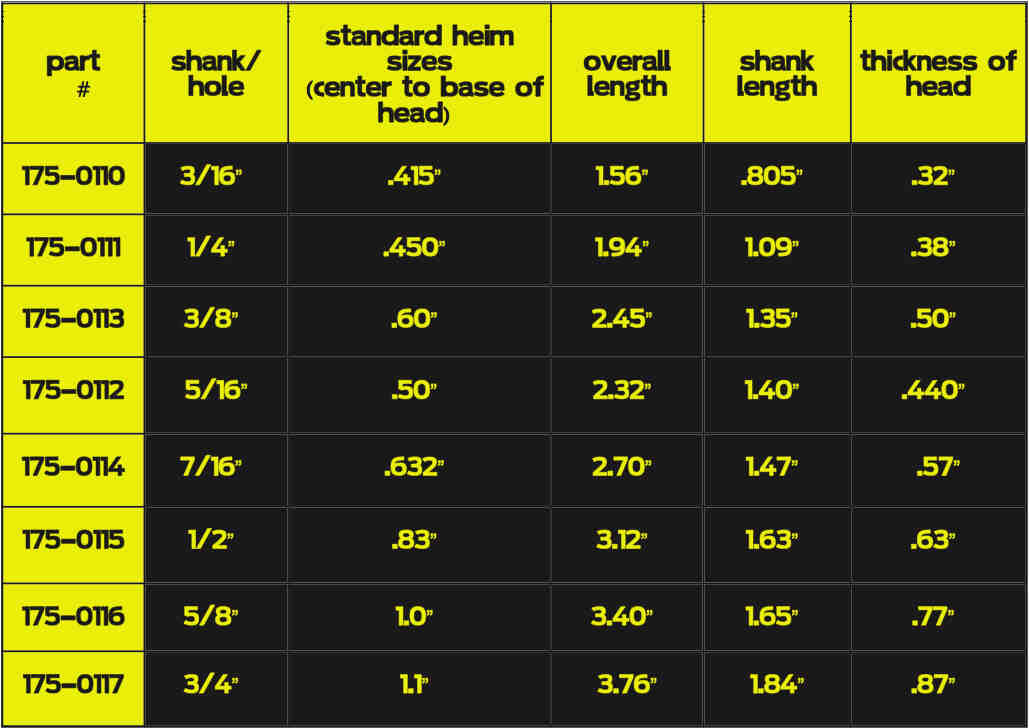

Standard Heim Sizes Chart (GIF)
