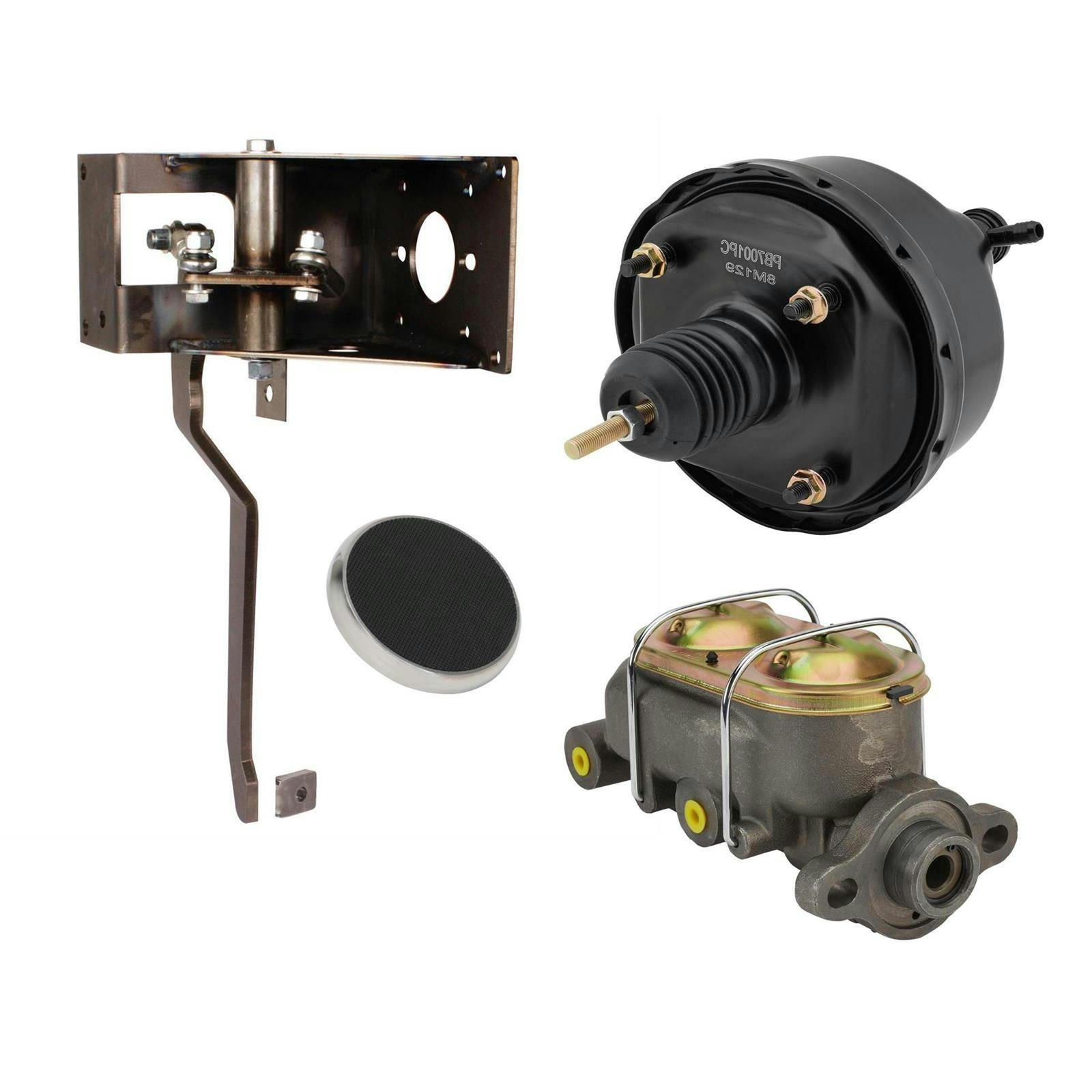

Underdash Mounted Pedal with Master Cylinder & 7" Booster Kit

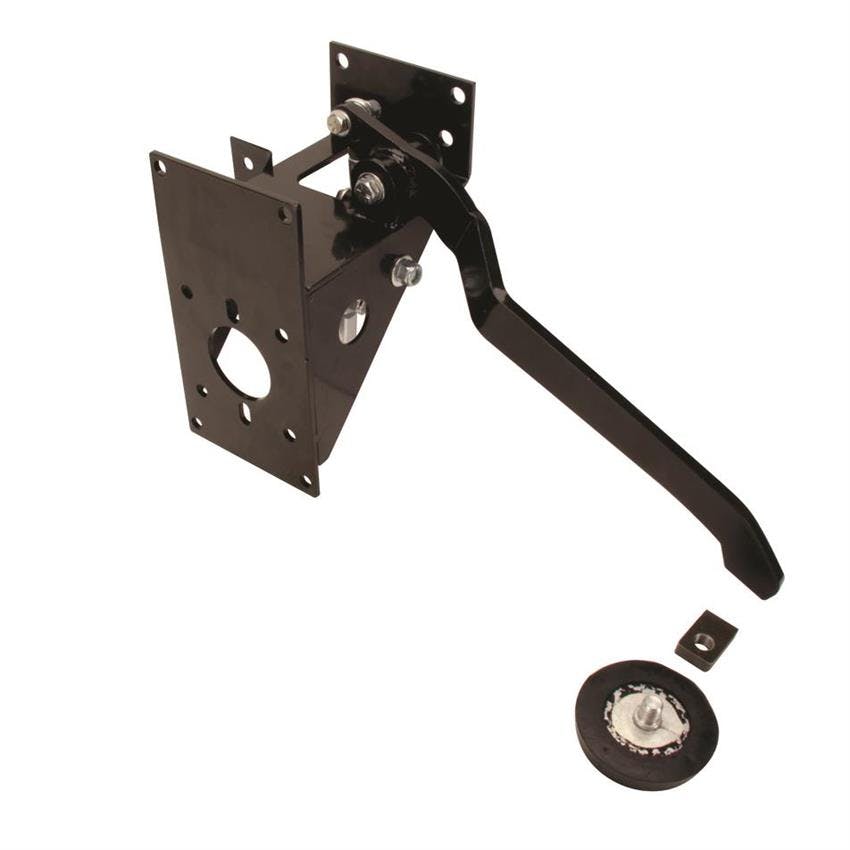

Pedal

• Universal right angle bracket
• Converts front to back pedal motion into left to right
• Accepts our 7" boosters



Master Cylinder

These high-tech Corvette-style master cylinders were designed using OE specifications and 100% tested.  They have a 1" bore and are suited for disc/drum combinations. Each master cylinder is ported on both the left and right sides, allowing for installation in many different applications. This exclusive design features a mating flange that works with applications requiring 3-1/8” through 3-3/8” bolt patterns.  These master cylinders will work with manual or power brake systems and can be quickly changed with the included adapter pin to plug the deep well.  The wide body and low profile gives this master cylinder the clearance you need when installing in tight areas and yet it maintains a large volume of fluid necessary for 2 and 4 wheel disc brake applications.

• 1" bore
• 3/8"-24 IFF outlet ports on both sides
• Plugs are included for the unused ports
• Mount spacing is 3-3/8", accomodates 3-1/8" applications
• Works with power or manual brake systems
• Compact, for installation under floor or on firewall
• Suited for either disc/disc or disc/drum combinations
• Stroke of this master cylinder is approximatlely 1-1/16"
• Has a piston adaptor that will allow for power or manual applications

Learn more about selecting the proper master cylinder for your vehicle by reading our tech article. Brake System Selection.



Brake Booster

• Single diaphragm power booster
• Fits in many tight under-floor installations
• Excellent for '35-'40 Ford
• Durable black powder coated finish



Pedal Pad

Stainless Steel Brake Pedal Cover with rubber insert. Universal. 1/2" fine thread for attaching stud on the back.

• 3-1/8" outside diameter
• Mount stud is 1/2"-20 by 3/4" long with a nut
