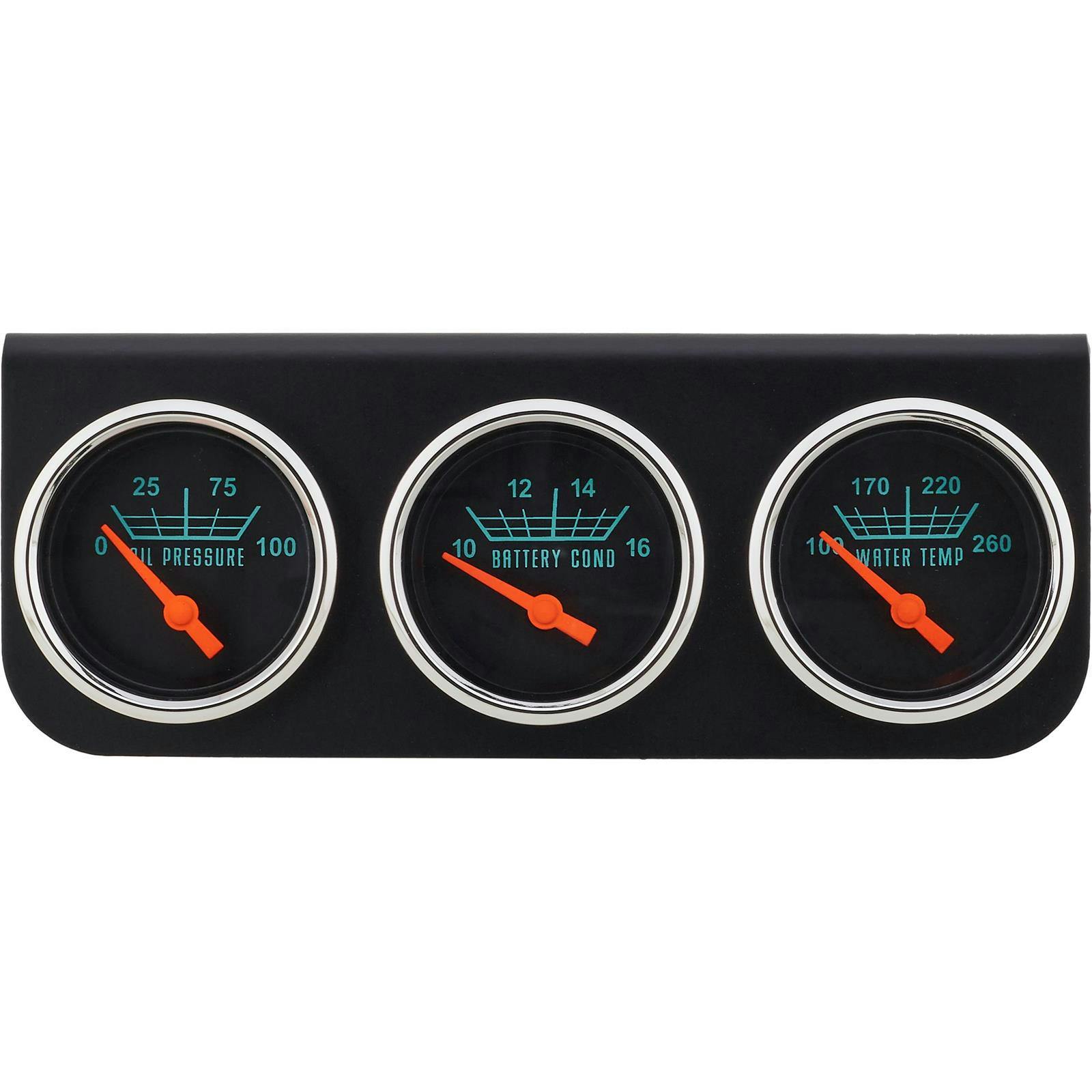

67-72 Chevy, 67-72 GMC, Analog Gauge Series, Black

  • A great addition for 1967-72 GM full-size trucks that allows for exact measurements of engine vitals to be monitored
  • Gauges match factory gauge face styling
  • Distinctive era-inspired graphics featuring mint green/black fonts, orange pointers, perimeter lighting, flat glass lenses, and stainless steel bezels
  • Included 3-hole gauge panel features all-aluminum construction, black anodized finish, and mounts easily under your dash
  • Includes water temperature and oil pressure senders

Key Specs

MFG. Part #91198213
BrandSpeedway Motors
Gauge SeriesAnalog
Gauge StyleElectric
Gauge Set DesignAccessory Console

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

  • All electric gauges for easy installation and no fluid lines running to your dash
  • Gauges feature LED perimeter lighting for easy viewing at night
  • Includes voltmeter, coolant temperature, and oil pressure gauges
  • Gauges feature half-sweep design with full numeric callouts
  • Needle design and color along with gauge face color and font mimic stock gauges
  • Kit includes mounting bracket, gauges, gauge mounting clamps, and sending units
  • Gauges use glass lenses and stainless-steel bezels for long lasting appearance
  • Compact 2-1/16 gauges take up little room while still being easy to read at a glance

Monitor Your C10’s Engine Vitals with Our Under Dash Gauge Panel

Factory instrumentation leaves a lot to be desired, even in today’s newer vehicles. However, it was a guess as to what was going on under your hood when you think about the factory gauges from the late 1960s and early 1970s. Most cars and trucks had basic “idiot lights” to warn you of low oil pressure, high coolant temperature, or a failing charging system. Once these lights came on it was often too little too late and the damage was already done to your engine. Having an actual gauge in your dash versus these lights is preferred, however after decades of use many of these factory gauges no longer work either. Whether you have warning lights or inoperative factory gauges, adding this C10 under dash gauge panel to your C10, Blazer, or Suburban is the perfect budget saving solution to ensuring you can faithfully monitor your engine’s critical fluids and charging system with ease without the expense of updating to in-dash C10 aftermarket gauges.

Solid Construction and Ease of Installation Makes Our Gauges a Winner

When we set out to build the typical three-gauge under dash panel we wanted it to be anything but typical. No plastic lens face or basic chrome dial here. Our gauges feature real glass lenses with stainless steel bezels for a long service life and great period looks under the dash of your 1967-1972 C10, Blazer, or Suburban. The black face and mint green font with orange pointers match the original dash gauges for a perfect OEM-looking upgrade while the clean white LED perimeter lighting makes our gauge panel easy to read at night.

You don’t have to worry about coolant or oil lines running through your firewall to our gauges either. While many under dash panels use lower cost mechanical gauges ours are designed as an electric triple gauge set with easy to wire sending units which provide accurate measuring of your engine’s coolant temperature and oil pressure while also providing system voltage reading. Furthermore, these gauges provide a numeric range for immediate monitoring versus the factory gauge’s vague “low” and “high” callouts, and that’s if your C10, Blazer, or Suburban even had the optional gauge package. New temperature and pressure ranges are ideal for today's builds as well.

Lastly, if you do have the factory gauge package know that the oil pressure gauge is a mechanical unit as well with oil line passing through the firewall and the charging gauge is an ammeter, which are known fire hazards, especially with modern high amp alternators. So, even if your C10, Blazer, or Suburban has the factory gauges we highly recommend bypassing them for modern electric versions like our under-dash gauge panel which utilizes an electric coolant temperature gauge and oil pressure gauge along with a true modern voltmeter.

Our aluminum mounting panel is coated in a rich black anodized finish to blend with any interior and allows the three 2-1/16 gauges to be fitted easily using the included gauge clamps. Mounting hardware for the gauges and gauge panel are included, along with required sending units and electrical terminal for the water temperature sensor. All you must do is provide the tools for the installation and sufficient wire lengths and crimp terminals to connect the gauges to power, ground, and illumination circuits in your truck. No additional filters, adapters, or driver modules are required. These C10 aftermarket gauges run as-is right out of the box.

Kit includes:

  • 2-1/16-inch volt gauge (10-16 volts)
  • 2-1/16-inch oil pressure gauge (0-100 PSI)
  • 2-1/16-inch water temperature gauge (140-280 degrees Fahrenheit)
  • Gauge mounting clamps with mounting hardware
  • Water temperature sender (1/8-inch NPT thread)
  • Oil pressure sender (1/8-inch NPT thread)
  • Aluminum 3-hole under-dash gauge panel, anodized black
  • Gauge panel mounting hardware

Specifications

KEY SPECS
MFG. Part #91198213
BrandSpeedway Motors
Gauge SeriesAnalog
Gauge StyleElectric
Gauge Set DesignAccessory Console
GENERAL
Number of Gauge Housings1
Auxiliary Gauge Diameter2-1/16 Inch
Gauge Face ColorBlack
Bezel FinishStainless
Liquid FilledNo
LightedYes
Lighting TypeLED
Needle ColorOrange
Lettering ColorGreen
Speedometer IncludedNo
Tachometer IncludedNo
Oil Pressure Gauge IncludedYes
Oil Temperature Gauge IncludedNo
Water Pressure Gauge IncludedNo
Water Temperature Gauge IncludedYes
Fuel Pressure Gauge IncludedNo
Fuel Level Gauge IncludedNo
Vacuum Gauge IncludedNo
Volt Gauge IncludedYes
Ammeter Gauge IncludedNo
Boost/Pyrometer Gauge IncludedNo
Exhaust Pressure Gauge IncludedNo
Odometer Gauge IncludedNo
Overall Height3.00"
Body Diameter2.06"
Material Thickness.13"
FinishAnodized Black
Sending UnitOil Pressure and Water Temperature
Includes Mounting Bracket(s)Yes
Material TypeAluminum
Overall Width7.50"
Clock IncludedNo
Oil Pressure Sender IncludedYes
Bezel IncludedYes
Lens StyleFlat
Sending Unit IncludedYes
Sold in QuantitySet
