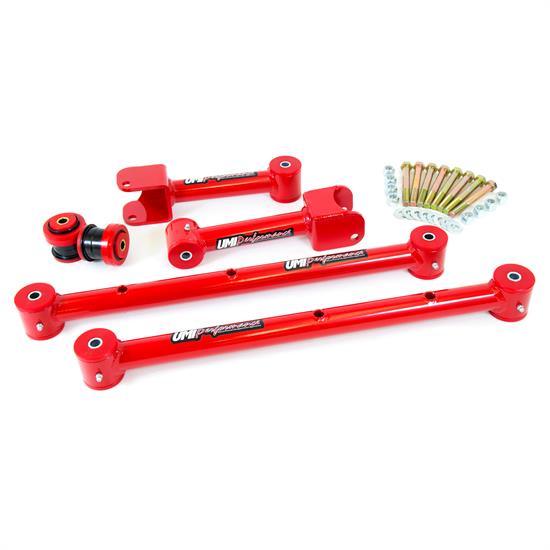

UMI ABR801-R 68-72 A-Body Upper & Lower Control Arm Kit, Red
Rear Upper and Lower Position, Tubular Control Arm Style, Steel
This kit manufactured by UMI Performance includes a set of tubular rear lower control arms, rear upper control arms, new rear end housing bushings and grade 8 mounting hardware. This control arm kit is a direct bolt-on replacement designed to minimize wheel hop, improve cornering and help track consistency on you're A-Body vehicle. Stock control arms are on the borderline of junk, bushing deflection and rusting weak stamped material add for traction loss and poor handling ability. Whether your car is a weekend cruiser or weekend track addict this kit works on all applications. Lower control arms feature grease-able Energy Suspension bushings, TIG welded construction for the utmost in strength and correct provisions for adding a stock or aftermarket sway bar. Sway bar holes are reinforced with a 0.120" wall thickness steel sleeve TIG welded and sanded into place to prevent the control arm from crushing. Non-adjustable upper control arms are constructed of CNC machined 0.250" steel mounting plates. These control arms also feature grease-able Energy Suspension fluted polyurethane bushings and durable gloss powder coat.
Kit Includes: Tubular upper and lower controls, new Energy Suspension rear end housing bushings and Grade 8 hardware with nylon lock nuts.
- Built using 1.500" x 0.120" DOM tubing
- CNC machined for precision tolerances and accuracy
- MIG and TIG weld construction for superior strength
- Energy Suspension polyurethane bushings
- Grade 8 hardware with nylon lock nuts
- Direct bolt-in kit, replaces factory items
- Durable long lasting powder coat
- Designed and manufactured in Pennsylvania, USA
- This item ships directly from the manufacturer. It may take an additional 10 business days for UMI Performance to ship this item.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
