Add to Cart
$1,229.99
UMI ABF401-67-1-R 67 A-Body Kit, 1 Inch Lowering Stage 1, Red
UMI ABF401-67-1-R 67 A-Body Kit, 1 Inch Lowering Stage 1, Red

UMI ABF401-67-1-R 67 A-Body Kit, 1 Inch Lowering Stage 1, Red

Powder Coated, Polyurethane Bushing Material, 530 lbs. Spring Rate, Front Coil Springs Included

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
UMI ABF401-67-1-R 67 A-Body Kit, 1 Inch Lowering Stage 1, Red
UMI ABF401-67-1-R 67 A-Body Kit, 1 Inch Lowering Stage 1, Red
UMI ABF401-67-1-R 67 A-Body Kit, 1 Inch Lowering Stage 1, Red
X
UMI ABF401-67-1-R 67 A-Body Kit, 1 Inch Lowering Stage 1, Red
Zoomed In Image
We estimate this item will ship on or before October 15th.
Part # 185401671R
$1,229.99
set
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

MFG. Part #:
ABF401-67-1-R
Finish:
Powder Coated
Sold in Quantity:
Set
Bushing Material:
Polyurethane
Spring Rate:
530 lbs.
Front Coil Springs Included:
Yes
Rear Coil Springs Included:
Yes
Rear Leaf Springs Included:
No
Front Shock Struts Included:
Yes
Front Shock Type:
Gas-charged monotube
Rear Shock Struts Included:
Yes
Rear Shock Type:
Gas-charged monotube
Front Sway Bar Included:
Yes
Front Sway Bar Finish:
Red powdercoated
Front Sway Bar Type:
Solid
Front Sway Bar Diameter:
1.25"
Rear Sway Bar Included:
Yes
Rear Sway Bar Finish:
Red powdercoated
Rear Sway Bar Type:
Solid
Rear Sway Bar Diameter:
1"
Tie Rod Sleeves Included:
No
End Link Bushings Included:
Yes
Rear Leaf Spring Bushings Included:
No
Sway Bar Bushings Included:
Yes
Upper Trailing Arms Included:
No
Lower Trailing Arms Included:
No
Trailing Arm Mount Braces Included:
No
Panhard Bar Included:
No
Torque Arm Included:
No
Upper Control Arms Included:
No
Lower Control Arms Included:
No
Front Strut Tower Bar Included:
No
K-Member Support Brace Included:
No
Rear Strut Tower Bar Included:
No
Subframe Connectors Included:
No
Chassis Stiffener Included:
No
Calipers Included:
No
Rotors Included:
No
Brake Pads Included:
No
Brake Lines Included:
No
Wheel Studs Included:
No
Center Link Included:
No
Spindles Included:
No
Inner Tie Rod Ends Included:
No
Outer Tie Rod Ends Included:
No
Front Suspension Height:
1.0 Inch Lowered
Rear Suspension Height:
1.0 Inch Lowered
Bushing Color:
Black/Red
Progressive Rate Spring:
No

Info

The Stage 1 is perfect for the A-Body owner who wants a simple and effective suspension upgrade with real handling improvement. This kit includes our trusted 1.250” front sway bar and 1” rear sway bar combined with performance lowering springs and UMI monotube shocks. The sway bars reduce body roll and provide a nice balance when handling at the limit. UMI’s 530 lb/in front springs and 130 lb/in linear springs are precision wound from premium CrSi wire and feature medium stiffness to control body movement and reduce floating while still providing a comfortable ride. The UMI monotube shocks feature a large diameter piston and nitrogen charge to dampen bumps and provide a crisp feel without being harsh. The shock is configured with heavy-duty mounts to ensure durability and fits in the stock location. Choose UMI’s Stage 1 as a 1st step to transforming your A-Body into a capable daily driver or corner carver. Every component in this kit, as with all UMI products, is Made In USA.

Small Block and LS: Small block motors, Pontiac 400 or Big Block with aluminum heads and intake tend to sit level with this kit. Lightweight LS may require spring trimming.

Big Block Engines: An additional 1/4" front end drop may occur on vehicles with full weight big block engines.

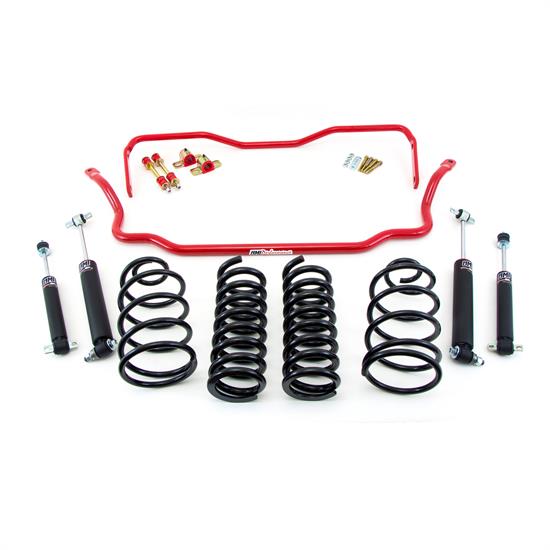

UMI’s Stage 1 Handling Kit Includes:

  • #4035-Heavy duty 1-1/4” Chromoly front sway bar with new bushings & endlinks.

  • #4034-Solid 1” heat treated Chromoly rear sway bar.

  • #4050 – 530 lb/in front springs, 130 lb/in linear rear springs. Premium CrSi construction.

  • #S42030 – Front and rear monotube shocks featuring medium compression and medium/high rebound for comfort combined with performance.

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 10 business days for UMI Performance to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
