Product Summary

1967 Buick, 1967 Chevy, 1967 Oldsmobile, 1967 Pontiac

    Key Specs

    MFG. Part #ABF401-67-1-B
    Bushing MaterialPolyurethane
    Spring Rate530 lbs.
    Front Coil Springs IncludedYes
    Rear Coil Springs IncludedYes

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    UMI Performance ABF401-67-1-B Details

    The Stage 1 is perfect for the A-Body owner who wants a simple and effective suspension upgrade with real handling improvement. This kit includes our trusted 1.250” front sway bar and 1” rear sway bar combined with performance lowering springs and UMI monotube shocks. The sway bars reduce body roll and provide a nice balance when handling at the limit. UMI’s 530 lb/in front springs and 130 lb/in linear springs are precision wound from premium CrSi wire and feature medium stiffness to control body movement and reduce floating while still providing a comfortable ride. The UMI monotube shocks feature a large diameter piston and nitrogen charge to dampen bumps and provide a crisp feel without being harsh. The shock is configured with heavy-duty mounts to ensure durability and fits in the stock location. Choose UMI’s Stage 1 as a 1st step to transforming your A-Body into a capable daily driver or corner carver. Every component in this kit, as with all UMI products, is Made In USA.

    Small Block and LS: Small block motors, Pontiac 400 or Big Block with aluminum heads and intake tend to sit level with this kit. Lightweight LS may require spring trimming.

    Big Block Engines: An additional 1/4" front end drop may occur on vehicles with full weight big block engines.

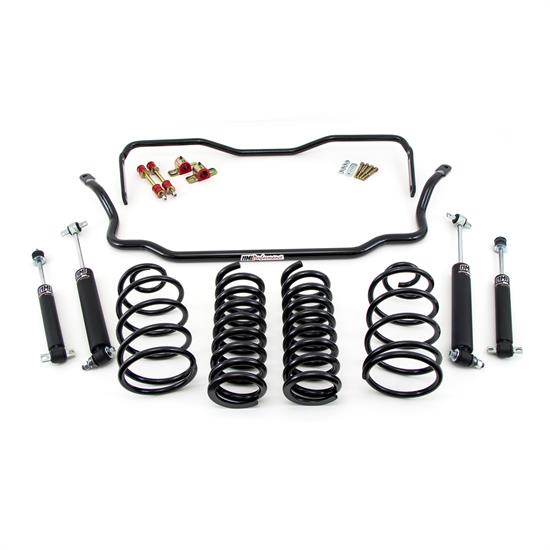

    UMI’s Stage 1 Handling Kit Includes:

    #4035 - Heavy duty 1-1/4” CrMo front sway bar with new bushings & endlinks.

    #4034 - Solid 1” heat treated CrMo rear sway bar.

    #4050 – 530 lb/in front springs, 130 lb/in linear rear springs. Premium CrSi construction.

    #S42030 – Front and rear monotube shocks featuring medium compression and medium/high rebound for comfort combined with performance.

    UMI Performance ABF401-67-1-B Specifications

    MFG. Part #ABF401-67-1-B
    BrandUMI Performance
    Bushing MaterialPolyurethane
    Spring Rate530 lbs.
    Front Coil Springs IncludedYes
    Rear Coil Springs IncludedYes
    Rear Leaf Springs IncludedNo
    Front Shock Struts IncludedYes
    Front Shock TypeGas-charged monotube
    Rear Shock Struts IncludedYes
    Rear Shock TypeGas-charged monotube
    Front Sway Bar IncludedYes
    Front Sway Bar FinishPowder Coated
    Front Sway Bar TypeSolid
    Front Sway Bar Diameter1.25"
    Rear Sway Bar IncludedYes
    Rear Sway Bar FinishBlack powdercoated
    Rear Sway Bar TypeSolid
    Rear Sway Bar Diameter1"
    Tie Rod Sleeves IncludedNo
    End Link Bushings IncludedYes
    Rear Leaf Spring Bushings IncludedNo
    Sway Bar Bushings IncludedYes
    Upper Trailing Arms IncludedNo
    Lower Trailing Arms IncludedNo
    Trailing Arm Mount Braces IncludedNo
    Panhard Bar IncludedNo
    Torque Arm IncludedNo
    Upper Control Arms IncludedNo
    Lower Control Arms IncludedNo
    Front Strut Tower Bar IncludedNo
    K-Member Support Brace IncludedNo
    Rear Strut Tower Bar IncludedNo
    Subframe Connectors IncludedNo
    Chassis Stiffener IncludedNo
    Calipers IncludedNo
    Rotors IncludedNo
    Brake Pads IncludedNo
    Brake Lines IncludedNo
    Wheel Studs IncludedNo
    Center Link IncludedNo
    Spindles IncludedNo
    Inner Tie Rod Ends IncludedNo
    Outer Tie Rod Ends IncludedNo
    Front Suspension Height1.0 Inch Lowered
    Rear Suspension Height1 Inch Lowered
    Bushing ColorBlack/Red
    Progressive Rate SpringNo
    FinishPowder Coated
    Sold in QuantitySet
