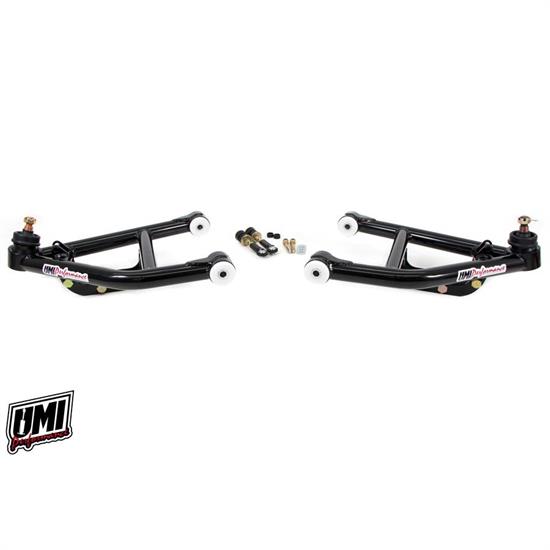

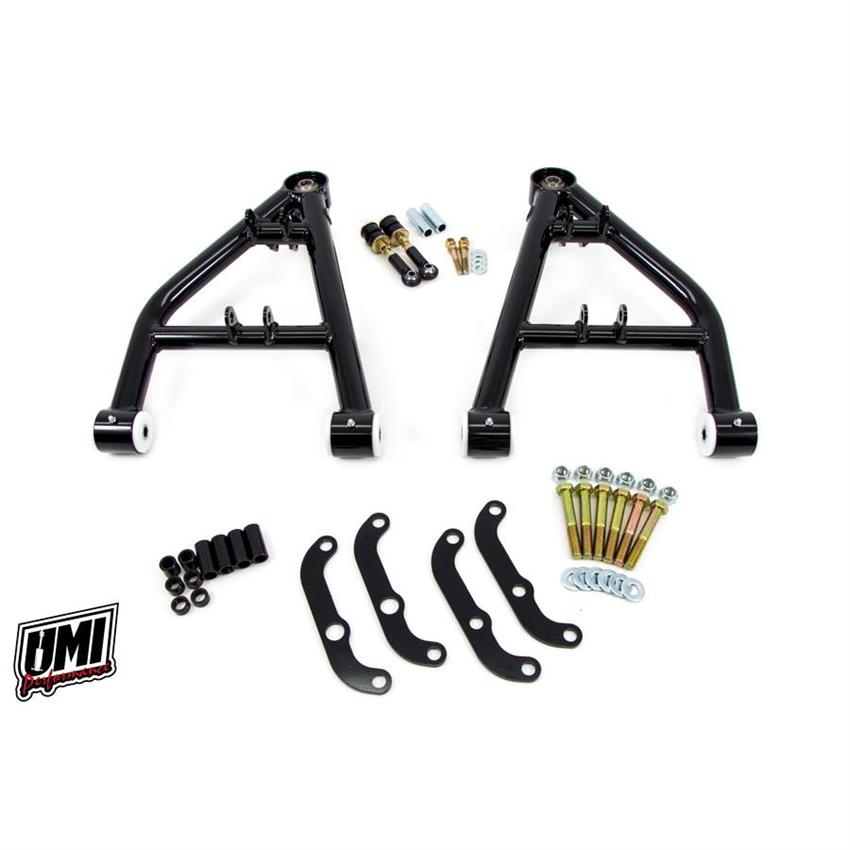

UMI 4062-1-B 64-72 A-Body Corner Max Lower Front A-Arms, Black

UMI’s Corner Max line of race a-arms are designed from the ground up to be the best performing stock mount a-arm upgrade on the market. The P/N 4062-1 arms are strong yet lightweight and feature a removable lower mounting system to permit spring or shock changes at the track without separating the ball joints. The ball joint cup is moved forward the proper amount to add up to 4 degrees caster potential and is loaded with high quality Howe plus 3/4” tall ball joints. The double shear coilover mount accepts race industry standard ½” rod end shocks and comes with spacers for all popular models. Also included is a double shear sway bar mount and corresponding end link. The end link fits UMI P/N 4035 and 4067 as well as many other factory fit sway bars.

Features:

• Direct bolt-in for 1964-1972 GM A-Body.

• Camber curve and roll center height improved to yield incredible front end grip.

• Coilover-only design saves weight over spring bucket versions.

• Pair with UMI P/N 4056 for the ultimate handling package.

• Lower ball joint relocated to increase caster by up to 4 degrees.

• 10 degrees caster can be achieved when paired with 2656-1.

• These arms enhance steering feel and straight line stability.

• 1.500” USA Made DOM steel tubing construction.

• Premium Howe
• 3/4” tall ball joints installed.

• Includes Delrin bushings for smooth suspension travel and decreased deflection.

• Swivel style sway bar mounts and hardware work with UMI P/N 4035, 4067 and most other factory eyelet style sway bars.

• 100% Manufactured and raced with pride out of Philipsburg, PA – USA.

• Contact UMI technical support with any questions

BUICK
Gran Sport 1965 - 1967
GS 1970 - 1972
GS 455 1970 - 1972
Skylark 1964 - 1972
Special 1964 - 1969
Sportwagon 1964 - 1969
CHEVY
Chevelle 1964 - 1972
El Camino 1964 - 1972
Malibu 1964 - 1967
OLDSMOBILE
Cutlass 1964 - 1972
Vista Cruiser 1964 - 1972
PONTIAC
GTO 1964 - 1972
Tempest 1964 - 1970

Installation Instructions (PDF)
