Add to Cart
$449.99
UMI 4047-300-R 64-72 A-Body 1 Inch Rear Sway Bar, 3 Axle Tube
UMI 4047-300-R 64-72 A-Body 1 Inch Rear Sway Bar, 3 Axle Tube

UMI 4047-300-R 64-72 A-Body 1 Inch Rear Sway Bar, 3 Axle Tube

Rear Position, Polyurethane Bushing Material, Red, Hardware Included, 3" Tube O.D., Steel

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
UMI 4047-300-R 64-72 A-Body 1 Inch Rear Sway Bar, 3 Axle Tube
UMI 4047-300-R 64-72 A-Body 1 Inch Rear Sway Bar, 3 Axle Tube
UMI 4047-300-R 64-72 A-Body 1 Inch Rear Sway Bar, 3 Axle Tube
UMI 4047-300-R 64-72 A-Body 1 Inch Rear Sway Bar, 3 Axle Tube
UMI 4047-300-R 64-72 A-Body 1 Inch Rear Sway Bar, 3 Axle Tube
UMI 4047-300-R 64-72 A-Body 1 Inch Rear Sway Bar, 3 Axle Tube
UMI 4047-300-R 64-72 A-Body 1 Inch Rear Sway Bar, 3 Axle Tube
UMI 4047-300-R 64-72 A-Body 1 Inch Rear Sway Bar, 3 Axle Tube
X
UMI 4047-300-R 64-72 A-Body 1 Inch Rear Sway Bar, 3 Axle Tube
UMI 4047-300-R 64-72 A-Body 1 Inch Rear Sway Bar, 3 Axle Tube
UMI 4047-300-R 64-72 A-Body 1 Inch Rear Sway Bar, 3 Axle Tube
UMI 4047-300-R 64-72 A-Body 1 Inch Rear Sway Bar, 3 Axle Tube
UMI 4047-300-R 64-72 A-Body 1 Inch Rear Sway Bar, 3 Axle Tube
UMI 4047-300-R 64-72 A-Body 1 Inch Rear Sway Bar, 3 Axle Tube
Zoomed In Image
We estimate this item will ship on or before October 13th.
Part # 1854047300R
$449.99
set
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Position:
Rear
Bushing Material:
Polyurethane
Color:
Red
Hardware Included:
Yes
Tube O.D.:
3"
Material Type:
Steel
Finish:
Powder Coated
Adjustability:
3-position
Rear Sway Bar Type:
Hollow
Rear Sway Bar Diameter:
1"
MFG. Part #:
4047-300-R
Sold in Quantity:
Set

Info

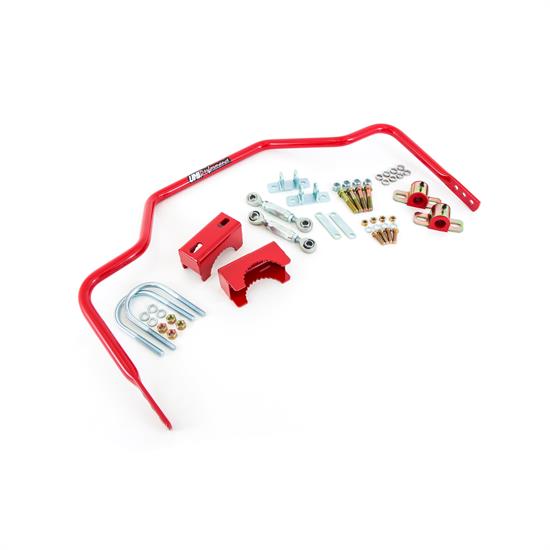

UMI's A-body Pro-Tour style bar is a true multi purpose high performance rear sway bar. The chassis and differential housing mounts reduce bind normally associated with the factory style bars. The bars are 1" diameter hollow and feature three different rates (street/auto-x, road race/strip). UMI's tried and true CNC machined clamping system allows differential housing mounting on 2.75", 3" and 3.25" diameter housings. These can be bolted on, or welded for additional security. The double shear chassis mounts are held in place by four 3/8" fasteners. Drilling through the crossmember is required and a template /instructions are included. The house made hex adjuster allows pre-loading of the bar when used for drag applications so your car leaves straight. Choose the longest hole for street, middle hole for auto-x, road race and the shortest hole for drag use.

Features:

  • Light weight 1” tubular sway bar, CNC bent

  • Designed to clear all rear ends
  • 10-Bolt, 12-Bolt, 9”, M9, S60 and others

  • Heavy duty race style Chromoly spherical rod ends with Teflon race

  • High strength 4140 Chromoly zinc-plated u-bolts

  • CNC machined sway bar mounts with grip teeth and reinforcement gussets

  • 1” Billet steel hex adjuster for extreme strength

  • Premium greaseable polyurethane bushings

  • 100% bolt in installation!

  • Durable long lasting powder coat

Axle Tube Diameters:

Factory rear end, Strange Engineering and Currie rear ends use 3” diameter axle tubes

Moser Engineering 12-bolt rear ends use 3” diameter axle tubes

Moser Engineering 9” rear ends manufactured after early 2002 use 3” axle tubes. Rear ends manufactured prior to early 2002 use 3.25” axle tubes. Please verify diameter before ordering.

Other brand rear ends will vary, please check your axle tube diameter before ordering.

Charts

Installation Instructions (PDF)

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 10 business days for UMI Performance to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
