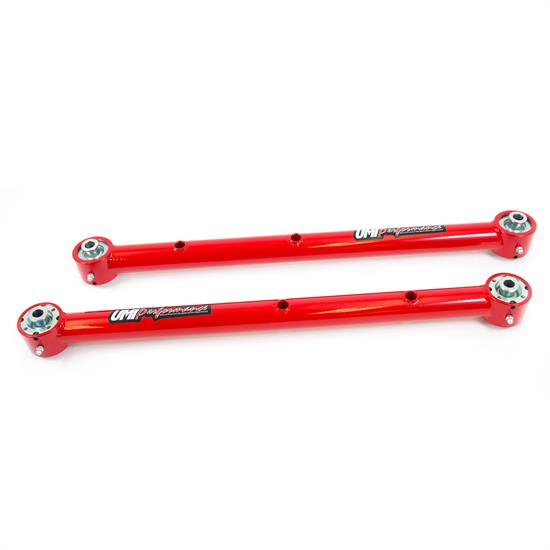

UMI 4040-R 64-72 A-Body Rear Lower Control Arms Roto-Joint, Red
UMI 4040-R 64-72 A-Body Rear Lower Control Arms Roto-Joint, Red

UMI 4040-R 64-72 A-Body Rear Lower Control Arms Roto-Joint, Red

Rear Lower Position, Tubular Control Arm Style, Steel

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
UMI 4040-R 64-72 A-Body Rear Lower Control Arms Roto-Joint, Red
UMI 4040-R 64-72 A-Body Rear Lower Control Arms Roto-Joint, Red
UMI 4040-R 64-72 A-Body Rear Lower Control Arms Roto-Joint, Red
X
UMI 4040-R 64-72 A-Body Rear Lower Control Arms Roto-Joint, Red
Zoomed In Image
We estimate this item will ship on or before October 13th.
Part # 1854040R
$299.99
set
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Position:
Rear Lower
Control Arm Style:
Tubular
Material Type:
Steel
Adjustable:
No
Bushing Material:
Spherical Bearing/Delrin
Ball Joint Included:
No
Bushing Included:
Yes
Hardware Included:
No
Finish:
Powder Coated
Color:
Red
MFG. Part #:
4040-R
Sold in Quantity:
Set

Info

UMI's tubular lower control arms utilize our Roto-Joint technology for a bind free performance and quiet comfortable ride quality. The Roto-Joint design is a pivot ball lined with a greaseable delrin race designed to offer 28 degrees of total unrestricted movement, more than adequate for a bind free, low friction operation. The Roto-Joint design improves performance over the factory rubber and aftermarket polyurethane bushings by allowing the suspension to articulate correctly, and provide precision handling. The installed UMI Roto-Joint allows rear end free movement when high handling, auto cross or road race is a concern while still being a 100% streetable setup. The installed delrin race, which lines the spherical ball, absorbs shock and road noise for a quiet and smooth operation on any street or track driven vehicle. This control arm set features Roto-Joints on both sides of the control arms. This is designed for maximum performance and suspension travel. Both control arms feature the correct provisions for adding a stock or aftermarket sway bar. Sway bar holes are reinforced with a 0.120" wall thickness steel sleeve that TIG welded and sanded into place. All Roto-Joints are greaseable and low maintenance making an excellent street setup for your cruiser or race car!

Features:

  • Constructed of 1.500" x 0.120" DOM mild steel tubing

  • Spherical Roto-Joints installed

  • Delrin race offers low deflection for improved traction

  • Fully TIG welded

  • Reinforced sway bar holes

  • Shipped fully assembled and ready to install

  • Uses OEM hardware

  • Brilliant and durable powder coat finish

Charts

Installation Instructions (PDF)

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 10 business days for UMI Performance to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
