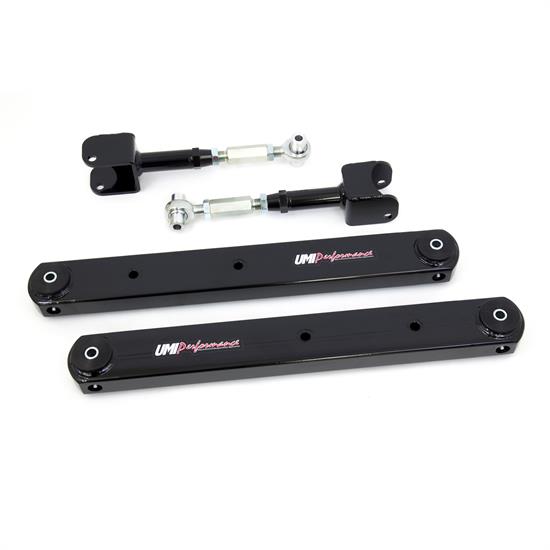

UMI 402119-B 64-67 A-Body Rear Adj. Upper, Boxed Lower Arms,Black
Rear Upper and Lower Position, Tubular and Boxed Control Arm Style, Steel
UMI’s rear control arm kit is a bulletproof addition to your car. Suitable for street, strip or corner carving, this kit minimizes suspension deflection for a crisp handling setup and less wheel hop. Kit includes UMI’s premium fully boxed lower control arms designed to offer a factory look while still providing enhanced performance to the vehicle. The fully boxed lower control arms are built from larger 3” x 1-1/2” rectangular tubing and feature CNC machined radius ends and reinforced sway bar holes. Boxed control arms include fully capped radius ends to prevent debris from entering to arm while offering the factory look to your classic. The heavy duty upper control arms feature on car adjustment using heavy duty Chromoly adjusters and Telfon lined rod ends. The premium rod ends work as a solid bushing control arm with suspension articulation, designed for harder launches and less friction. Upper control arms feature heavy duty ¼” thick laser cut mounting pads designed to work on all rear end housings. UMI’s control arms are CNC machined for accuracy and assembled with high quality greaseable polyurethane bushings.
1/8” wall mild steel tubing
Fully boxed design uses nicely capped ends to maintain factory look
CNC machined for accuracy and consistency
MIG welded heavy duty bushing holders
Chromoly and zinc plated heavy duty on car adjuster
Heavy duty ¾” Chromoly Teflon lined rod ends
CNC laser cut ¼” upper mounting pad
Greaseable polyurethane bushings with zinc plated steel sleeves
Durable and long lasting powder coat finish
Made in Philipsburg, PA – USA
Installation: Item installs in approximately 2 hours using basic hand tools.
- This item ships directly from the manufacturer. It may take an additional 10 business days for UMI Performance to ship this item.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
